Flap Barrier Turnstile Gate Access Control System

Flap Barrier Turnstile Gate Access Control System

Outdoor Flap Barrier Turnstile

Flap Barrier Turnstile Gate Access Control

Flap Barrier Access Control System

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC; ISO

Model Number:

AG-PX21122803

Contact Us

Request A Quote
Product Details
Product Name:
Outdoor Flap Barrier Gate Turnstile
Payment & Shipping Terms
Payment Terms
T/T, L/C
Product Description

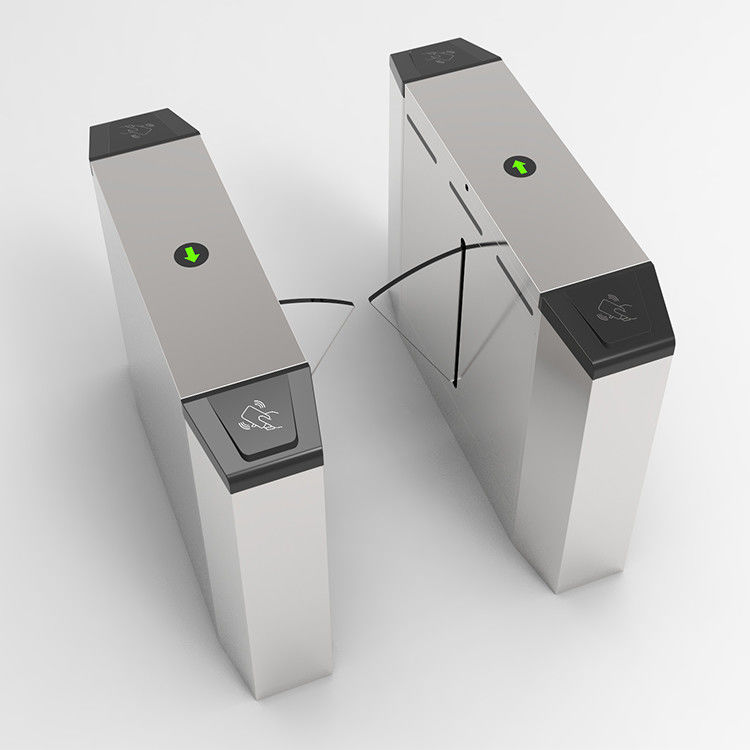

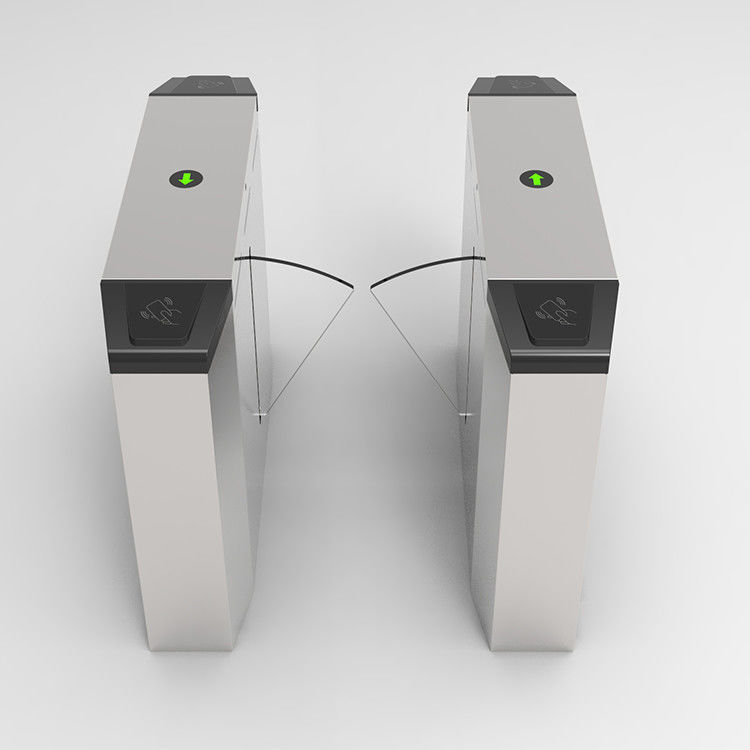

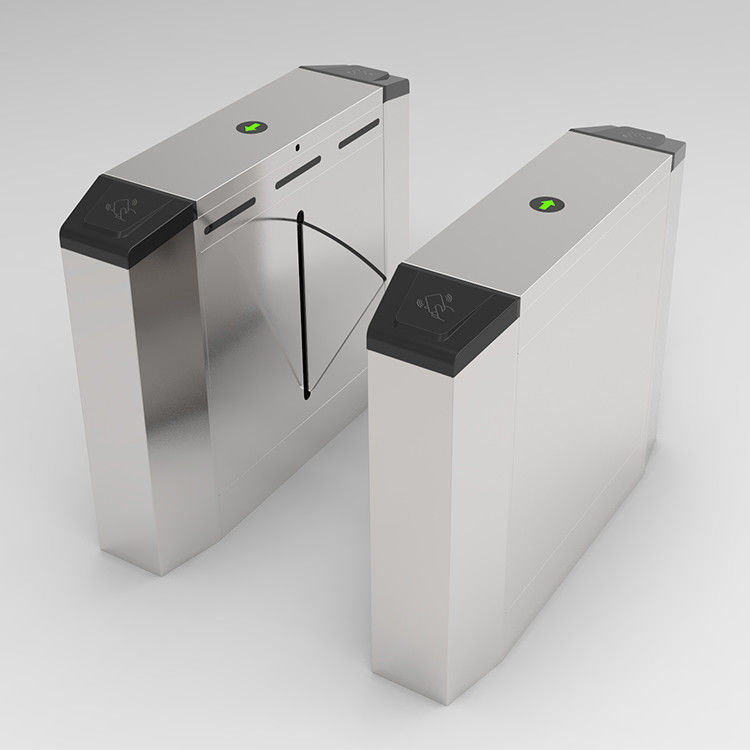

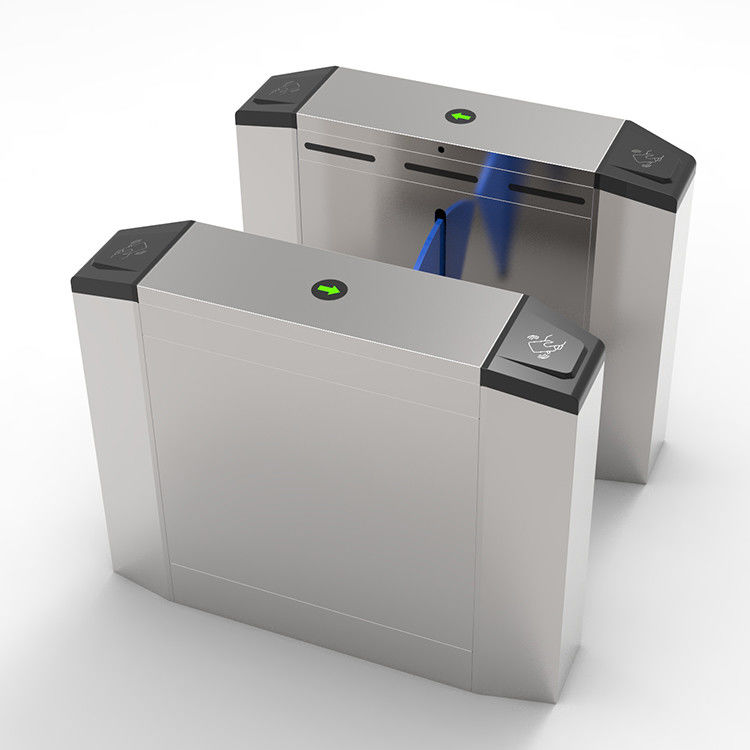

AG-PX21122803 Flap Barrier Turnstile Gate Access Control For Indoor And Outdoor



Model AG-PX21122803 is HPT’s best price flap barrier gate. The large sales volume of this model makes its cost the best. It is an adaptive model which can be used both indoor and outdoor. Because of the simple but sturdy turnstile structure and uncomplicated surface treatment, it can be used in harsh environment stably and long. It is weatherproof structure and its appearance will almost never hurt by scratching or minor bumping. The turnstile flap barriers were decorated with LEDs to indicate people‘s passing status and give instinct instruction even working at night. It also has a buzzer to remind people the violation of the passing authorization. It is an economical, useful and beautiful model for entrance management.

                              Flap Barrier Turnstile Gate Access Control System 0

Specification

Specification
Product Size 1200*280*960mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550MM
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor optional
Mechanism Half Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
LED Single/ Triple color LED (optional)
Acoustic Alarm Buzzer Alarm (optional)



Flap Barrier Turnstile Gate Access Control System 1



Functionality

1. When this flap barrier gate is turned on, it performs a fault self-check and sounds a

2. At the main control panel, the operating state of the flap gate can be preset.

3. It features an anti-pinch feature. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.

4. The flap barrier turnstile gate has an audible and visual alarm. When the gate is in the standby state, the LED is blue; when people pass through the gate, it is green; and when people try to enter the gate passage without permission, the LED turns red and the buzzer in the gate beeps to alert people of the authorization violation.

5. The gate is also "Anti-Collision": If something slams into it too forcefully, the driving engine will shut off and attempt to defend itself from the impact's damage.

6. Different channels' data for turnstiles is synchronized.

7. If the visitor does not pass within the allotted time, the system will automatically terminate the visitor's access permit. By default, the system returns the gate to "waiting for open" status after 6 seconds, but users can change this time by adjusting the "waiting duration."

8. When power-off and power-on, the turnstile will automatically open and close.

9. The flap barrier gate can be connected to several readers, including facial recognition, RFID, and fingerprint readers.

10. Accessing for entry and exit can be controlled in either a single direction or a two-way route.

Flap Barrier Turnstile Gate Access Control System 2

Flap Barrier Turnstile Gate Access Control System 3



Customization Available

We may also alter the gate's settings or design to suit various conditions in order to make our gate better suited to your projects. You can get in touch with our sales team at any time.
