Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
AG-TX28161502
Contact Us

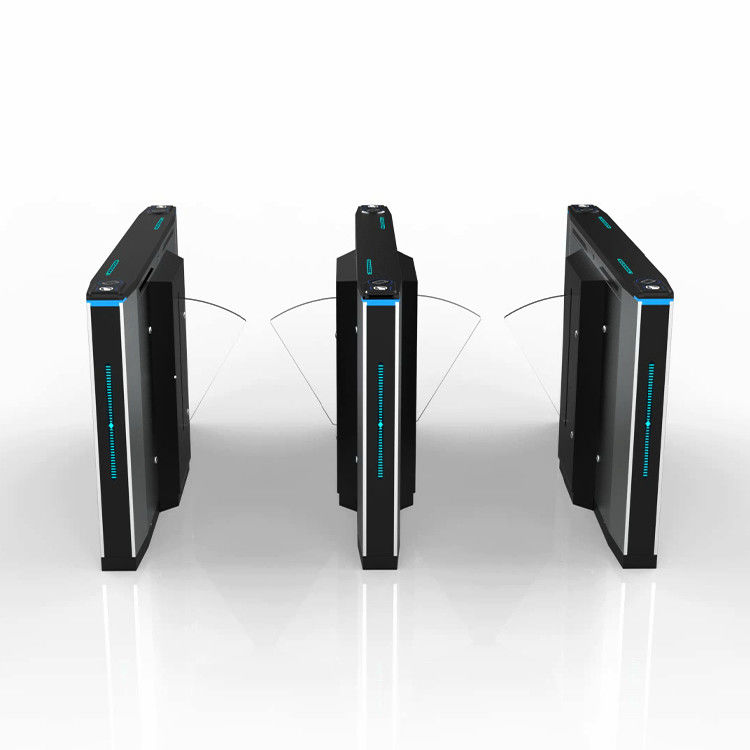

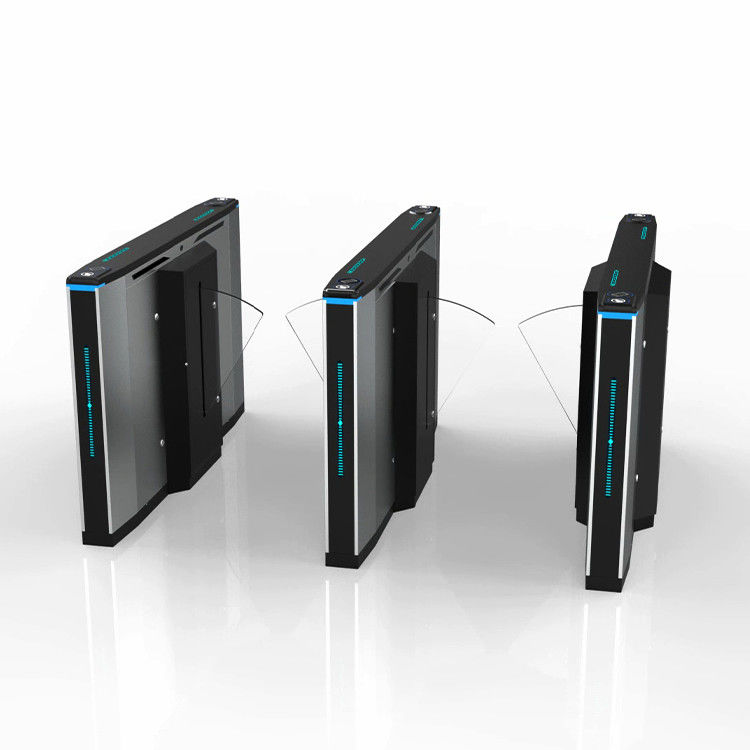

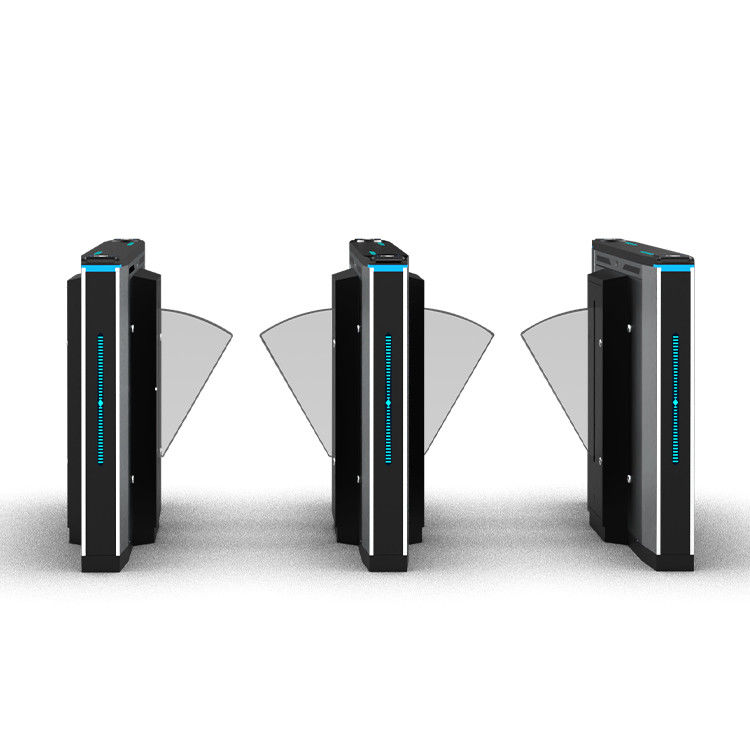

AG-TX28161502 Brushless DC Motor Biometric Turnstile Flap Barrier Gate for Office Buidling
Product Video, please find in this youtube link: https://youtu.be/j_j--7dJ3fE
Product Description
The Sirius turnstile gate is one of HPT Technologies' most innovative and eye-catching products. High-end flap barrier gate of this series is model AG-TX28161502. The HPT Sirius flap barrier gate features a longer, thinner body than traditional flap barrier turnstiles, giving it a more delicate and contemporary appearance. The flap barrier gate turnstile is equipped with bright LEDs, which improve its aesthetic appeal both during the day and at night and send a clear status indication. The turnstile gate's surface features numerous distinct color schemes, which complicates the design. That is beautiful, creative, and different.
Specification
| Product Size | 1600*300*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 550mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30~35p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 4.2A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Full Height Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. Upon opening, the flap barrier gate looks for flaws automatically and sounds an alarm if any are discovered.
2. The operational condition of the flap gate can be predetermined at the main control panel.
3. A stop-pinching feature is available. To protect both the users and the gate itself, the gate will open automatically as the turnstile arms are about to close.
4. There is an audible and visible alarm on the flap barrier turnstile gate. The gate's LED is blue when it is in standby mode. A green light emerges from it when someone steps on it. The gate turns red when someone tries to open it without authorization. The gate bell beeps to notify people of the authorization violation.
5. The gate also features "Anti-Collision" technology, allowing the driving motor to halt and make an effort to defend itself if something slams into it too forcefully.
6. A number of channels are used to synchronize the data from the turnstiles.
7. The system will automatically revoke the visitor's access permission if they do not pass within the specified period, and it will by default return to the "waiting for open" status after 6 seconds. The "waiting period" parameter allows the user to choose the amount of time they wish to wait until the gate reopens.
8. The turnstile will automatically open and close each time the power is turned on and off.
9. It functions with a variety of readers, including RFID, fingerprint, and facial recognition readers.
10. A walkway may be one way or two ways in order to restrict entry and exit.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
