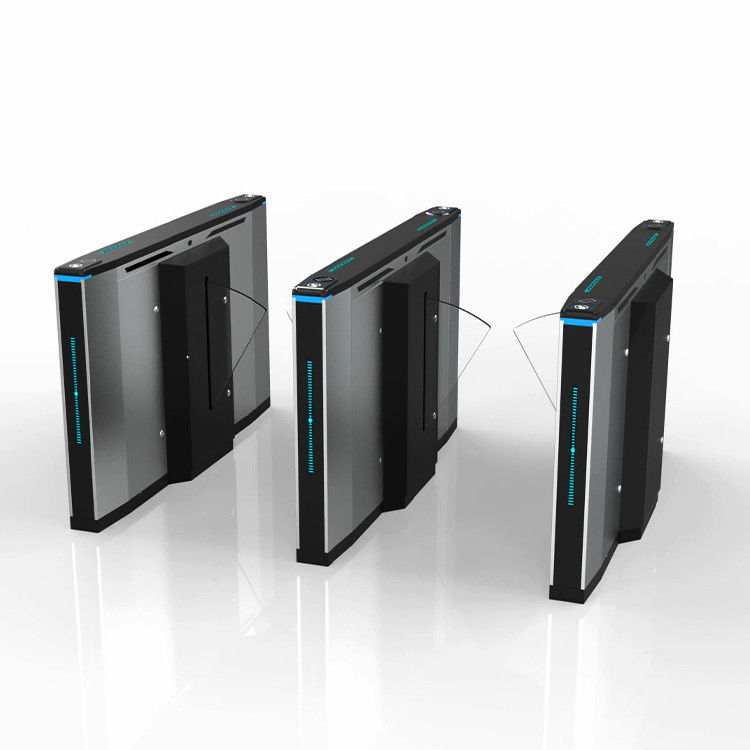

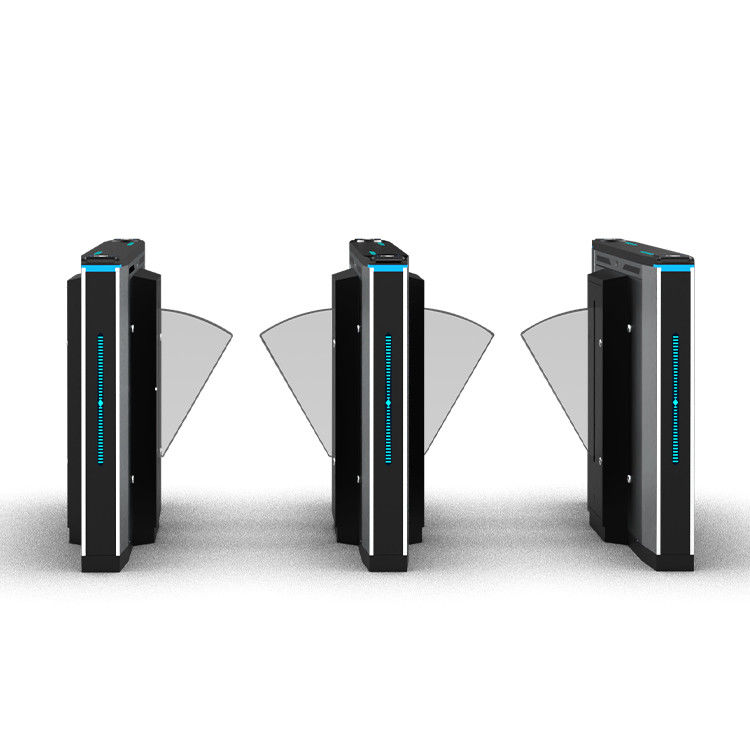

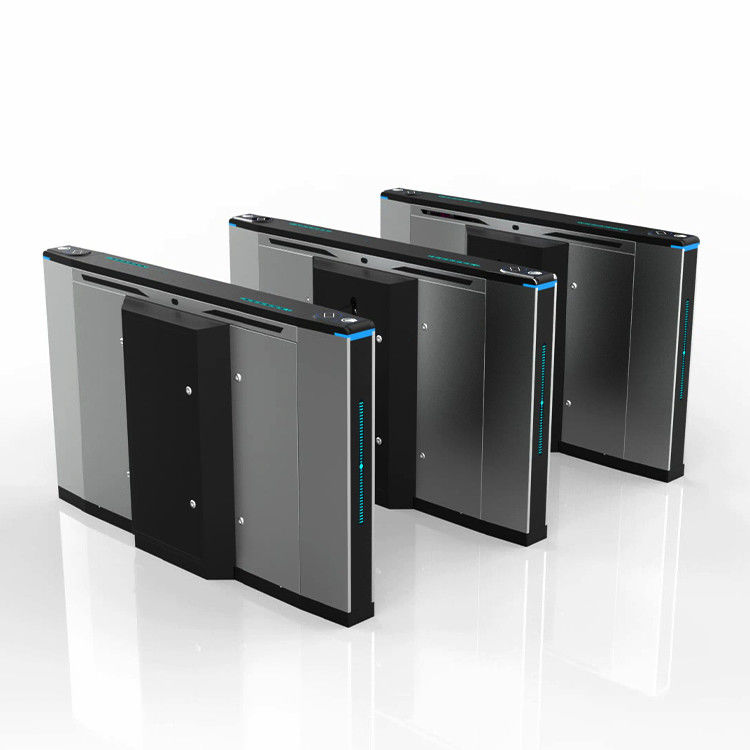

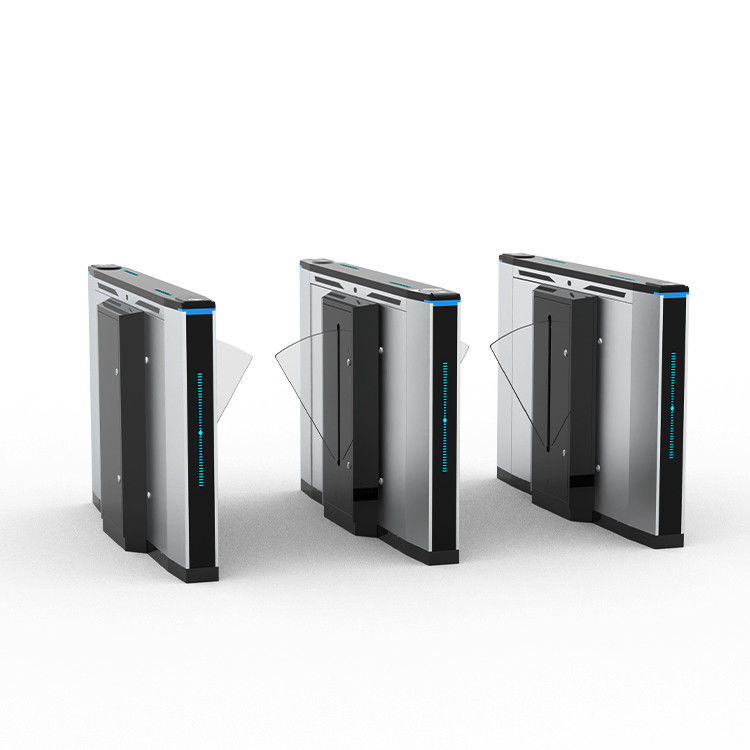

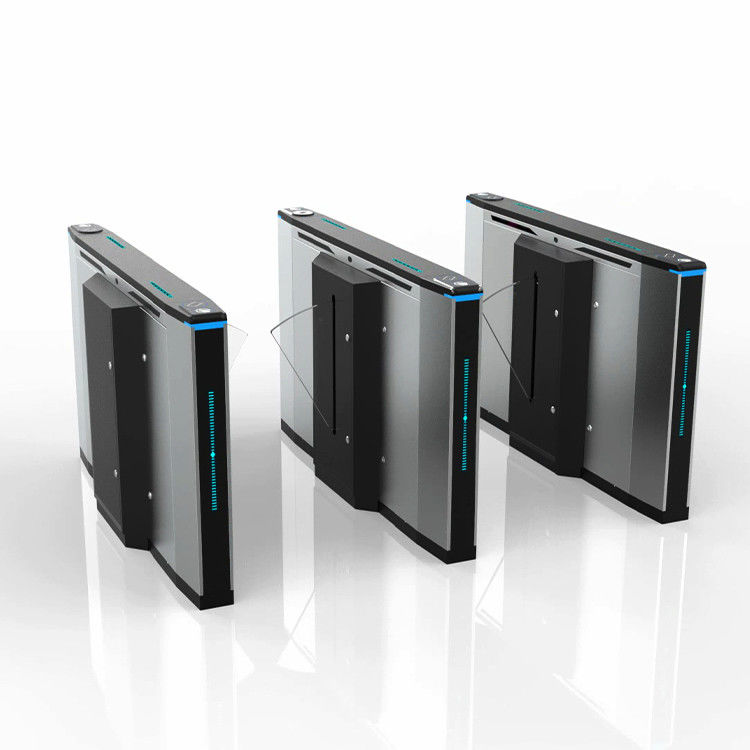

AG-TX28161502 Compact Design ESD Turnstile Anti-Static Retractable Flap Barrier For Museum
Product Video, please find in this youtube link: https://youtu.be/j_j--7dJ3fE
Product Description
One of HPT Technologies' most recent and attractive high-end flap barrier gate is the turnstile gate from Sirius series -- model AG-TX28161502. The HPT Sirius flap barrier gate has a longer, thinner body compared to traditional flap barrier turnstiles, giving it a more delicate and contemporary appearance. A clear status indicator is provided by the flap barrier gate turnstile's use of colorful LEDs, which also improves the gate's aesthetic appeal day and night. The turnstile gate's surface uses numerous different color schemes, which complicates its design. It is novel, cutting-edge, and exquisite.
Specification
| Product Size | 1600*300*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 550mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30~35p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 4.2A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Full Height Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. When activated, this flap barrier gate performs a fault self-check; if any problems are found, a warning siren is emitted.
2. At the main control panel, the operating state of the flap gate can be predetermined.
3. It has a function to stop pinching. To safeguard people and the gate itself, the gate will automatically reopen if the turnstile arms come into contact with something as they are ready to close.
4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone passes through it, it turns green. When someone tries to enter the gate passageway without permission, it turns red. To alert people of the authorization violation, the buzzer in the gate beeps.
5. The gate also incorporates "Anti-Collision" technology, which enables the driving motor to cut off and attempt to prevent itself from damage if something slams into it too hard.
6. Data for turnstiles is synchronized across many channels.
7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. Users can select the "waiting duration" parameter to control the gate's reopening time.
8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.
9. It can be connected to a variety of readers, including readers for RFID, fingerprint, and facial recognition.
10. To control access for entry and exit, a pathway may be either one-way or two-way.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
