Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
AG-TX28161502
Contact Us

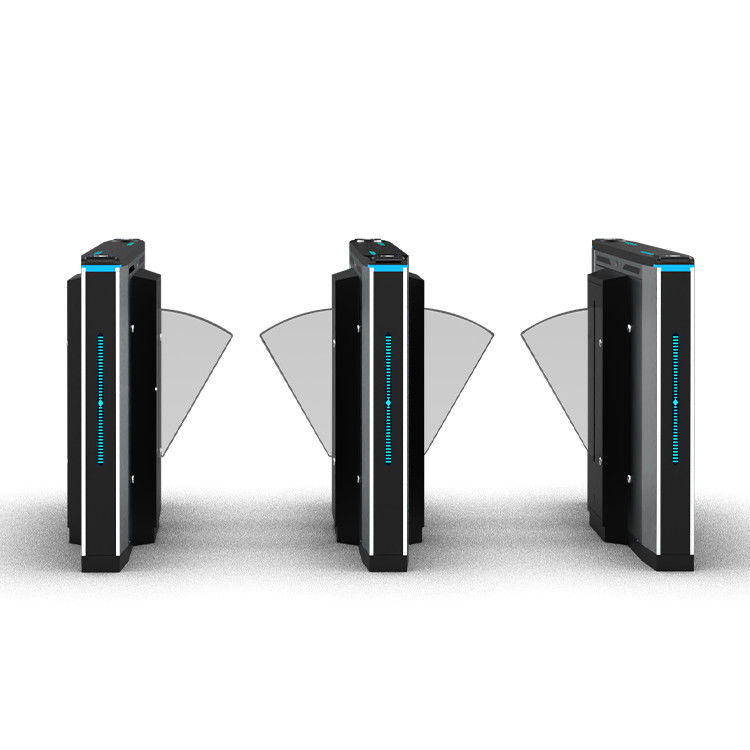

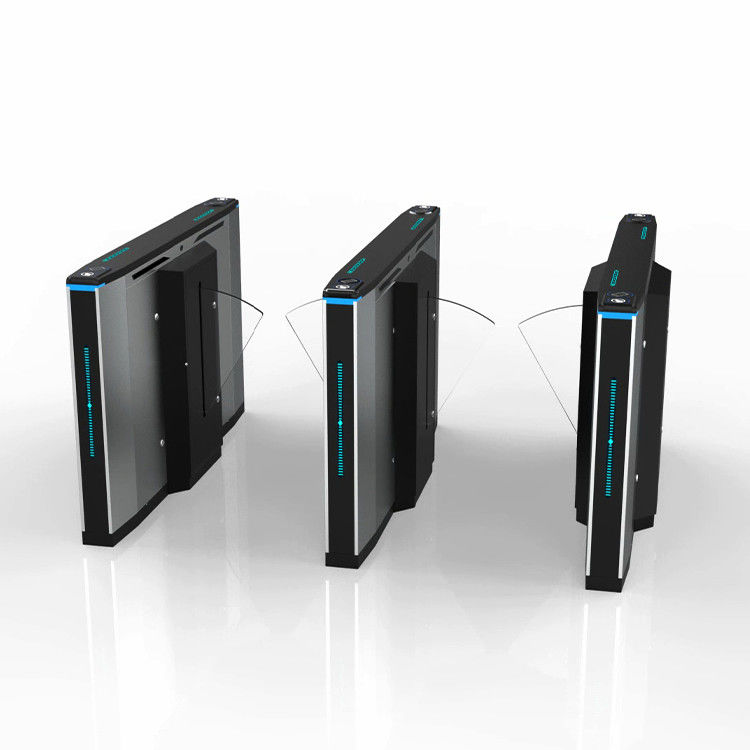

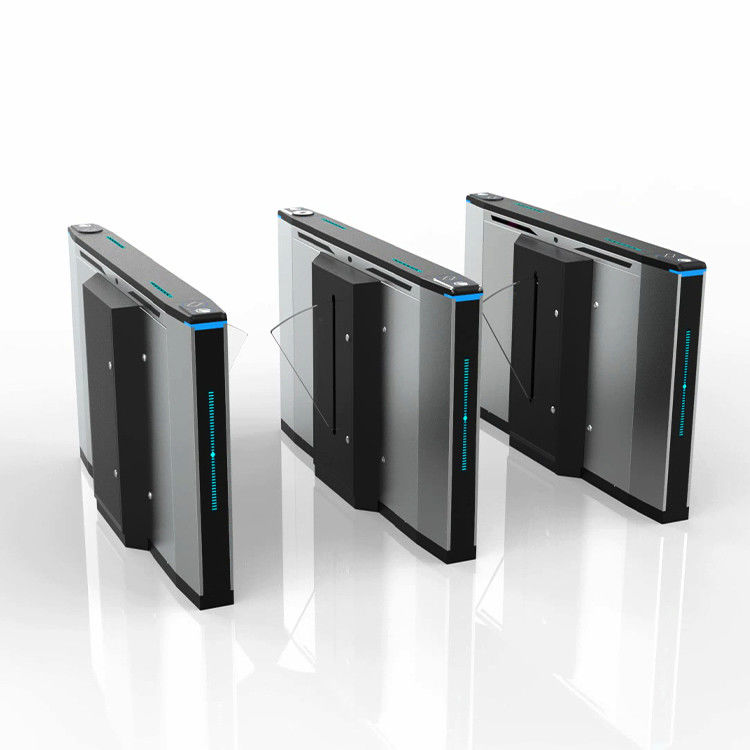

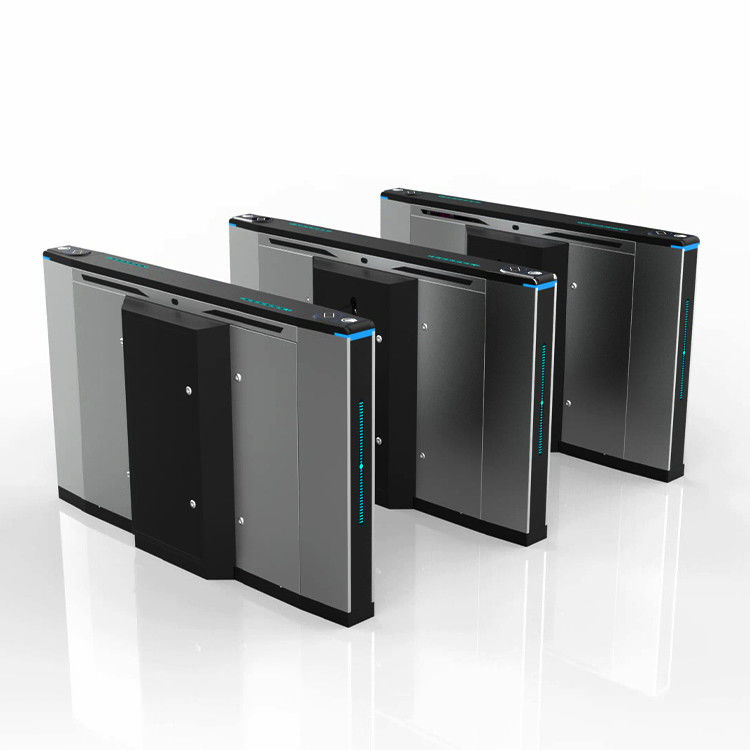

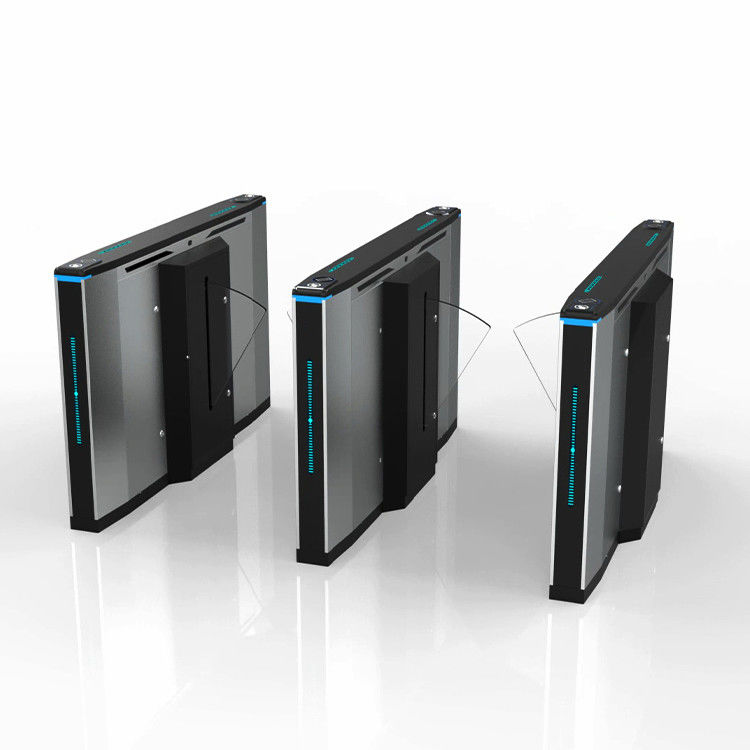

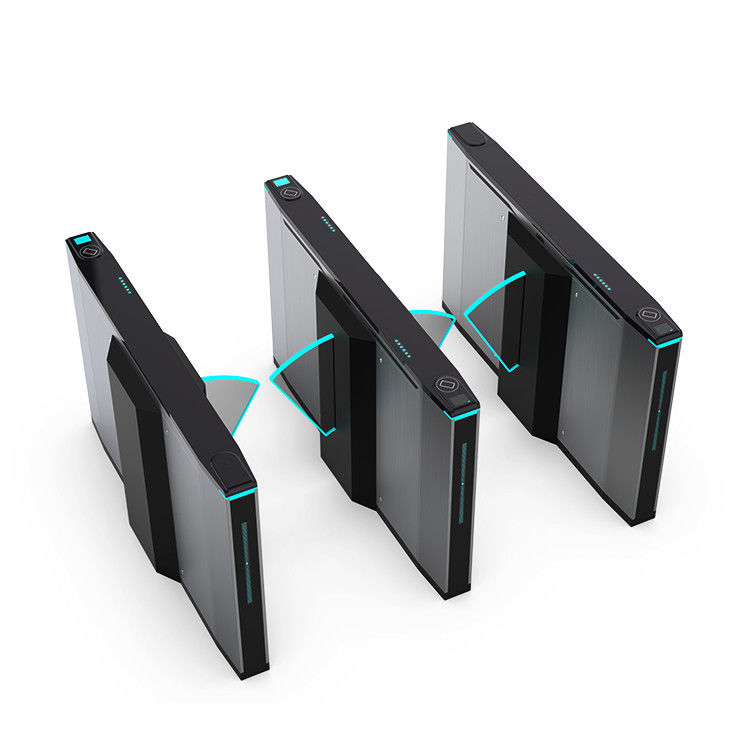

AG-TX28161502 Security Turnstile China Factory Speed Turnstile Gate Flap Gate
Product Video, please find in this youtube link: https://youtu.be/j_j--7dJ3fE
Product Description
One of HPT Technologies' most cutting-edge and striking products is the Sirius turnstile gate. Model AG-TX28161502 of this series is a high-end flap barrier gate. In comparison to conventional flap barrier turnstiles, the HPT Sirius flap barrier gate has a longer, thinner body, giving it a more delicate and modern appearance. The inclusion of vivid LEDs in the flap barrier gate turnstile enhances its aesthetic appeal both during the day and at night and provides a clear status signal. The surface of the turnstile gate has a variety of distinctive color schemes, which makes the design more difficult. It is exquisite, cutting-edge, and creative.
Specification
| Product Size | 1600*300*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 550mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30~35p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 4.2A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Full Height Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. When activated, its flap barrier gate performs a fault self-check; if any problems are found, a warning siren is released.
2. At the main control panel, the operating state of the flap gate can be predetermined.
3. There is a stop-pinching function. As the turnstile arms are about to close, the gate will automatically open again to safeguard both the passengers and the gate itself.
4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. As someone walks over it, it illuminates green. When someone tries to use the gate route without permission, it lights red. To alert people to the authorization violation, the gate's buzzer beeps.
5. The gate also features "Anti-Collision" technology, allowing the driving motor to halt and attempt to preserve itself if something slams into it too hard.
6. Data from the turnstiles is synchronised through a number of channels.
7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. Users can specify the amount of time they wish to wait for the gate to reopen using the "waiting duration" parameter.
8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.
9. It can be connected to a variety of readers, including readers for facial, fingerprint, and RFID technology.
10. To control access for entry and leave, a pathway may be one way or two ways.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
