SUS304 Stainless Steel Sliding Barrier Gate Turnstile Custom With Buzzer Alarm

SUS304 Stainless Steel Sliding Barrier Gate Turnstile Custom With Buzzer Alarm

SUS304 Sliding Barrier Gate

Stainless Steel Sliding Barrier Gate

Stainless Steel Turnstile Custom

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Office, Hotel, Library, Metro Station, Ect.
Passage Width:
Single Core Turnsitle 72kg/dual Core Turnstile 87kg
SUS304 Stainless Steel
Payment & Shipping Terms
Product Description

AG-TX28161502 SUS 304 Stainless Steel Flap Turnstile Gate Turnstile Entrance Gates With Buzzer Alarm



Product Video, please find in this youtube link:


Product Description

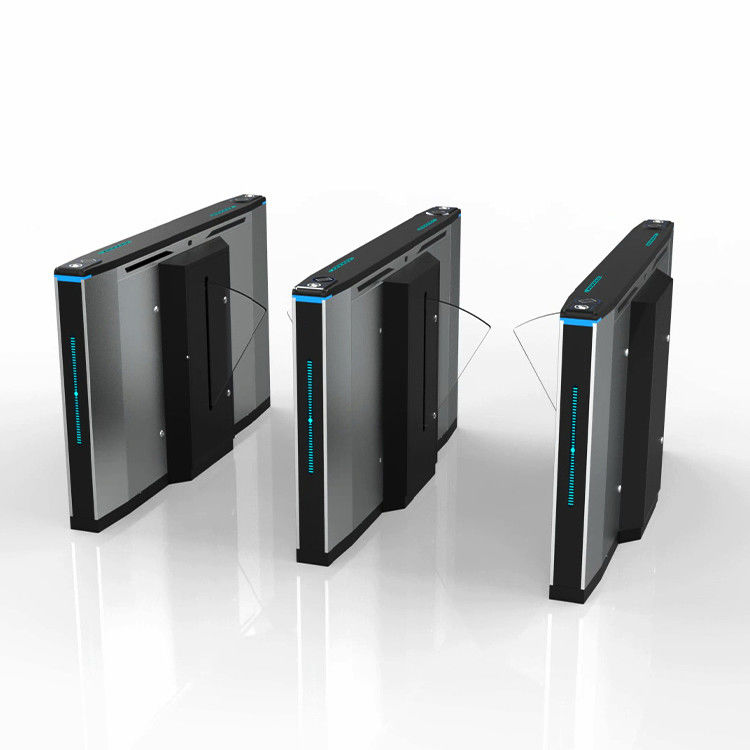

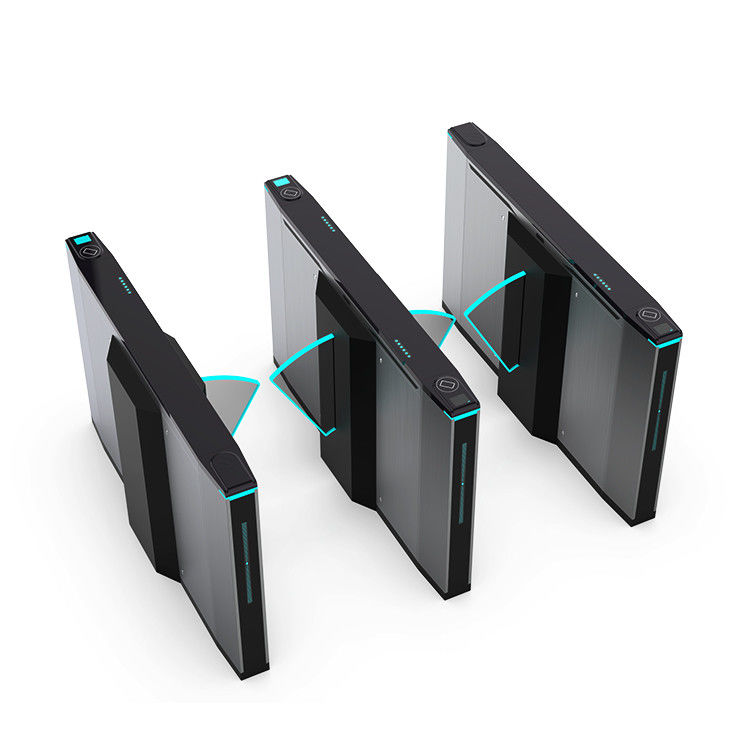

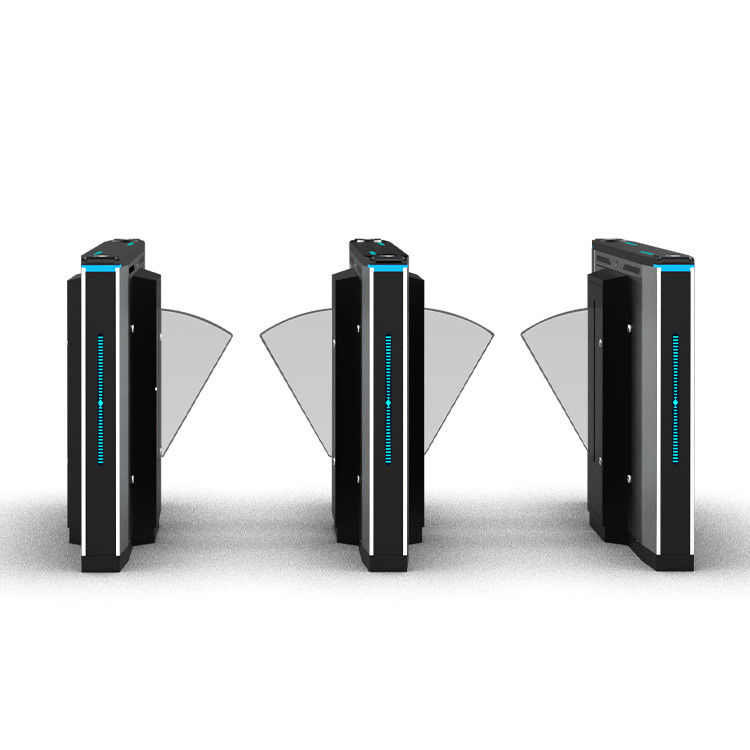

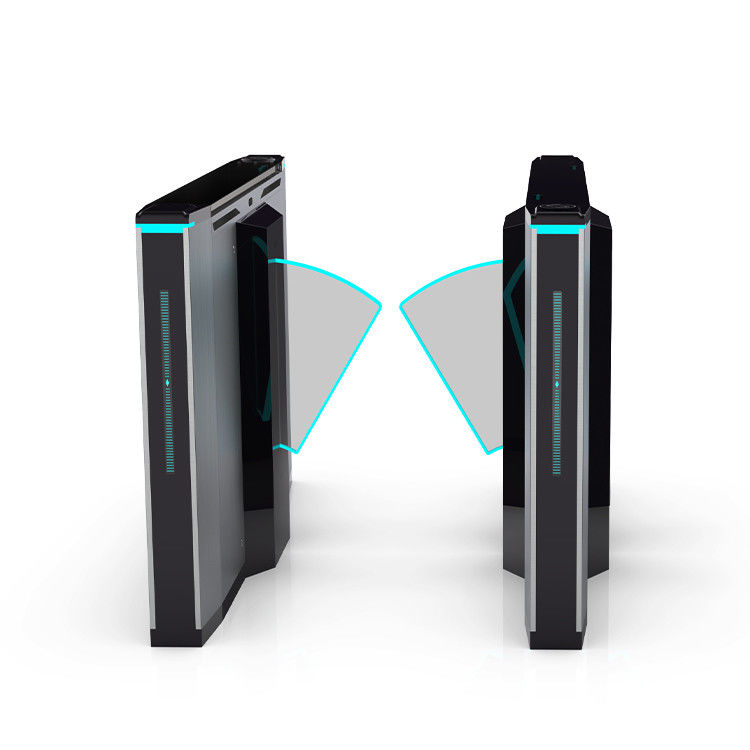

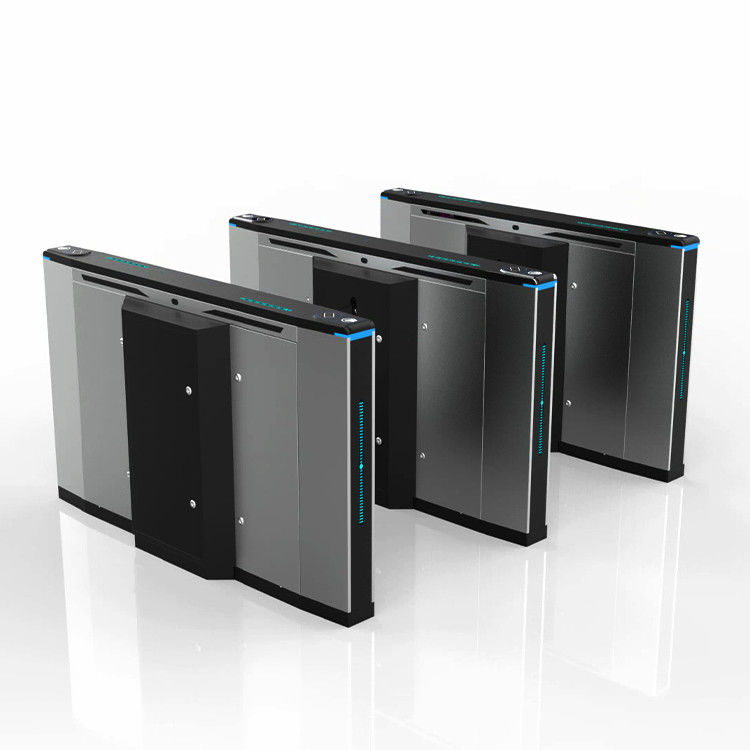

The Sirius turnstile gate is one of HPT Technologies' most innovative and eye-catching products. High-end flap barrier gate of this series is model AG-TX28161502. The HPT Sirius flap barrier gate features a longer, thinner body than traditional flap barrier turnstiles, giving it a more delicate and contemporary appearance. The flap barrier gate turnstile has vibrant LEDs built into it, which improves its aesthetic appeal during the day and at night and sends out a clear status indication. The turnstile gate's surface features a number of diverse color schemes, which makes the design more challenging. It is beautiful, innovative, and original.

SUS304 Stainless Steel Sliding Barrier Gate Turnstile Custom With Buzzer Alarm 0



Product Size 1600*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 550mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Full Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



1. The flap barrier gate checks for errors when it is opened and sounds a warning siren if any are found.

2. At the main control panel, the operating state of the flap gate can be predetermined.

3. There is a stop-pinching feature. When the turnstile arms are about to close, the gate will automatically open to safeguard the travelers as well as the gate itself.

4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone treads on it, green light comes out of it. When someone tries to use the gate route without permission, it flashes red. To alert persons of the authorization violation, the bell on the gate beeps.

5. The gate also incorporates "Anti-Collision" technology, allowing the driving motor to halt and attempt self-defense in the event that something slams into it too violently.

6. The data from the turnstiles is synchronized using a variety of channels.

7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. The user can choose the amount of time they wish to wait before the gate reopens using the "waiting duration" parameter.

8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.

9. It can be connected to a variety of readers, including those that make use of RFID, facial recognition, and fingerprint recognition.

10. In order to limit entry and leave, a walkway may be one way or two ways.


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.



SUS304 Stainless Steel Sliding Barrier Gate Turnstile Custom With Buzzer Alarm 1

SUS304 Stainless Steel Sliding Barrier Gate Turnstile Custom With Buzzer Alarm 2
