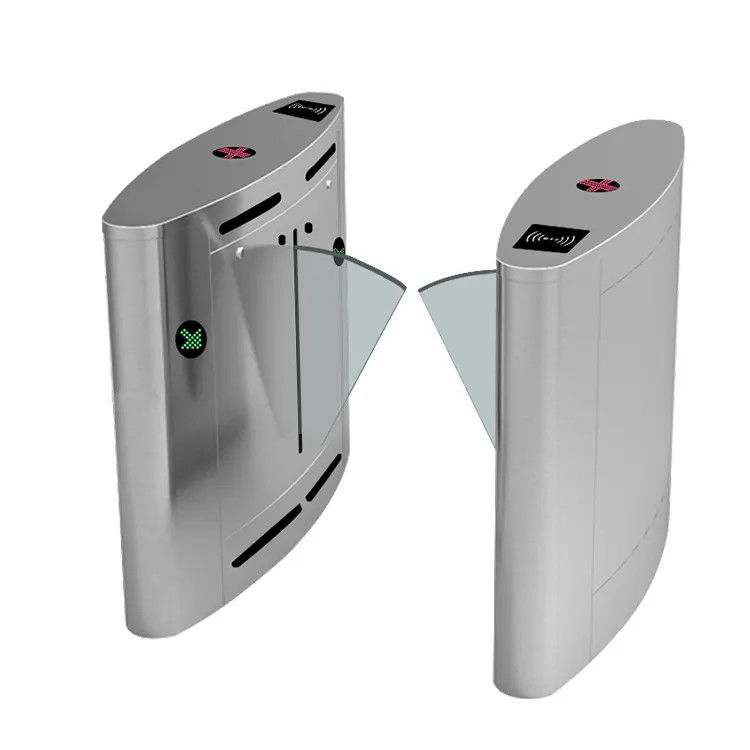

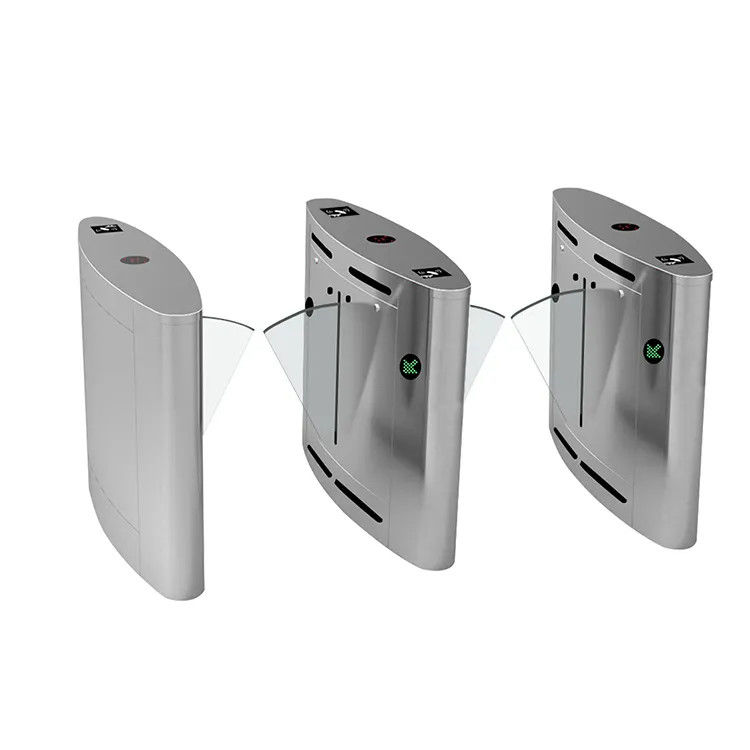

Pedestrian Flap Barrier Turnstile 0.2S Reaction Single Directional / Bi Directional

Pedestrian Flap Barrier Turnstile 0.2S Reaction Single Directional / Bi Directional

Pedestrian Flap Barrier Turnstile

Flap Barrier Turnstile 0.2S

ISO Bi Directional Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Flap Barrier Gate
Power Supply:
Indoor / Outdoor
1 Year
Payment & Shipping Terms
Product Description

AG-HX27123002 Flap Barrier Turnstile Stadium Turnstile Entry Systems


Product Description

Our state-of-the-art flap barrier gate AG-HX27123002 offers unparalleled security for high-end establishments. Made with the finest materials and advanced technology, this flap barrier gate is the ideal choice for any residential or commercial property that demands top-tier security.


Crafted with precision engineering, this flap barrier turnstile features a heavy-duty motor that can withstand frequent use and the toughest weather conditions. The gate arm is made of corrosion-resistant aluminum, ensuring durability and longevity.


Our advanced flap barrier gate turnstile comes equipped with cutting-edge safety features that guarantee protection for both pedestrians and vehicles. The barrier arm automatically stops and reverses if it encounters any obstruction, providing enhanced safety for passersby.


This top-of-the-line flap barrier gate also includes a variety of high-tech features such as intelligent control systems, remote operation options, and real-time monitoring capabilities. With a customized interface and advanced programming, you can easily manage and optimize the security of your property.


With its sleek and modern design, this barrier gate is not only an effective security solution but also an elegant addition to any property. Perfect for high-end residential communities, luxury resorts, and commercial centers, it provides a sophisticated security solution that is both discreet and effective.


Overall, the Premium flap barrier gate provides the ultimate solution for high-end security needs. Durable, safe, and elegant, it is the perfect choice for properties that demand the best in security technology.

Pedestrian Flap Barrier Turnstile 0.2S Reaction Single Directional / Bi Directional 0


Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

Pedestrian Flap Barrier Turnstile 0.2S Reaction Single Directional / Bi Directional 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
