Automatic Flap Barrier Turnstile Gate Manufacturers SUS304 For Indoor / Outdoor

Automatic Flap Barrier Turnstile Gate Manufacturers SUS304 For Indoor / Outdoor

Automatic Flap Barrier Turnstile

SUS304 Flap Barrier Turnstile

Barrier Turnstile Gate Manufacturers

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Flap Barrier Gate
Power Supply:
Indoor / Outdoor
1 Year
Payment & Shipping Terms
Product Description

AG-HX27123002 Flap Gate Barrier Automatic Flap Barrier with Sound and LED Alarm


Product Description

Our cutting-edge barrier gate AG-HX27123002 provides unmatched security for upscale establishments. This barrier gate is the best option for any home or business property that requires the highest level of protection because it was made with the best materials and cutting-edge technologies.


This flap barrier was built with careful engineering, and it has a powerful motor that can survive rough weather and frequent use. The gate arm's corrosion-resistant aluminum construction ensures its sturdiness and lifespan.


Our innovative flap gate comes equipped with cutting-edge safety features that offer protection for both pedestrians and cars. For increased safety for onlookers, the barrier arm automatically stops and reverses if it runs into any obstructions.


High-tech features including sophisticated control systems, remote operation possibilities, and real-time monitoring capabilities are also included in this top-of-the-line barrier gate. You may efficiently manage and enhance the security of your property with a customizable interface and cutting-edge programming.


This flap gate barrier's sleek and contemporary form makes it not only an attractive addition to any property but also an efficient security measure. It offers a sophisticated security solution that is both covert and efficient, making it ideal for upscale residential communities, five-star resorts, and business hubs.


Overall, the premium barrier gate flap turnstile is the best option for sophisticated security requirements. That is a great way to save money.

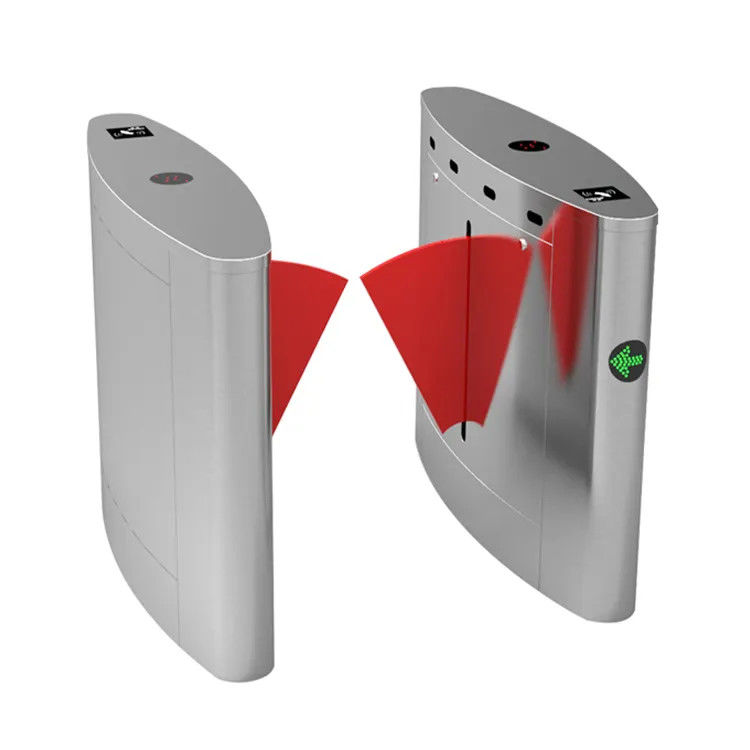

Automatic Flap Barrier Turnstile Gate Manufacturers SUS304 For Indoor / Outdoor 0


Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

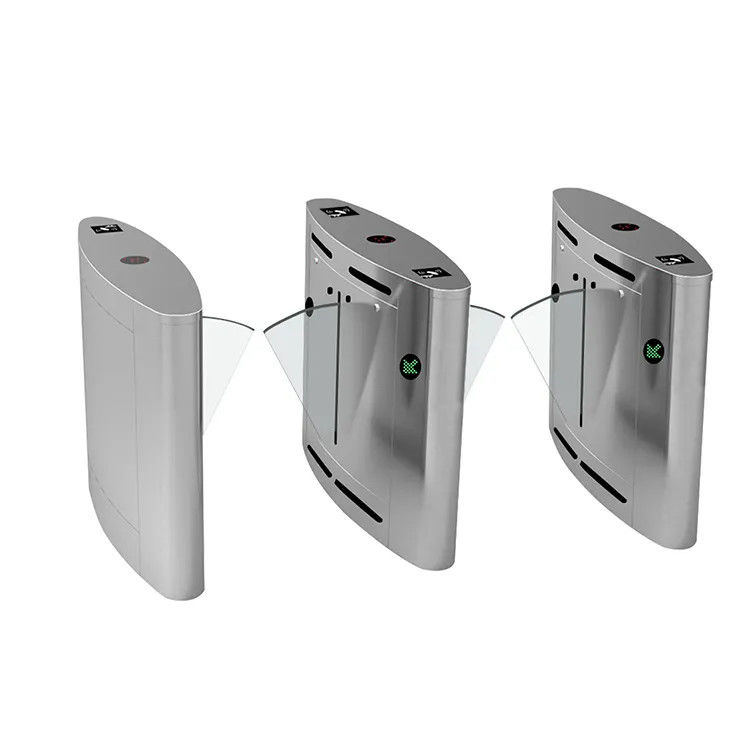

Automatic Flap Barrier Turnstile Gate Manufacturers SUS304 For Indoor / Outdoor 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
