AG-PX13423302 Triple Turnstile Community Turnstile Security Systems For access control

AG-PX13423302 Triple Turnstile Community Turnstile Security Systems For access control

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Semi-automatic Tripod Turnstile
Working Environment:
-20-70 Degree
Power Supply:
Passage Width:
RS485 TCP/IP, RS232, RS232/485
Pass Speed:
20~30 P/M
Payment & Shipping Terms
Product Description

AG-PX13423302 Semi Automatic Tripod Turnsitle Vertical Tripod Turnsitle For Trian Station

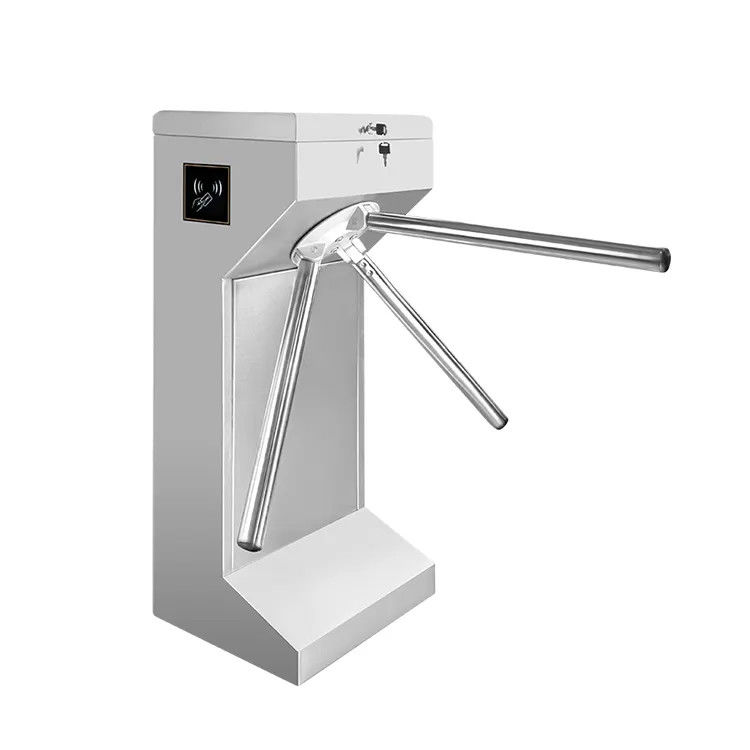

AG-PX13423302 The AG-PX11122806 is a high-quality tripod turnstile designed for use in high-traffic areas such as public buildings, sports centers, and stations. The unit features a robust, compact design that offers reliable and stable access control for your facility.


AG-PX13423302 Triple Turnstile Community Turnstile Security Systems For access control 0



Product Size 420*330*980mm
Material SUS 304 stainless steel
Material Thickness Top:1.2mm+body1.0mm
Throughput Rate 30p/m
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Power Input AC110~220V±10%
Working Temperature ·-20~+70
Driving Mode Semi-auto
Indication LED direction indication



- Durable tripod arm design for maximum stability and functionality

- Adjustable arms for easy integration with different access control systems

- Fast and smooth operation to minimize waiting time for users

- Reversible arms for bi-directional access

- LED indicator lights to show status of the device

- Anti-tailgating and anti-passback technology to prevent unauthorized entry

- Safety features such as anti-pinch and anti-panic functions for user protection



1) The entire system runs smoothly with small noise and little mechanical impact.

4) It has failure self-detect function.

5) Single-directional/bidirectional (Entering/Exiting) accessing optional.

6) Turnstile arms automatic fall down : the turnstile barriers will fall down when power is off, and need to install back manually when power on.

7) It has anti-trailing function: Only one person with authorization can pass each time. if someone is trailing, the arms will automatically lock.

8) The tripod turnstile also “anti-reversal”: turnstile barrier will stop when someone tried to pass the turnstile from a false direction.

9) It is anti-collision: After the tripods forcefully open, you can pull the three arms to the original position by hand or swipe card or power off, then the arms can return to the original position, and the operation is very convenient.

10)The tripod gate turnstile has a unified, standard interfaces which connect to a variety of readers and devices to receive relay signal to integrate with access control systems.

11)The tripod turnstile also has different operation modes: It can be connected to control signal or button or remote control to achieve single-way or double-way control. “two-way limited access”, “one-way limited access”. The working mode can be set on control board.



AG-PX13423302 Triple Turnstile Community Turnstile Security Systems For access control 1


Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
