30p/M- 35p/M High Speed Security Gates , Half Height Turnstile Subway Station

30p/M- 35p/M High Speed Security Gates , Half Height Turnstile Subway Station

30p/M High Speed Security Gates

35p/M High Speed Security Gates

Half Height Turnstile Subway Station

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Flap Barrier Gate
Power Supply:
Indoor / Outdoor
1 Year
Payment & Shipping Terms
Product Description

304 Stainless Steel Access Control Turnstile Half Height Turnstile With Flap Barrier


Product Description

Introducing our latest innovation, the flap barrier gate system AG-HX27123002! This revolutionary product is designed to provide you with the ultimate solution for your security needs. Our flap barrier gates are crafted with top-quality materials, including strong and durable metal frames, and are available in various styles and designs to match any aesthetic preference.


Our flap barriers are easy to operate with different access control systems. Our gate system is built with an intelligent technology that provides you with the highest level of security and peace of mind, thanks to its advanced sensors and continuous monitoring capabilities.


Our flap gate system is perfect for both commercial and residential properties, and it's designed to withstand any weather condition, making it a reliable and long lasting security solution. Our skilled and experienced team of technicians will help you with the installation and maintenance of your gate system providing you with quality products and exceptional customer service.


Invest in the ultimate security solution with our  flap barrier gate, and enjoy the peace of mind that comes with knowing your property is safe and secure. Get in touch with us today, and take the first step to safeguarding your precious assets with our flap barrier system.

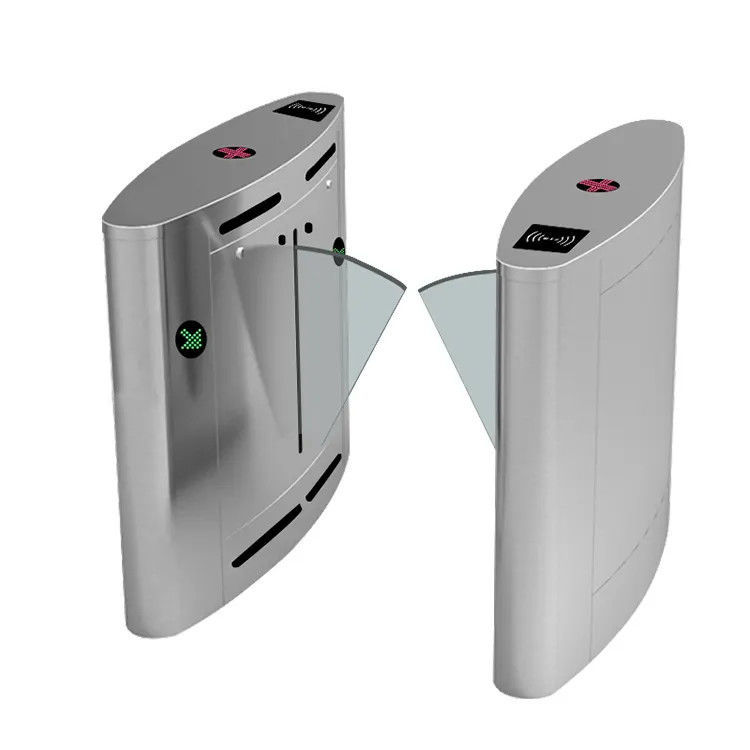

30p/M- 35p/M High Speed Security Gates , Half Height Turnstile Subway Station 0


Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

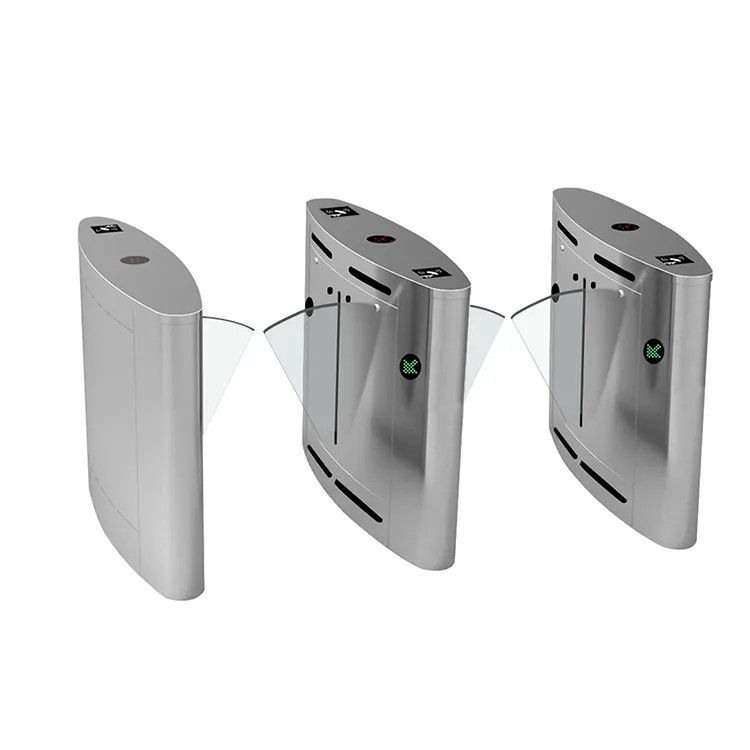

30p/M- 35p/M High Speed Security Gates , Half Height Turnstile Subway Station 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
