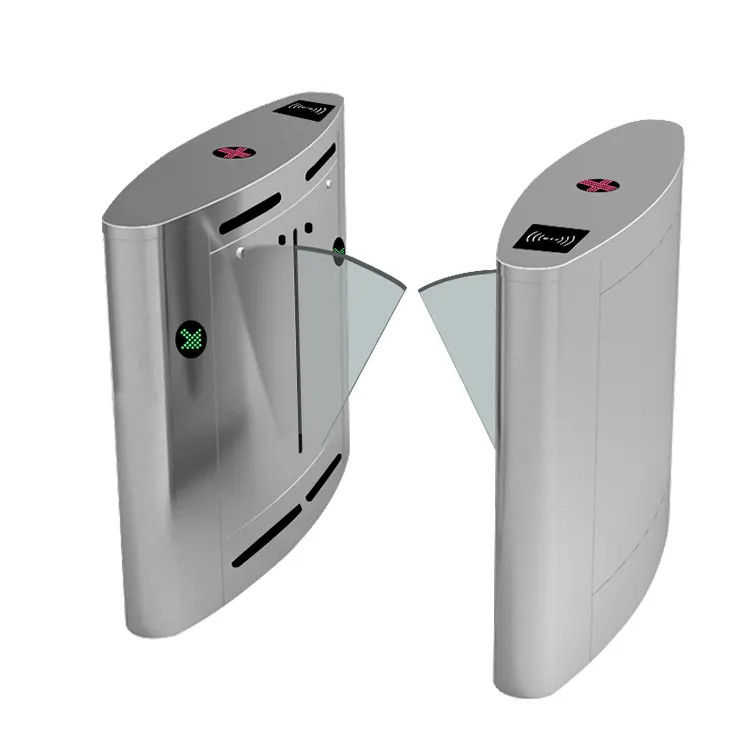

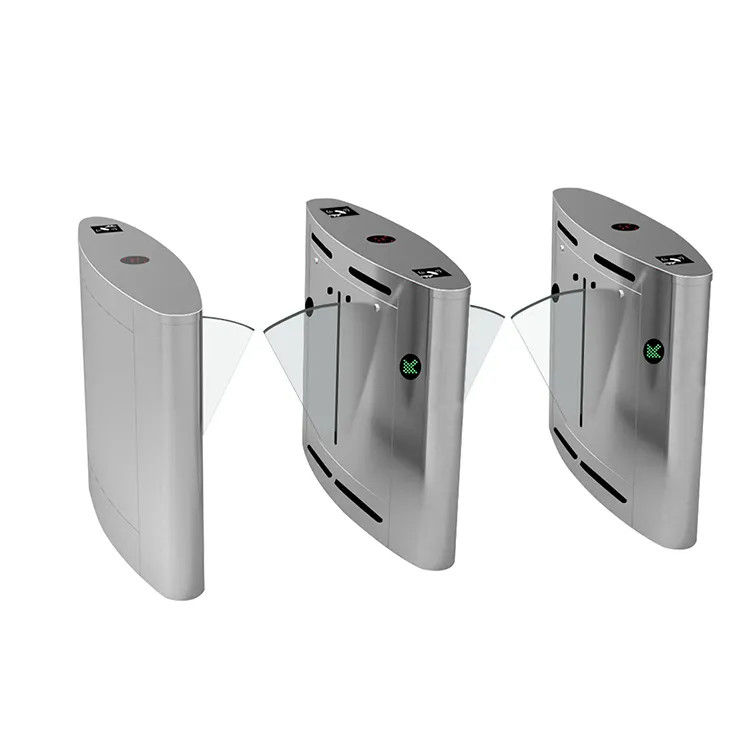

Flap Wing Turnstile Gate Motorized Turnstile Pedestrian Flap Barrier With Dry Contact
Product Description
This turnstile AG-HX27123002 is designed with both security and convenience in mind, providing reliable access control in high-traffic areas. The sliding gate mechanism offers a smooth and sleek entry and exit point, creating a seamless flow of foot traffic.
Made from durable, high-quality materials and built with precision engineering, our flap gate turnstile ensures low-maintenance, long-lasting performance. It can also be integrated with a wide range of access control systems, including card readers, biometric readers, and turnstile status lights.
Our flap barrier gate turnstile is perfect for a wide range of applications, including office buildings, schools and universities, stadiums, and transportation hubs. Its sleek design and unbeatable security features make it an ideal choice for any organization looking to enhance their access control capabilities.
Don't settle for less when it comes to the safety and security of your organization. Choose our flap barrier gate turnstile for reliable, efficient, and convenient access control.
Specification
| Specification | |
| Product Size | 1200*300*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 550mm |
| Sensor | 3 pairs of active infrared intrusion detector |
| Throughput Rate | 30~35p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Half Hight Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.
2. The operation status of the flap gate can be programmed at the main control panel.
3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.
4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.
5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.
6. The data of turnstiles in different channels is synchronized.
7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..
8. The turnstile will automatically open after power-off and close automatically after power-on.
9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.
10. Single direction or two-way direction control of accessing for entry and exit is available.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
