Automatic Flap Barrier Turnstile 30p/M - 35p/M 1200*300*980mm

Automatic Flap Barrier Turnstile 30p/M - 35p/M 1200*300*980mm

Automatic Flap Barrier Turnstile

Flap Barrier Turnstile 30p/M

35p/M Automatic Turnstile Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Flap Barrier Gate
Indoor / Outdoor
1 Year
Power Supply:
Communication Interface:
Dry Contact/RS485/RS232
Payment & Shipping Terms
Product Description

Turnstile Flap Barrier Retractable Flap Barrier Compatible With Biometric Access Control


Product Description

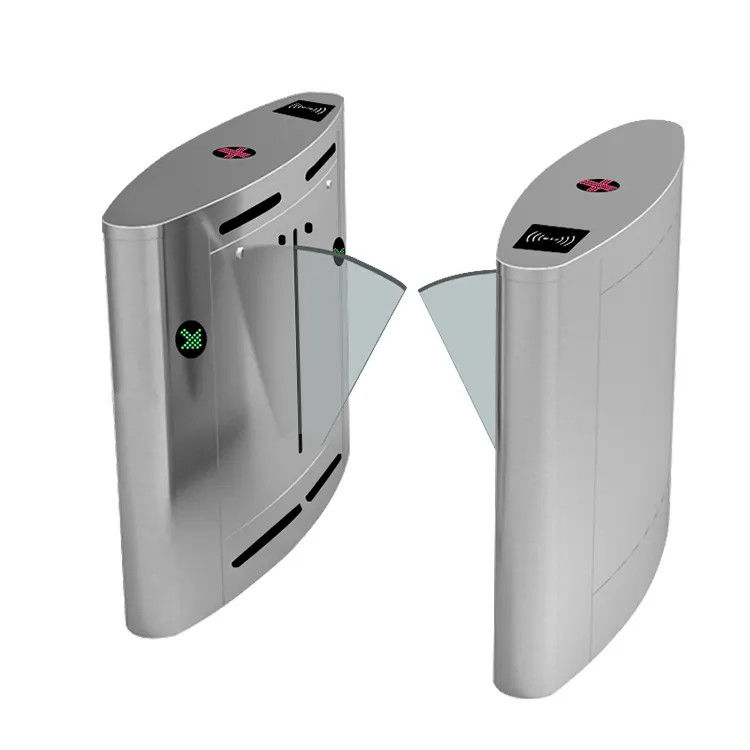

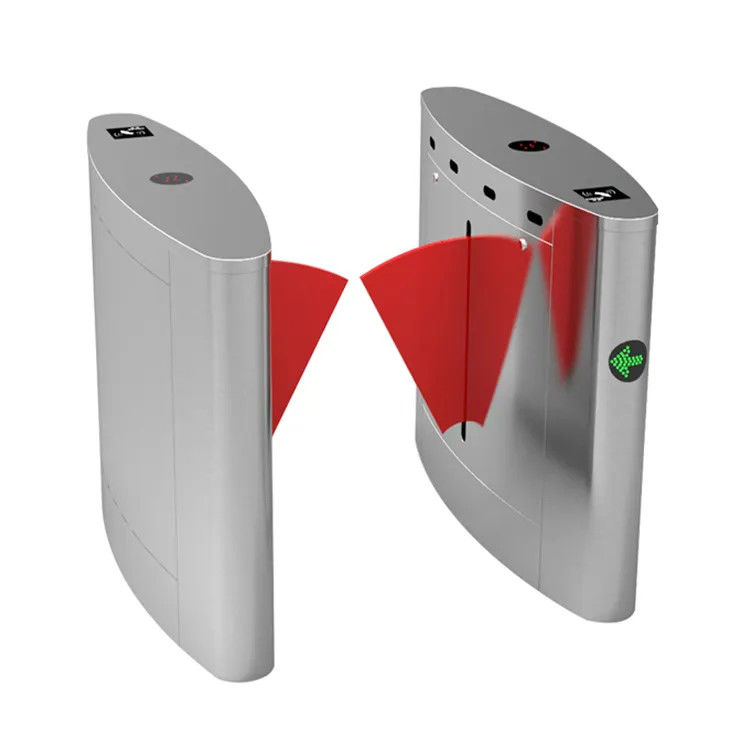

An automatic flap barrier gate turnstile AG-HX27123002 is a security barrier designed to control access to a specific area. It combines the functionality of a turnstile gate with the convenience of an automatic access control flap gate. The gate operates by flap open and close, allowing or denying access to authorized individuals as they present their credentials, be it a card, RFID tag or biometric identifier. It is commonly used in high-security areas such as government buildings, museum, and corporate offices, and serves as a reliable and efficient means of regulating access while minimizing the need for human intervention. With advanced security features, such as anti-tailgating technology, and a sleek and modern design, the automatic flap gate turnstile offers an effective and sophisticated solution for controlling access to any location.


Automatic Flap Barrier Turnstile 30p/M - 35p/M 1200*300*980mm 0


Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

Automatic Flap Barrier Turnstile 30p/M - 35p/M 1200*300*980mm 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
