Customized Automatic Systems Turnstile Flap Barrier System 1 Year Warranty

Customized Automatic Systems Turnstile Flap Barrier System 1 Year Warranty

Customized Automatic Systems Turnstile

Automatic Systems Turnstile Flap Barrier

Turnstile Flap Barrier System

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Flap Barrier Gate
Power Supply:
Indoor / Outdoor
SUS304 Stainless Steel
1 Year
Communication Interface:
Dry Contact/RS485/RS232
Passage Width:
550mm (One Passage)
Payment & Shipping Terms
Product Description

Turnstile Flap Barrier Retractable Flap Barrier Compatible With Biometric Access Control


Product Description

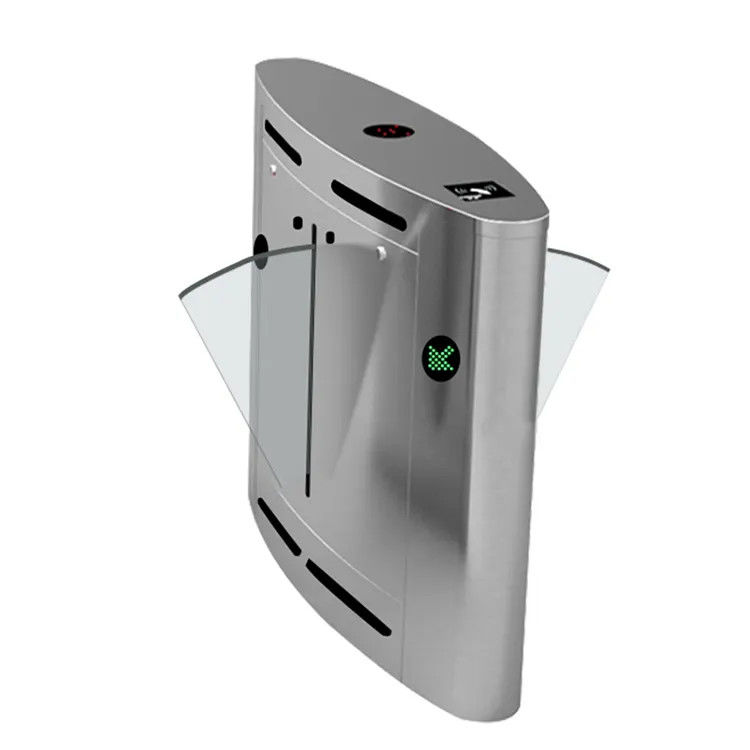

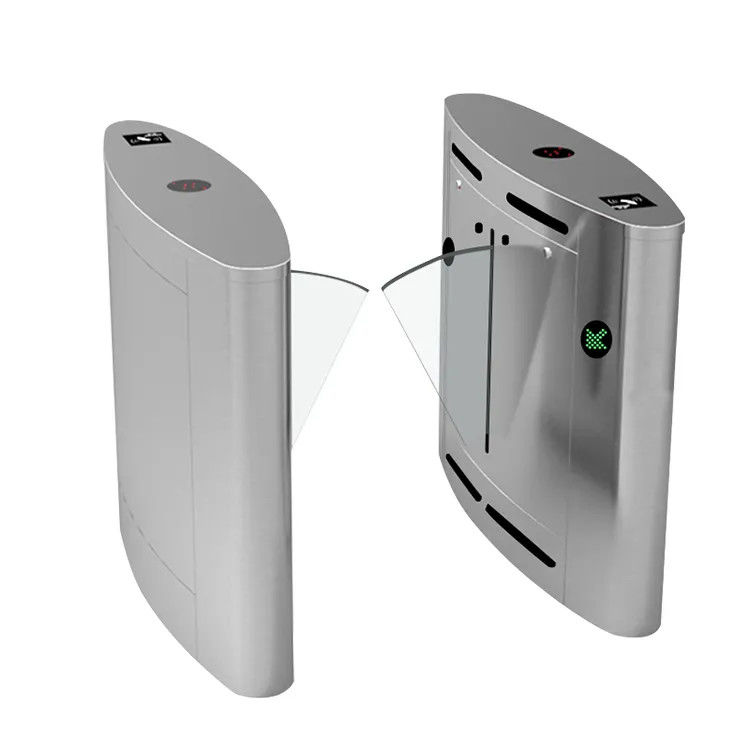

AG-HX27123002 speed gates flap turnstile is an essential equipment in controlling access to buildings and other areas. It is a powered gate that flap open or close, and is ideal for securing large entryways or driveways. Flap barrier gate is entry barrier that allow for fast and efficient entry of large numbers of people, typically used in transportation hubs or office buildings. The AG-HX27123002  flap barrier turnstiles typically have a restricted entry point, allowing only one person to enter at a time. It is commonly used in sports venues or amusement parks to control access to specific areas. Overall, the product provides reliable and efficient access control solutions for various applications.



Customized Automatic Systems Turnstile Flap Barrier System 1 Year Warranty 0


Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

Customized Automatic Systems Turnstile Flap Barrier System 1 Year Warranty 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
