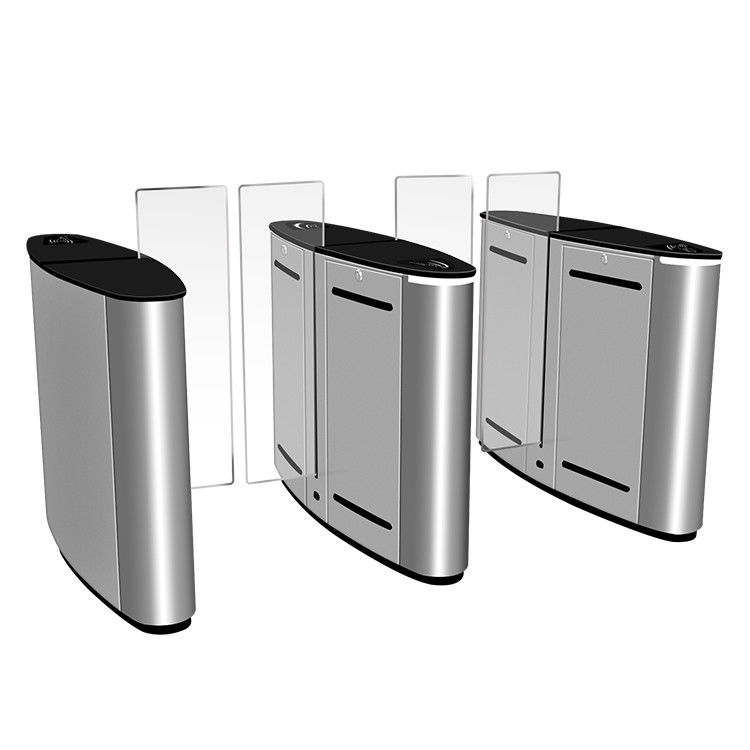

AG-HX56143302 People Counter Turnstile Speed Barrier Turnstile With Sliding Barrier Baffle
Product Description
The sliding gate pedestrian access control solutions refer to a mechanism that restricts and monitors the access of pedestrian traffic through a sliding gate in a particular area, such as a residential complex, commercial premises, or industrial sites. The AG-HX56143302 access control solution is designed to ensure that only authorized individuals can gain entry into a restricted area, while effectively managing and securing the pedestrian traffic.
The sliding gate pedestrian access control solution consists of a range of devices, including access control panels, card readers, biometric scanners, intercoms, and cameras, which work together to authenticate and manage pedestrian access. The access control panel receives and validates the access credentials, such as a key card, a PIN, or biometric data, to grant or deny access.
The system also incorporates various automated mechanisms, such as automatic gate opening, closing, and locking, that ensure a seamless flow of pedestrian traffic while maintaining a high level of security. Overall, sliding gate pedestrian access control solutions provide enhanced security, convenience, and peace of mind for property owners and residents.
Datasheet
| Specification | |
| Product Size | 1400*330*980mm |
| Material | SUS 304 Stainless Steel |
| Thickness | 1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Reaction Time | 0.2S |
| Throughput Rate | 20~25p/m |
| Working Temperature | ·-20~+70℃ |
| Driving Voltage | DC24V |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| Back up power | Supercapacitor(12V/3A) |
Functionality
1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Projects
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
