20p/m-25p/m Single Lane Flap Barrier Turnstile With Sliding Baffle

20p/m-25p/m Single Lane Flap Barrier Turnstile With Sliding Baffle

Single Lane Flap Barrier Turnstile

25p/m Single Lane Flap Barrier

Sliding Baffle Gate Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Sliding Gate Turnstile
Passage Width:
Power Input:
LED Direction Indication
Acoustic Alarm:
Buzzer Alarm
Payment & Shipping Terms
Product Description

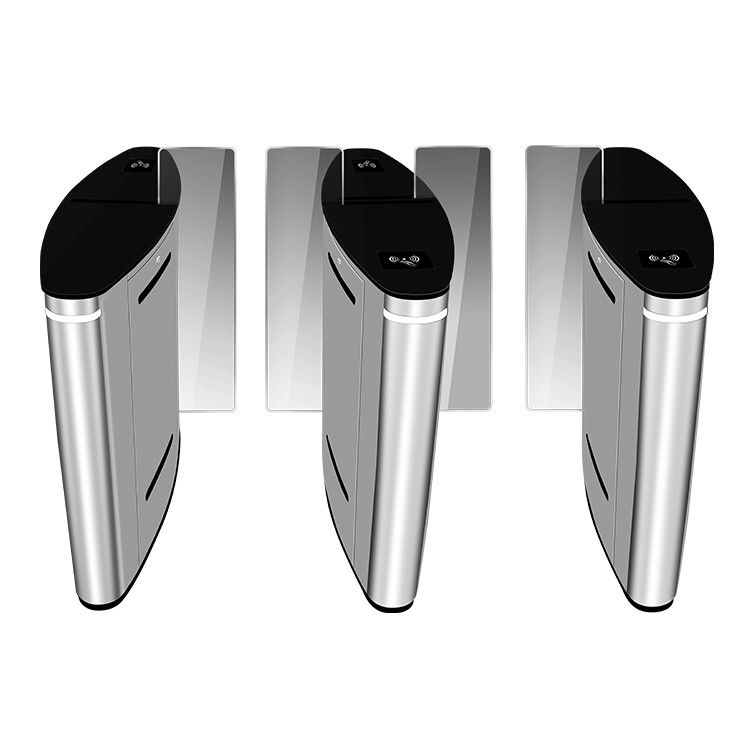

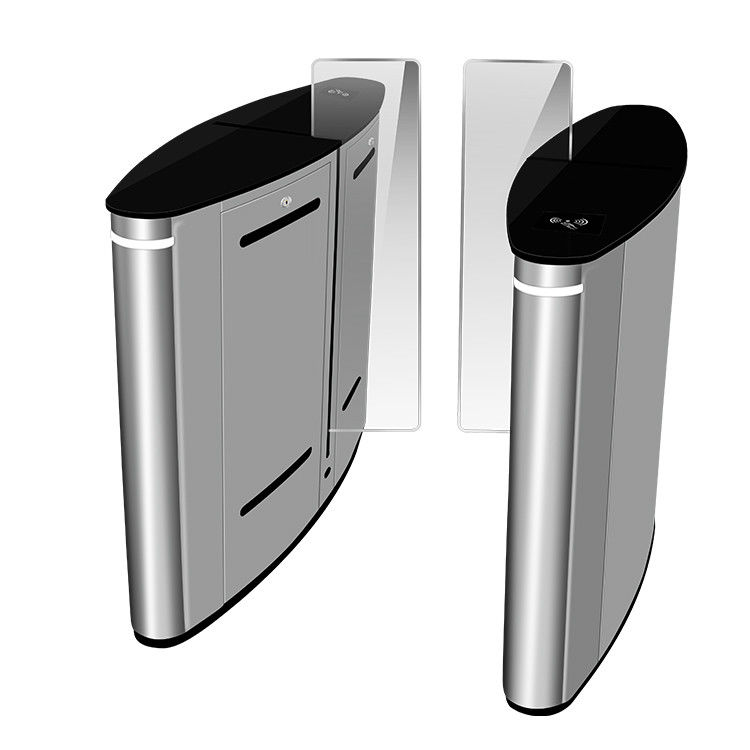

AG-HX56143302 Entrance Barrier Gate Pedestrian Barrier Gate With Sliding Baffle


Product Description

The AG-HX56143302 sliding turnstile gate access control solution is a security system that restricts access to a specific area, such as a building or a private property. It uses a gate that slides open to allow authorized individuals to enter and close automatically to prevent unauthorized entry. This solution includes several components, such as a turnstile, a card reader, and access control software. It provides enhanced security measures and ensures that only authorized personnel are granted access. The sliding turnstile gate access control solution is widely used in various industries, including commercial buildings, government facilities, and transportation hubs. It offers easy access management, improves security, and provides a safer and more efficient environment.



20p/m-25p/m Single Lane Flap Barrier Turnstile  With Sliding Baffle 0



Product Size 1400*330*980mm
Material SUS 304 Stainless Steel
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.


2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.


3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.


4, The gate has a high-luminance LED accessibility indicator.


5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.


6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.


7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



20p/m-25p/m Single Lane Flap Barrier Turnstile  With Sliding Baffle 1


Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
