SPCC Flap Gate Barrier , Speedstile Swing Gate Turnstile Durable

SPCC Flap Gate Barrier , Speedstile Swing Gate Turnstile Durable

SPCC Flap Gate Barrier

Wing Gate Turnstile

Speedstile Swing Gate Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Swing Barrier Gate Turstile
Swing Barrier
Single Core 38kg/dual Core 48 Kg
Payment & Shipping Terms
Product Description

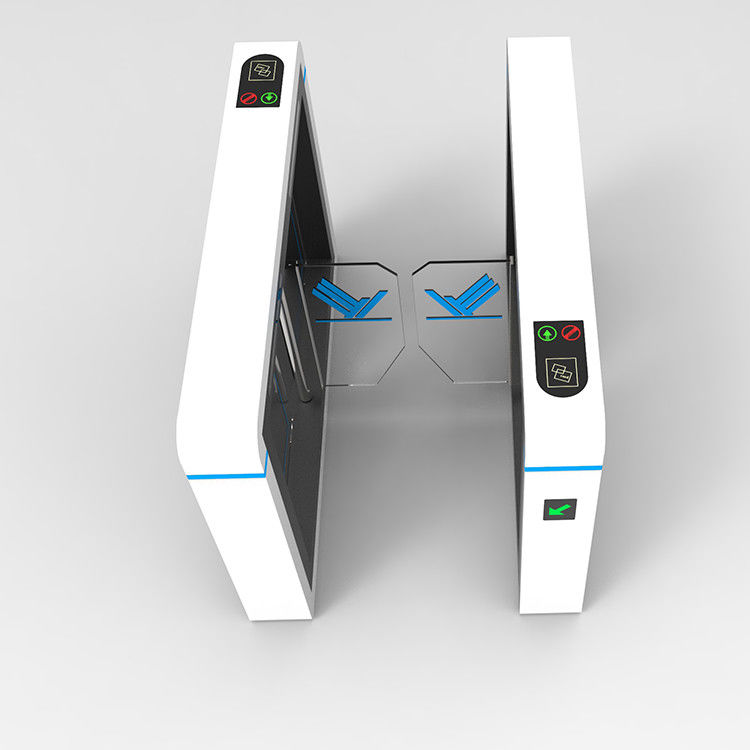

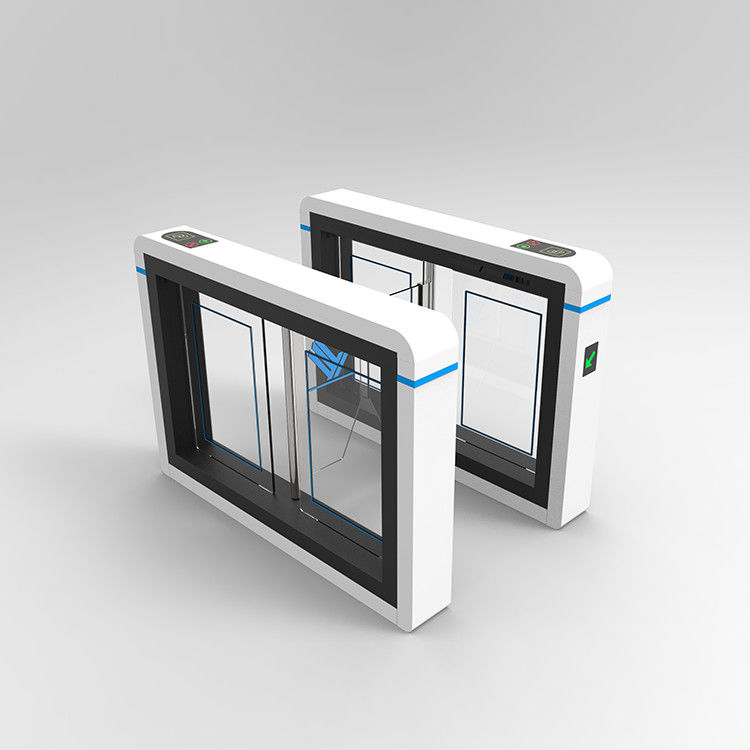

AG-HX35141802 Flap Wing Turnstile Gate Turnstile Barrier Swing Gate


HPT AG-HX35141802 Swing Barrier Gate - a highly functional and durable access control solution for your premises. This gate boasts a sleek and modern design, packed with innovative and advanced features to deliver optimal performance and security.

Constructed with high-quality materials, this swing barrier gate is built to withstand the toughest weather conditions and resist wear and tear. Its motorized mechanism ensures smooth and effortless operation and prevents unauthorized entry to your property.

The swing barrier gate is perfect for managing pedestrian traffic in high-traffic areas, such as hospitals, airports, schools, and parking lots. It comes with a range of customization options, including different colors and finishes to match your existing architecture and design.

This barrier gate can be easily integrated with access control systems and other security solutions, making it a highly versatile solution for controlling access to your premises. It is also compatible with different types of access credentials, such as RFID cards and biometric scanners, to suit your specific security needs.

Experience unmatched security, durability, and functionality with the swing barrier gate. Order yours today and secure your property with confidence.

SPCC Flap Gate Barrier , Speedstile Swing Gate Turnstile Durable 0



Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




SPCC Flap Gate Barrier , Speedstile Swing Gate Turnstile Durable 1


1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

SPCC Flap Gate Barrier , Speedstile Swing Gate Turnstile Durable 2



Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
