HPT AG-PX21122802 Automated Flap Turnstile Gate For Efficient Traffic Control

HPT AG-PX21122802 Automated Flap Turnstile Gate For Efficient Traffic Control

Automated Flap Turnstile Gate

Traffic Control Flap Turnstile Gate

550mm Flap Turnstile Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Passage Width:
SUS304 Stainless Steel
Product Name:
Flap Turnstile
12 Months
Flap Barrier
Payment & Shipping Terms
Product Description

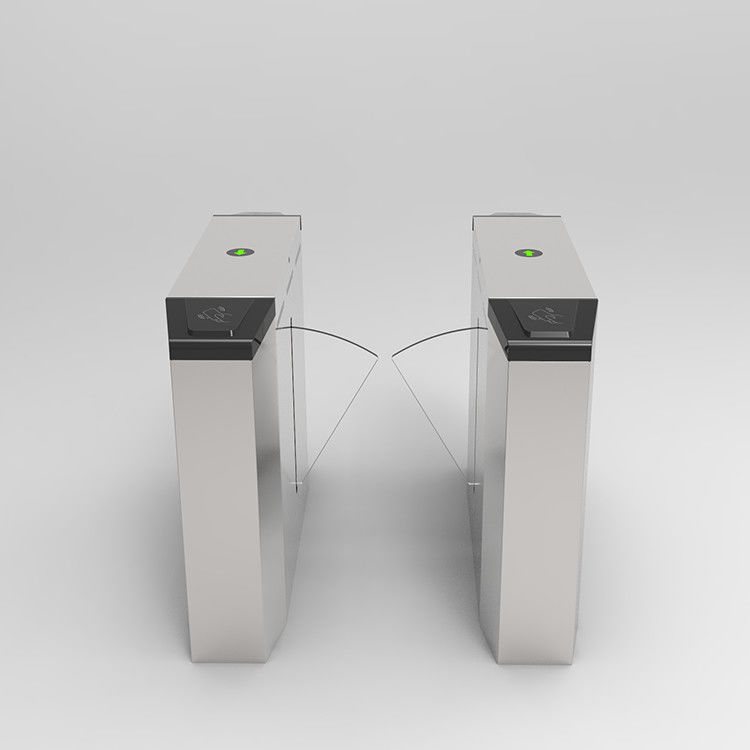

HPT AG-PX21122802 Automated Flap Barrier Turnstiles


Product Description

HPT AG-PX21122802 flap barrier gates are innovative security solutions that are designed to restrict unauthorized access and reduce the risk of theft, vandalism, and other security breaches. These gates consist of movable arms that open and close to allow or deny access, depending on the authorization status of the individual. Flap barrier gates are ideal for use in high-traffic areas such as airports, train stations, stadiums, and office buildings, where quick and efficient crowd control is necessary.

One of the main advantages of flap barrier gates is their ability to operate seamlessly with various access control systems, including proximity cards, biometric devices, and keypad codes. This ensures that only authorized individuals can access the secured area, thereby enhancing overall security levels while reducing the risk of unauthorized access.

Moreover, most flap barrier gates feature durable and robust construction, making them capable of withstanding harsh weather conditions and continuous usage. They are also easy to install and maintain, making them an ideal choice for businesses that are looking for long-term security solutions that are both efficient and cost-effective.

Overall, flap barrier gates are an effective solution for businesses looking to maintain high levels of security while ensuring fast and efficient crowd control. They are reliable, durable, and offer excellent value for money, making them a top choice for businesses of all sizes and industries.

HPT AG-PX21122802 Automated Flap Turnstile Gate For Efficient Traffic Control 0

HPT AG-PX21122802 Automated Flap Turnstile Gate For Efficient Traffic Control 1



Product Size 1200*280*960mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550MM
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brush/ Brushless DC Motor
Mechanism Half Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
LED Single/ Triple color LED (optional)
Acoustic Alarm Buzzer Alarm (optional)



1. The flap barrier gate checks for errors when it is opened and sounds a warning siren if any are found.

2. At the main control panel, the operating state of the flap gate can be predetermined.

3. There is a stop-pinching feature. When the turnstile arms are about to close, the gate will automatically open to safeguard the travelers as well as the gate itself.

4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone treads on it, green light comes out of it. When someone tries to use the gate route without permission, it flashes red. To alert persons of the authorization violation, the bell on the gate beeps.

5. The gate also incorporates "Anti-Collision" technology, allowing the driving motor to halt and attempt self-defense in the event that something slams into it too violently.

6. The data from the turnstiles is synchronized using a variety of channels.

7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. The user can choose the amount of time they wish to wait before the gate reopens using the "waiting duration" parameter.

8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.

9. It can be connected to a variety of readers, including those that make use of RFID, facial recognition, and fingerprint recognition.

10. In order to limit entry and leave, a walkway may be one way or two ways.


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
