Place of Origin:
China
Brand Name:
HPT
Certification:
CE； FCC; ISO
Model Number:
AG-PX31122802
Contact Us

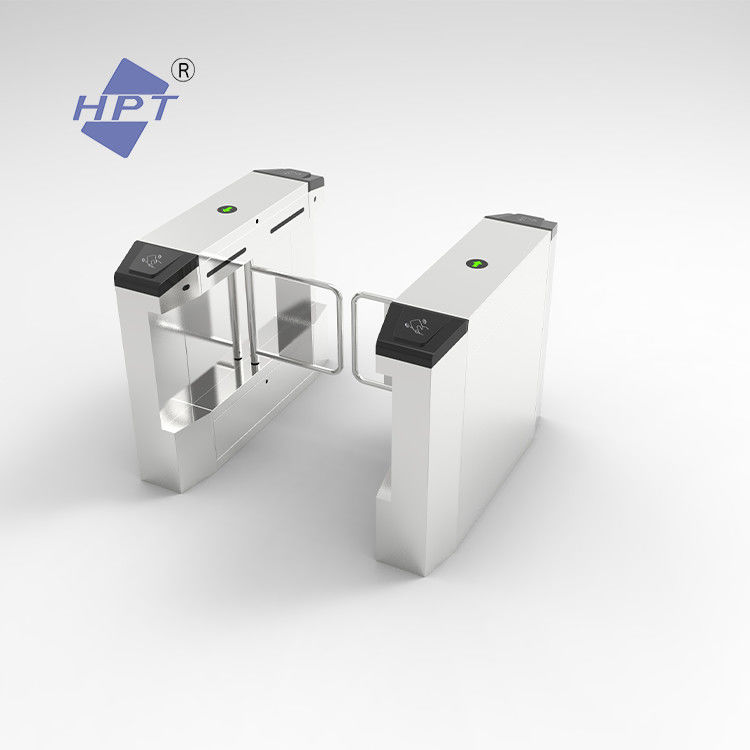

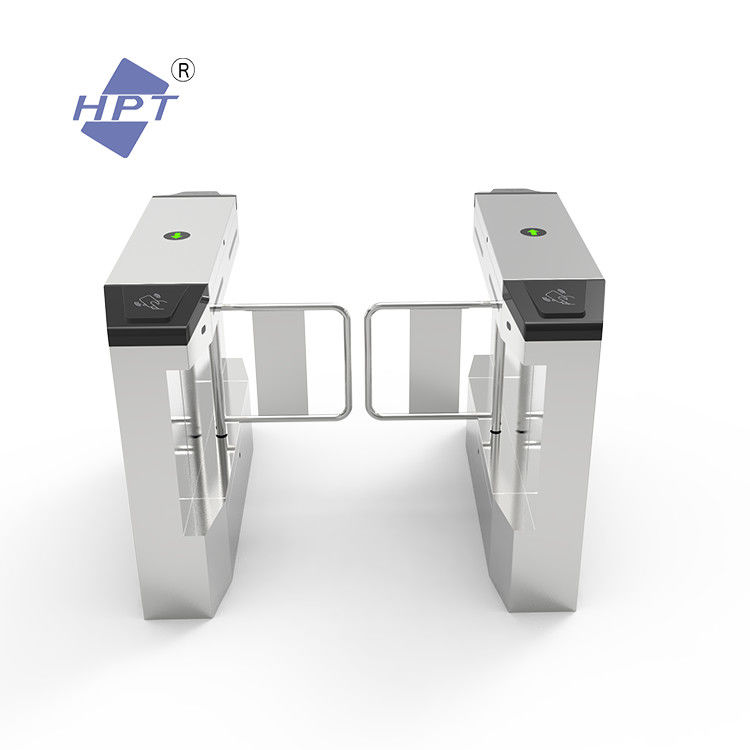

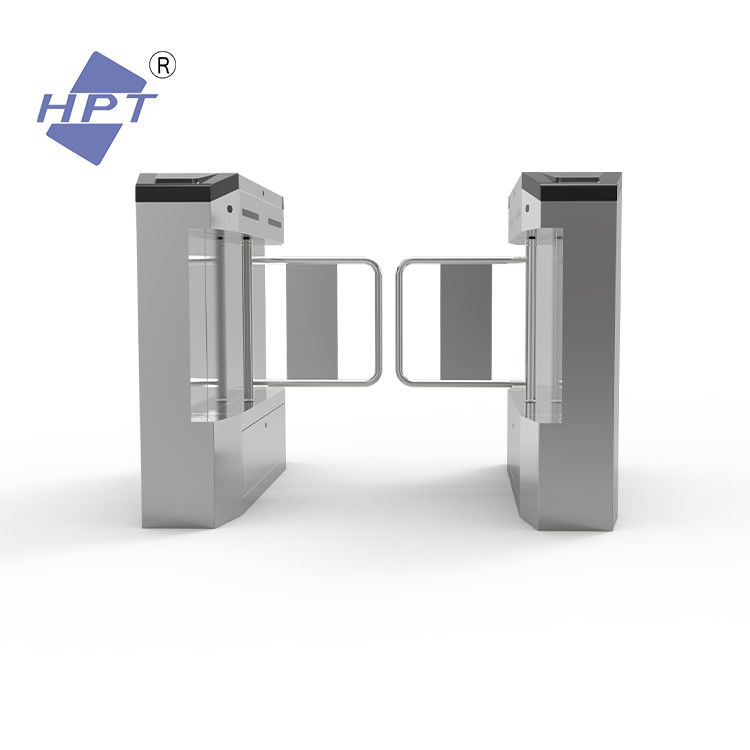

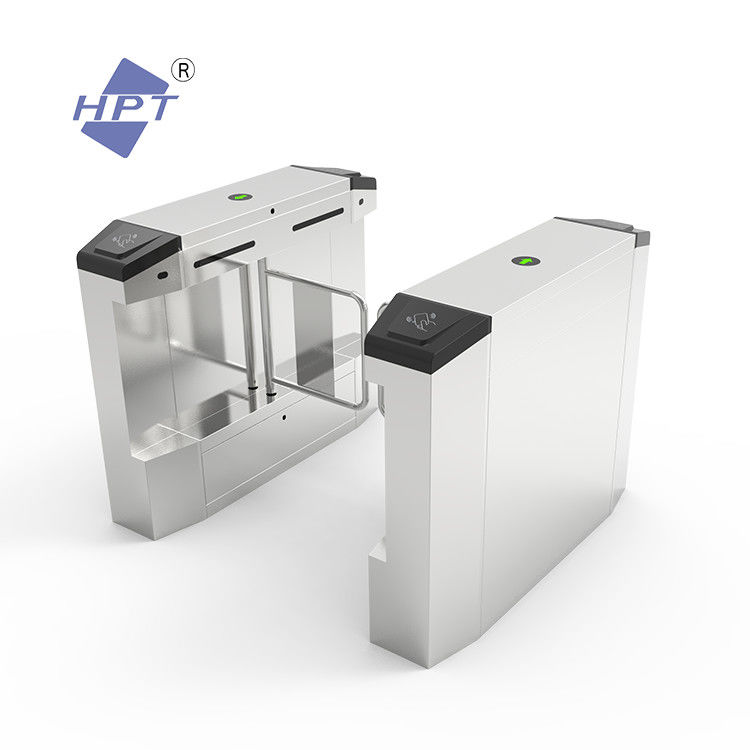

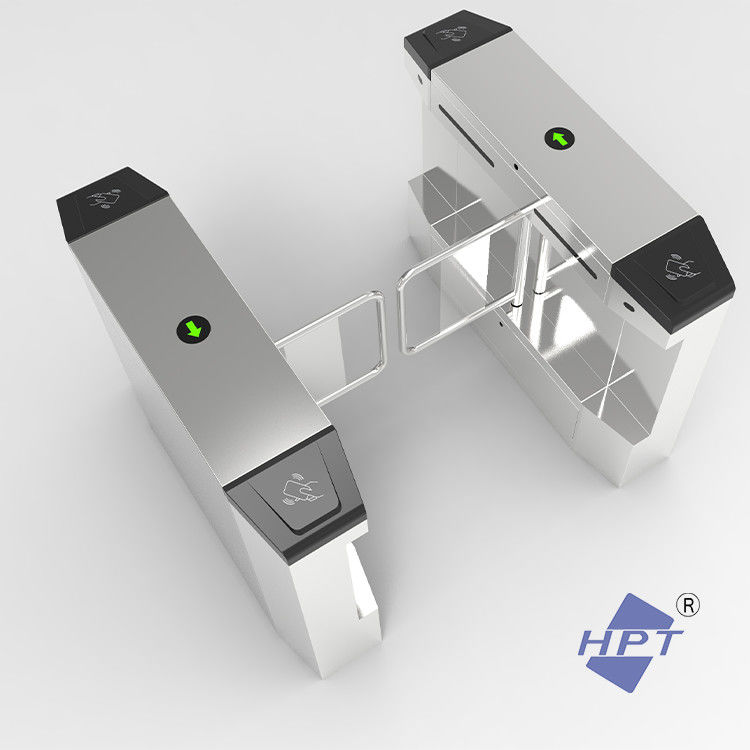

AG-PX31122802 swing barrier gate is one of the best price swing barrier gate HPT has. It is specially designed for outdoor. SUS 304 stainless steel ensures it surviving and working outdoor. The turnstile top cover opening is filled with rubber strip and all electronic components were protected by a waterproof case to make sure that the water from harsh environment rain days will not leak in the gate and endanger its operation. The passage width of this gate can reach 1200 mm makes it accessible for bike or motor bike and thus the best option for residential community and outdoor public places where the vehicle is allowed to enter. Despite its good price, HPT uses MCBF 5 million brushless DC driving motor and top IR sensors in this industry to make it more stable and service life longer in usage. It can be one of the best solution outdoor swing barrier turnstile.
Specification
| Specification | |
| Product Size | 1200*280*960mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Pass Width | 600mm (≤1200mm optional) |
| Passage Direction | Single directional/Bi-directional |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
Functionality
1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.
2, The control panel of the swing barrier gate allows you to configure its operating mode.
3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.
4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.
5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).
6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.
7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.
8, There are two types of flow controls -- single direction access and dual direction access can be applied
9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.
10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.
Projects
Customizing is welcomed
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
