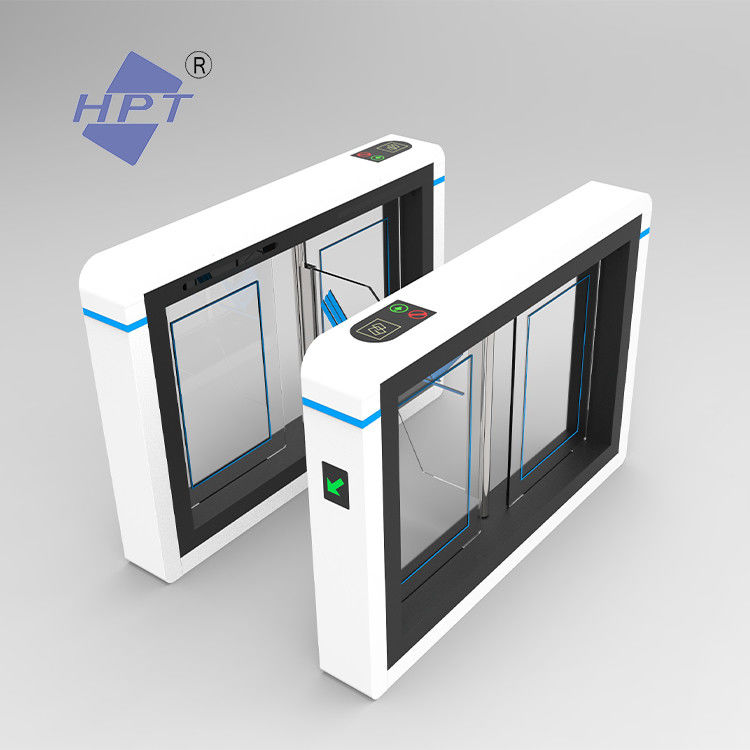

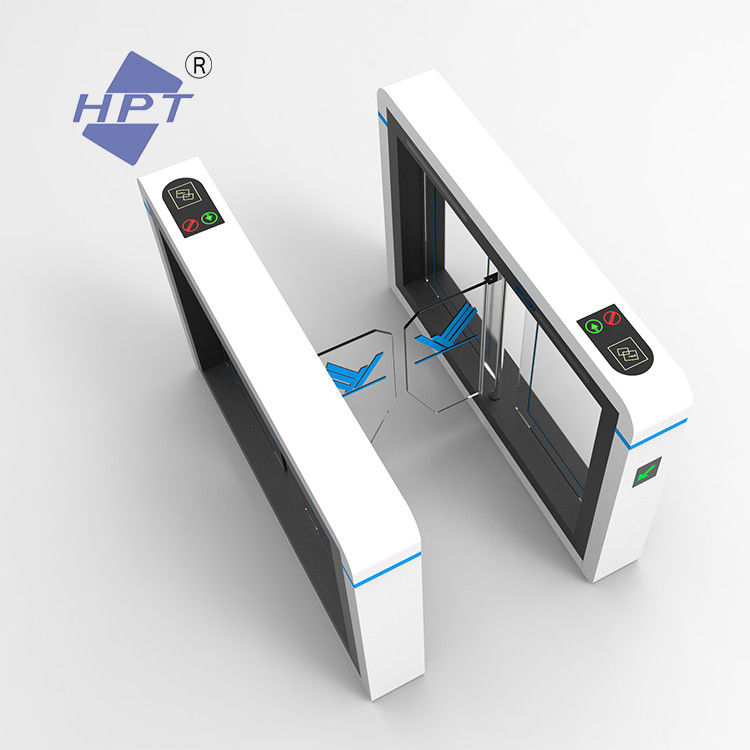

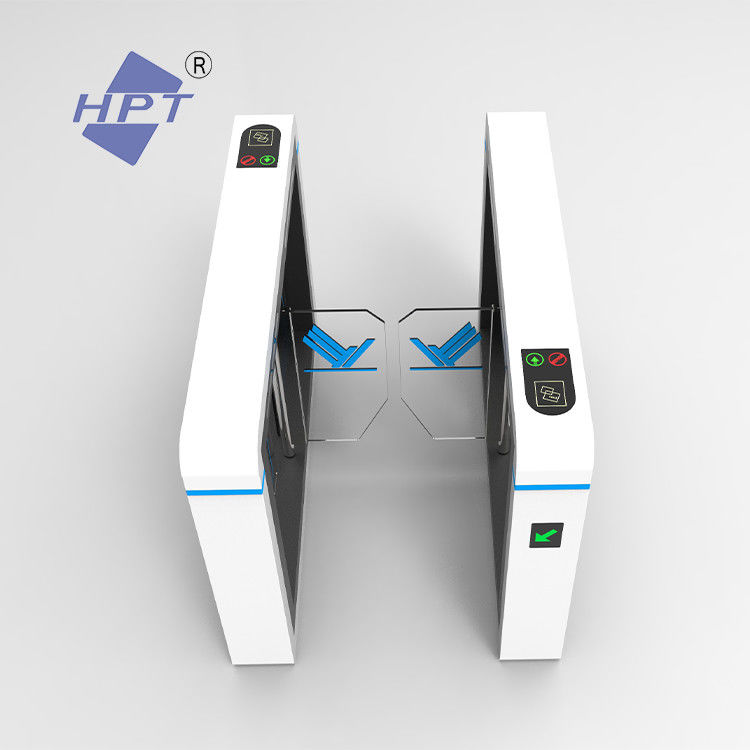

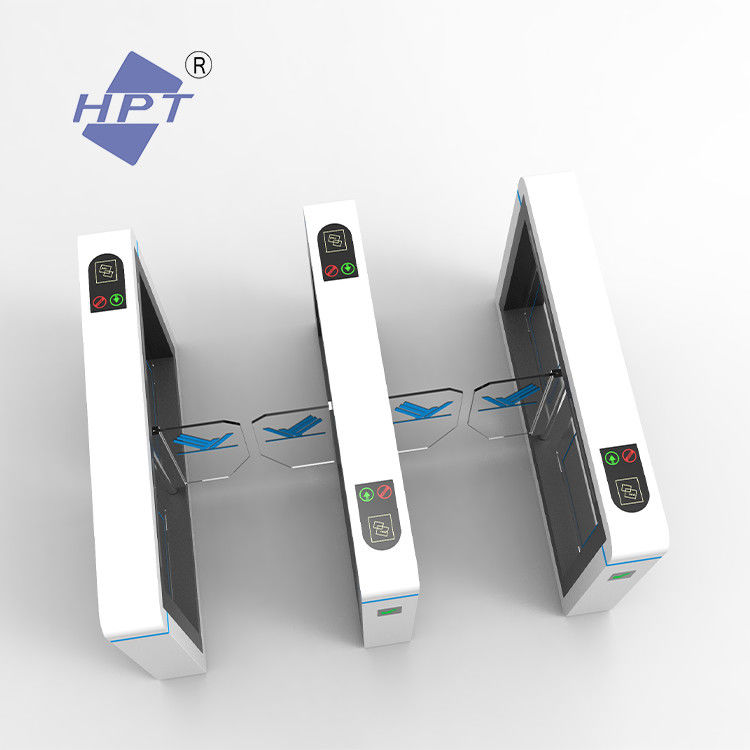

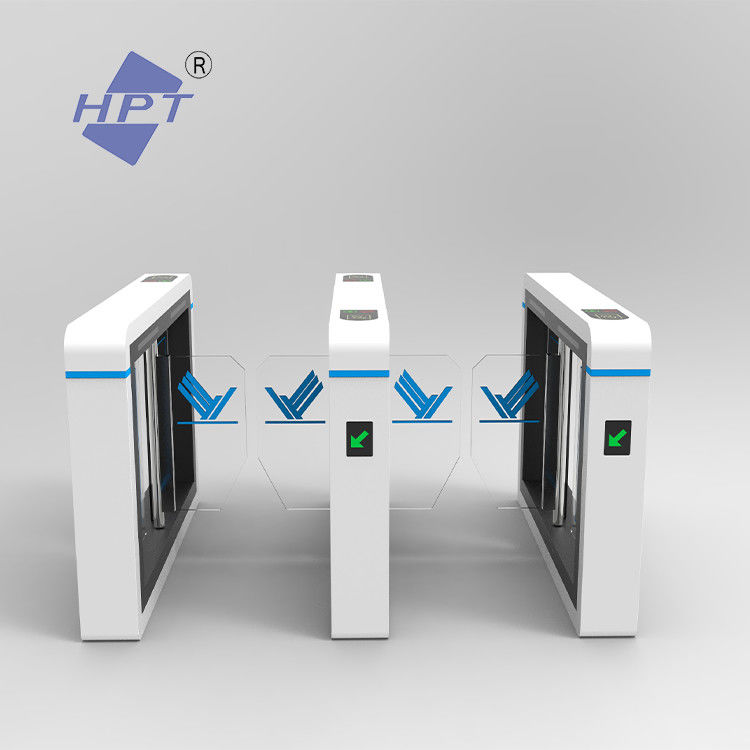

Speed Gate Access Control , Airport Swing Gate Turnstile 1400*180*1000mm

Speed Gate Access Control , Airport Swing Gate Turnstile 1400*180*1000mm

Speed Gate Access Control Turnstile

Airport Swing Gate Turnstile

Turnstile Access Control Speed Gates

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Swing Barrier Gate Turstile
Swing Barrier
Single Core 38kg/dual Core 48 Kg
Payment & Shipping Terms
Product Description

AG-HX35141802 Swing Turnstile Swing Barrier Gate Security Access System


AG-HX35141802 swing barrier turnstile gate is a modularized gateway system, combining advanced technology in a compact design, that offers you a wide range of integrated access control functions to meet your security needs. This product is suitable for indoor and outdoor applications and can be used as part of larger security systems.


Its access control technology offers various authentication (card/fingerprint) with individual user settings as well as multiple users and access rights.


The turnstile gate is also equipped with a durable, anti-tamper design, making it impossible for unauthorized access. The gate turnstile is also incorporated with an anti-tailgating feature that prevents people from accessing the system without the correct authorization. In addition, the gate also features a voice reminder system that will alert users when the turnstile gate is triFggered.


Furthermore, the Passage turnstile gate is equipped with emergency stop and emergency bypass functions, ensuring that in case of an emergency, the system can be easily bypassed and emergency personnel can access the area quickly and easily.


Finally, the system is also equipped with a remote access control module, allowing you to access the system via the internet and keep track of the activity logs in real-time. This product is the perfect combination of reliability and control, and will make an excellent addition to any security system.

Speed Gate Access Control , Airport Swing Gate Turnstile 1400*180*1000mm 0



Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




Speed Gate Access Control , Airport Swing Gate Turnstile 1400*180*1000mm 1


1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

Speed Gate Access Control , Airport Swing Gate Turnstile 1400*180*1000mm 2



Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
