Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance

Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance

Sunproof Electronic Turnstile Gates

Swing Barrier Gate Turnstile

Entrance Electronic Turnstile Gates

Place of Origin:

China

Brand Name:

HPT

Certification:

CE, FCC, ISO

Model Number:

AG-TX38161502

Contact Us

Request A Quote
Product Details
Product Name:
Stainless Steel Turnstile
Model:
AG-TX38161502
Material:
SUS 304 Stainless Steel
Motor:
Brushless Servo Motor
Dimension:
1600*150*980mm
Thickness:
Top: 1.2mm+body: 1.2mm
Standard Channel Width:
600mm
Sensor:
5 Pairs Of Active Infrared Intrusion Detector
Throughput Rate:
40~60 P/M
Reaction Time:
0.2S
Working Temperature:
·-20~+70℃
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

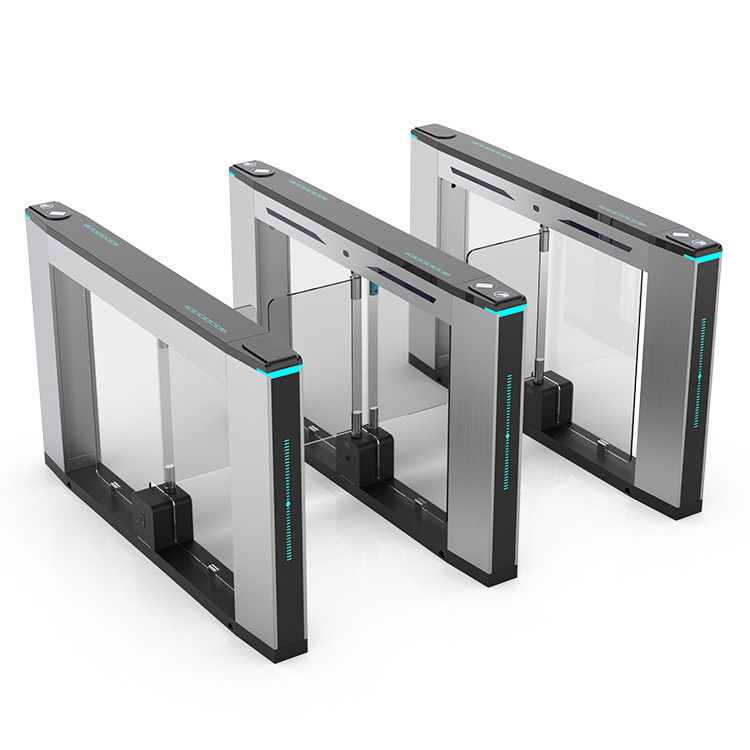

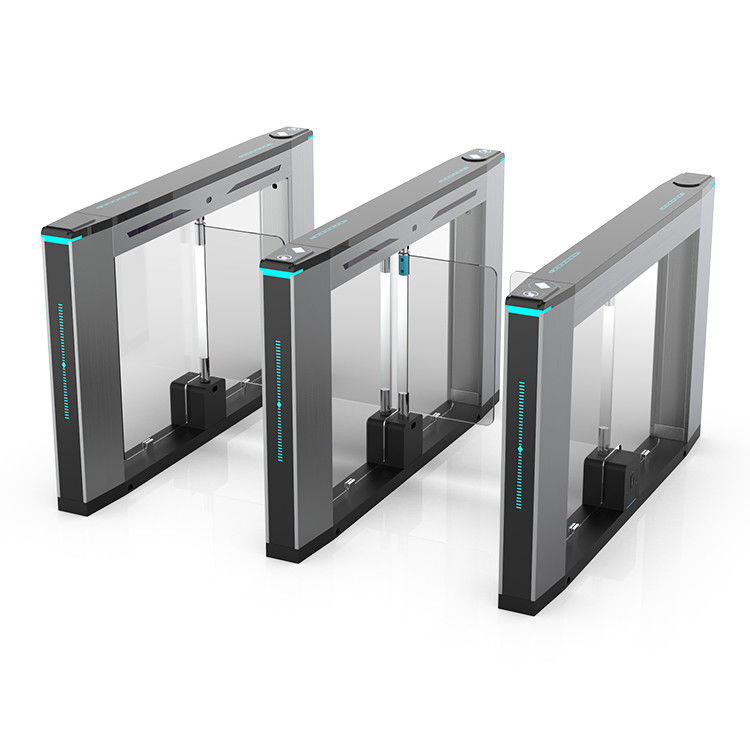

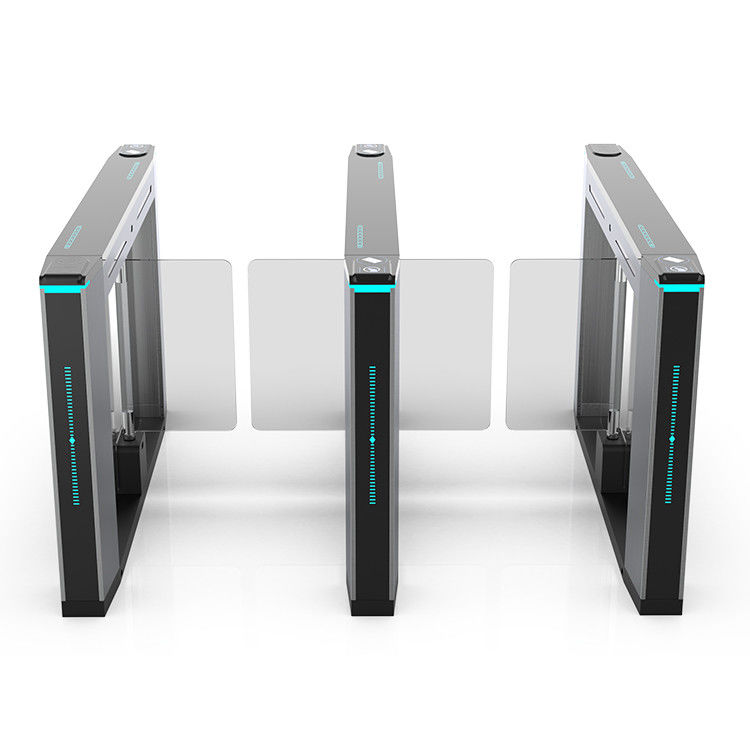

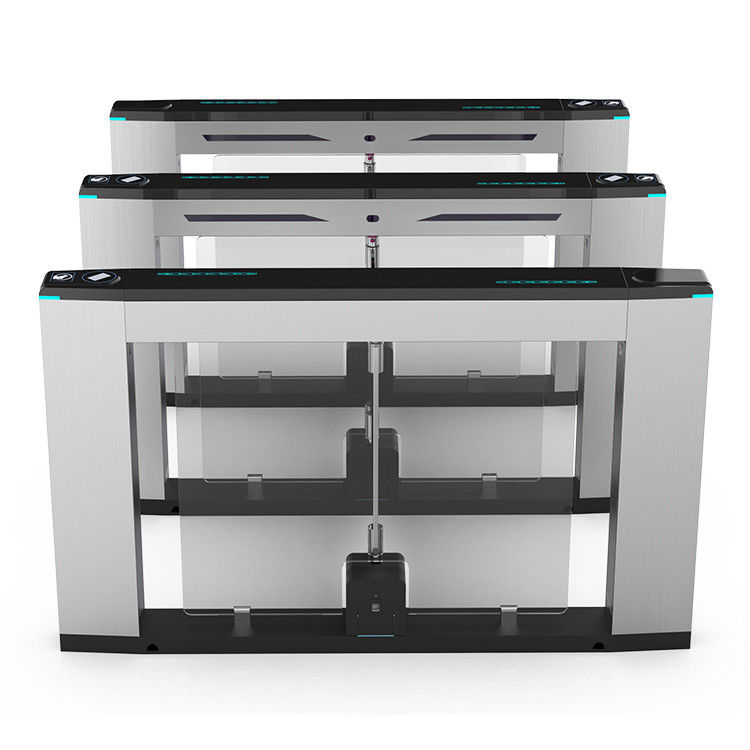

Latest Design Electronic Turnstile Gates High End Swing Barrier Gates For Entrance





Product Video, please find in this youtube link: https://youtube.com/shorts/nSxAzqFJhZg?feature=share



Product Description

Looking for a sophisticated solution for pedestrian access control? Look no further than our high-end swing barrier gate!





HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. The AG-TX38161502 pedestrian swing gate is perfect for use in a wide range of environments, including offices, hotels, airports and train stations, our swing barrier gate offers a sleek and secure way to manage pedestrian traffic.



Made from top-quality materials, our swing barrier gate is built to last – even in high-traffic environments. It features a durable stainless steel housing and high-quality motor components, ensuring smooth and reliable operation day in and day out.



Our swing barrier gate is designed to be flexible and easy to use, with a range of customizable settings to suit your specific needs. For example, it can be configured to accommodate various access control options, including RFID, biometric, and barcode scanning. And with built-in safety features like anti-tailgating and anti-clamping systems, you can rest assured that your premises are secure and protected from unauthorized access.



Other key features of our swing barrier gate include:



• Choice of single or double-sided units for complete control over pedestrian traffic flow

• Customizable LED light displays for easy operation and clear visibility

• Smaller footprint compared to traditional sliding doors, making it ideal for use in confined spaces

• Low power consumption, helping you to minimize energy costs

• Easy installation and maintenance by highly trained professionals



With its elegant design and advanced features, our high-end swing barrier gate is the ultimate solution for controlling pedestrian access in style. Contact us today to learn more about our range of products and services!

Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance 0



Specification



Product Size 1600*150*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



Functionality



1. AG-TX38161502 swing barrier gate arms opening speed can be set to meet various scenes requirements.



2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.



3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.



4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.



5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.



6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.



7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.





Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance 1

Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance 2Projects

Sunproof Electronic Turnstile Gates , High End Swing Barrier Gate Turnstile For Entrance 3
