SUS304 Stainless Steel Swing Barrier Turnstile 40P/M-60P/M 600mm Channel Width

SUS304 Stainless Steel Swing Barrier Turnstile 40P/M-60P/M 600mm Channel Width

SUS304 Swing Barrier Turnstile

Stainless Steel Swing Barrier Turnstile

Swing Gate Turnstiles 40P/M

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Building Turnstiles
Brushless Servo Motor
Top: 1.2mm+body: 1.2mm
Standard Channel Width:
5 Pairs Of Active Infrared Intrusion Detector
SUS 304 Stainless Steel
Throughput Rate:
Reaction Time:
Working Temperature:
Payment & Shipping Terms
Minimum Order Quantity
Product Description

SUS 304 Stainless Steel Turnstile Barrier Gate Turnstile Access Control Security Systems



Product Video, please find in this youtube link:


Product Description

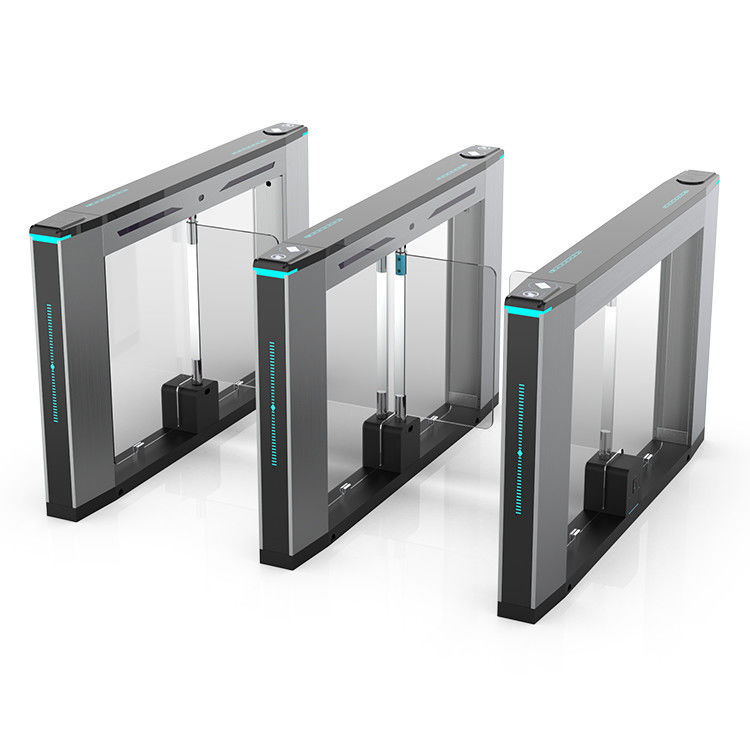

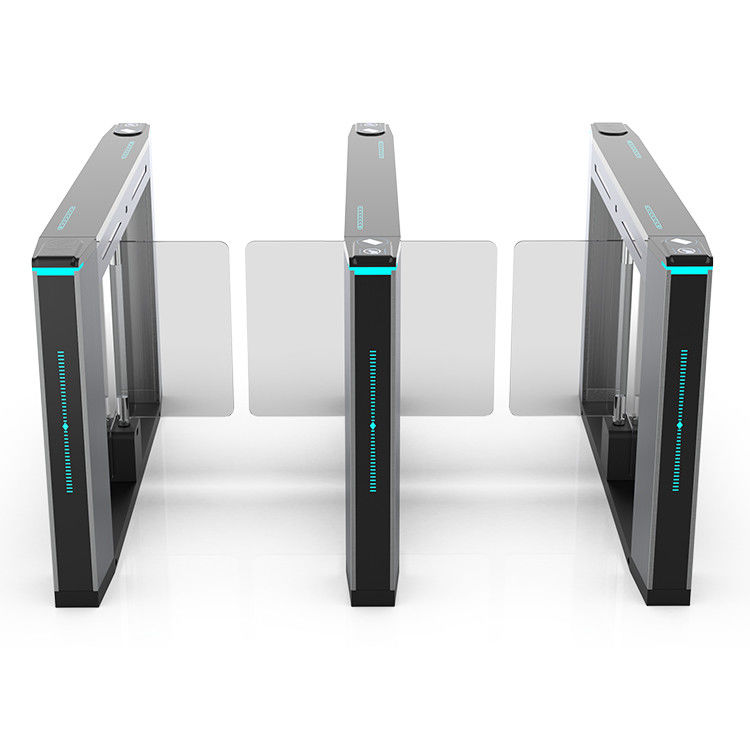

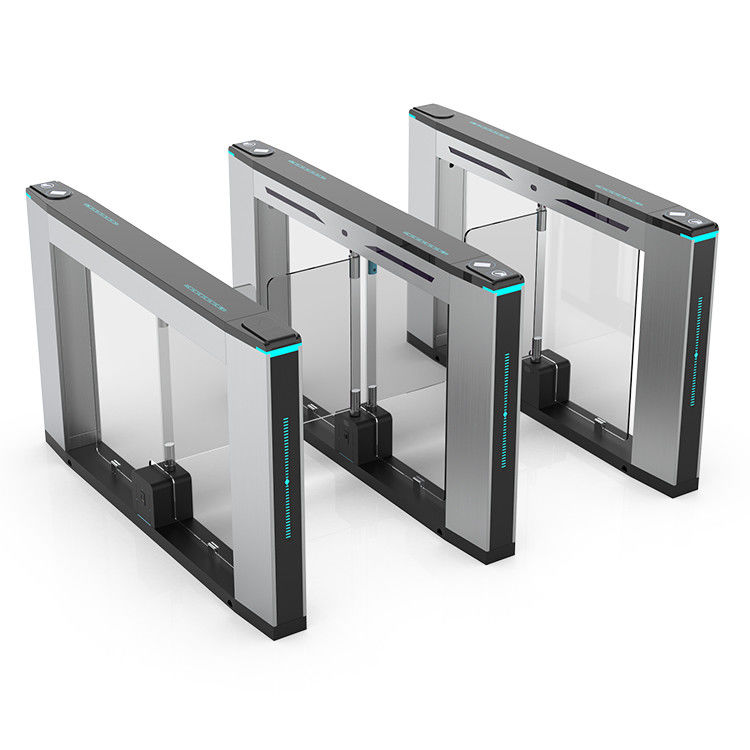

HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. The AG-TX38161502 pedestrian swing gate is

is perfect for high-traffic pedestrian areas like schools, universities, airports, stadiums, and more because it is made to offer simple entry, maximum security, and a sleek modern aesthetic.


The swing barrier turnstile gate is crafted from premium stainless steel and tempered glass, making it strong enough to resist frequent use and adverse weather conditions. With a strong mechanism that forbids unauthorized entrance or tailgating, it has a flexible pivot design that guarantees seamless passage for pedestrians.


The turnstile gate can be combined with many access control systems, including biometric readers, ID readers, and other cutting-edge technology, for increased security. Its clever software makes user access easy to control, monitor, and report on any security threats in real-time.


The optical barrier gate is ideal for institutions that emphasize customer happiness since it not only provides a high level of protection, but also enhances visitors' experiences with a seamless and simple entry and leave process.


The gate turnstile offers, in brief, the following: - High-performance and resilient materials to survive frequent use and adverse situations.


- The pivot design allows for easy and smooth passage of people.


- A strong security system to prevent unwanted access - Integration with sophisticated software and access control systems for simple management


- A pleasing aesthetic for visitors


With the turnstile gate, you can improve pedestrian access to your property and feel secure knowing that all of your guests are secure.

SUS304 Stainless Steel Swing Barrier Turnstile 40P/M-60P/M 600mm Channel Width 0




Product Size 1600*150*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-TX38161502 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


SUS304 Stainless Steel Swing Barrier Turnstile 40P/M-60P/M 600mm Channel Width 1

Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.



SUS304 Stainless Steel Swing Barrier Turnstile 40P/M-60P/M 600mm Channel Width 2
