Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems

Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems

Indoor Swing Barrier Turnstile

Outdoor Swing Barrier Turnstile

Access Control Turnstile Swing Gate

Place of Origin:

China

Brand Name:

HPT

Certification:

CE, FCC, ISO

Model Number:

AG-TX38161502

Contact Us

Request A Quote
Product Details
Product Name:
Airport Swing Gate
Model:
AG-TX38161502
Material:
SUS 304 Stainless Steel
Motor:
Brushless Servo Motor
Dimension:
1600*150*980mm
Thickness:
Top: 1.2mm+body: 1.2mm
Standard Channel Width:
600mm
Sensor:
5 Pairs Of Active Infrared Intrusion Detector
Throughput Rate:
40~60 P/M
Reaction Time:
0.2S
Working Temperature:
·-20~+70℃
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

SUS 304 Stainless Steel Turnstile Barrier Gate Turnstile Access Control Security Systems





Product Video, please find in this youtube link: https://youtube.com/shorts/nSxAzqFJhZg?feature=share



Product Description

One of HPT Technology's newest outside designs is the Sirius series turnstile gate. This series' Swig barrier gate AG-TX38161502 is incredibly versatile, has a quick operating speed, and has an exquisite appearance.

It has a distinctive design. The accessing rate of this gate can reach 60P/M thanks to HPT's use of a brushless servo motor, which also helps to make it more stable and extend its lifespan. Depending on the needs of various projects, the drive motor's operation speed can be changed. Its passageway can be no wider than 1100 mm. The strong driving motor also enables the use of tempered steel as the baffle wing rather than acrylic.

HPT adorned some of our personal belongings as elements of the gate, including its reader cover and LEDs, to make it more distinctive.

Both indoor and outdoor use are appropriate.

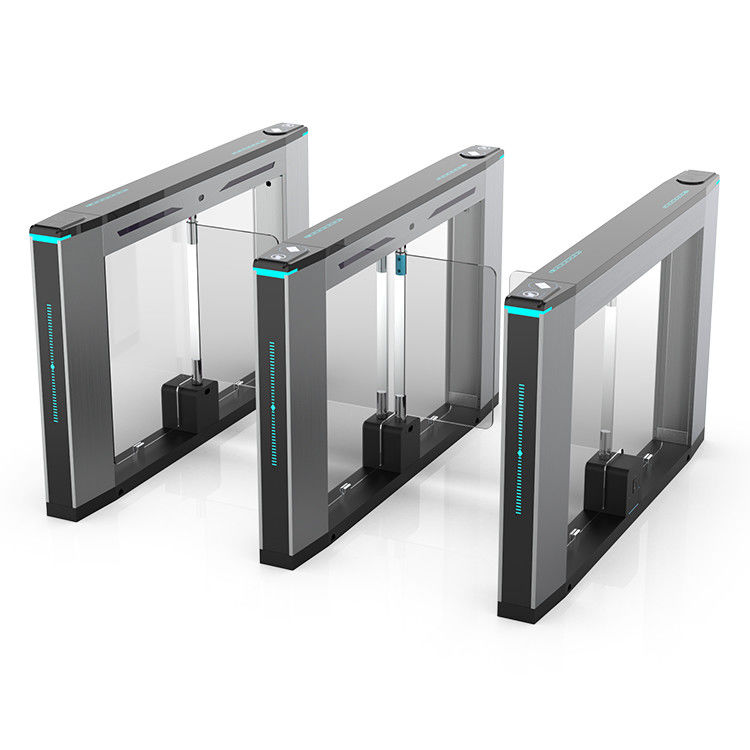

Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems 0



Specification

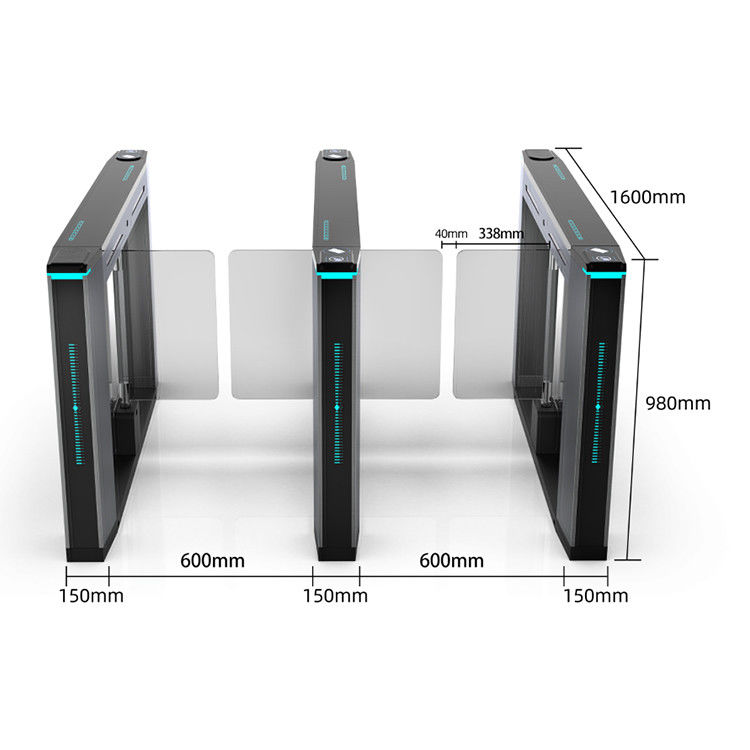

Product Size 1600*150*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



Functionality



1. AG-TX38161502 swing barrier gate arms opening speed can be set to meet various scenes requirements.



2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.



3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.



4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.



5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.



6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.



7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.

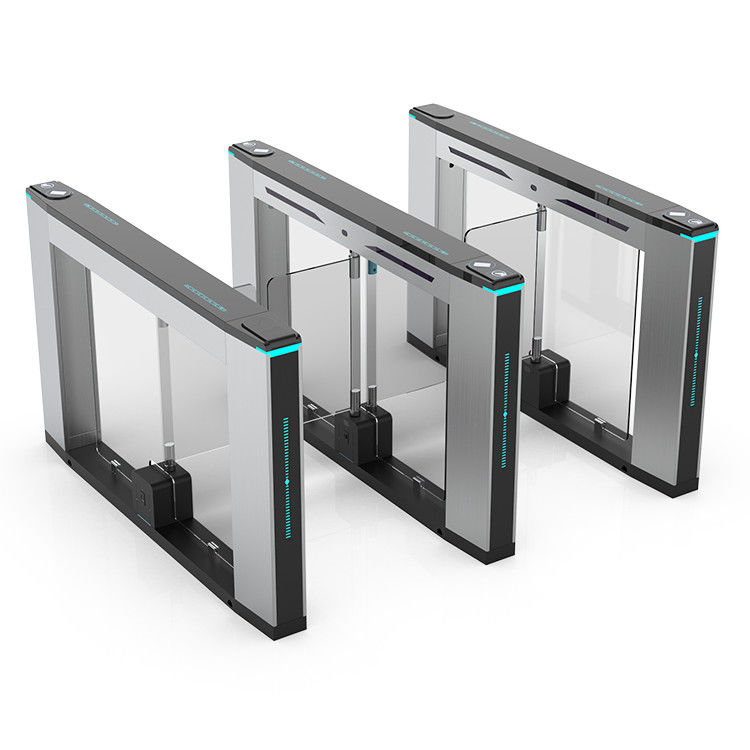

Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems 1

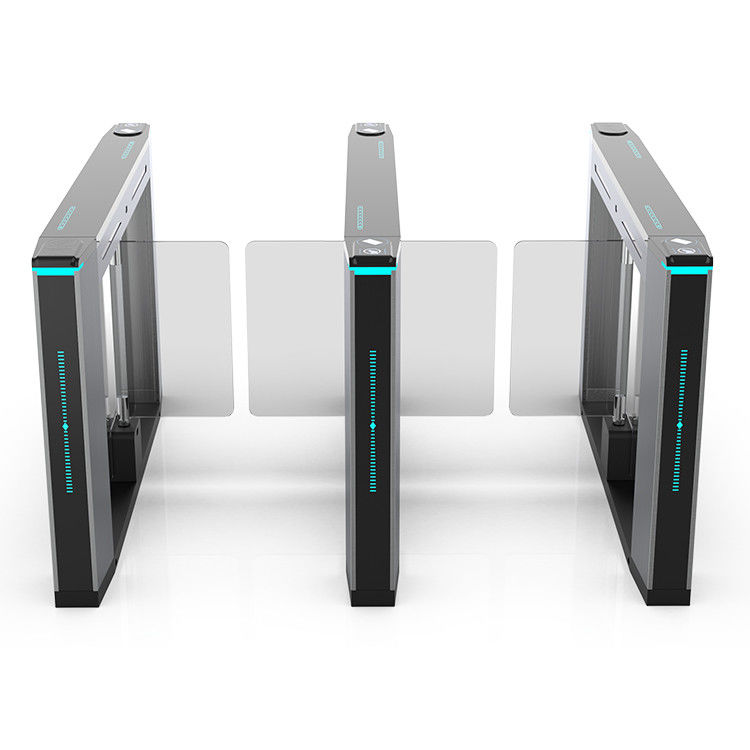

Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems 2Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.



Projects

Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems 3

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.



Indoor / Outdoor Swing Barrier Turnstile Access Control Security Systems 4
