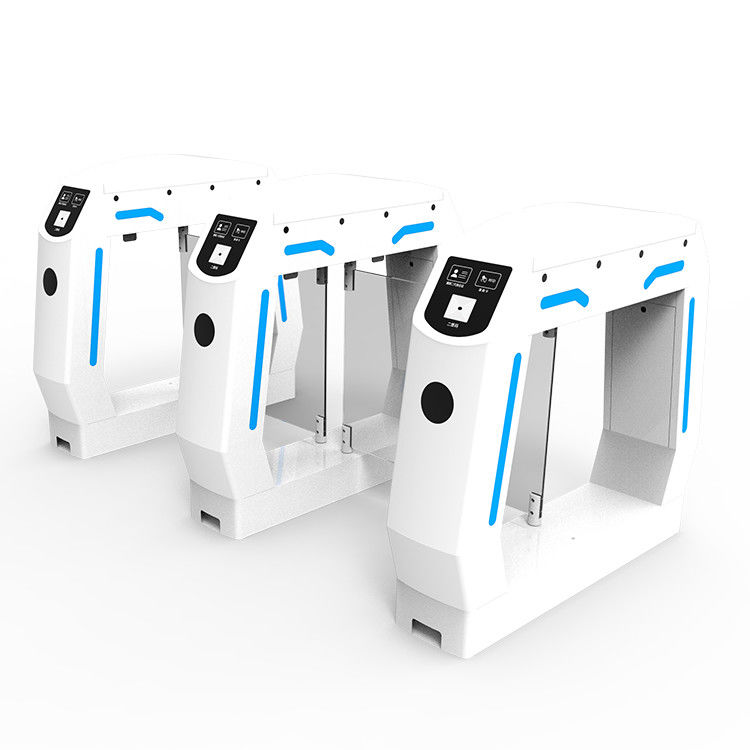

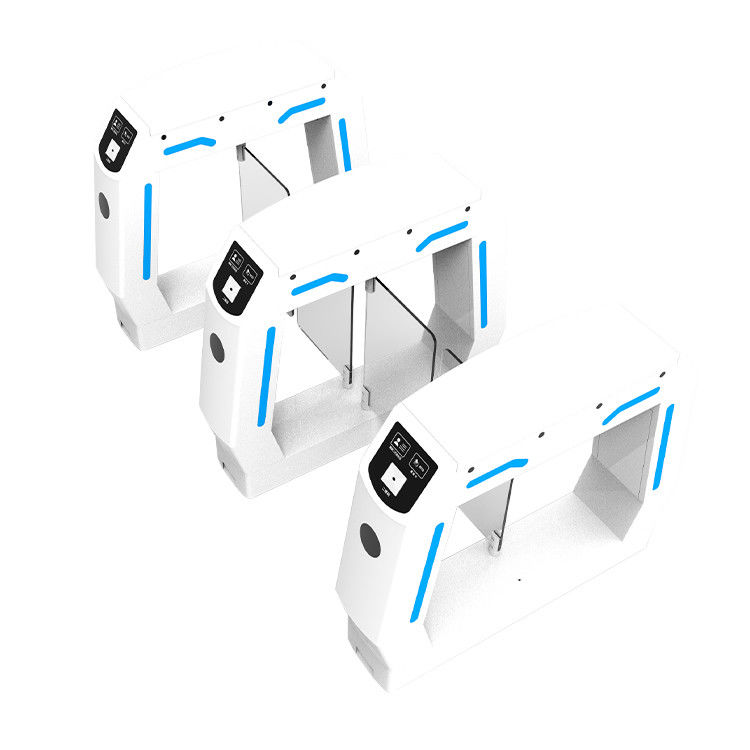

AG-TX38152502 White Color Bi-Directional Turnstile For Pedestrian Access Control


Product Description

Optical sensors and cutting-edge software algorithms are used in the high-tech and secure access control system the AG-TX38152502 optical swing barrier gate to monitor and regulate the entry and exit of persons into and out of restricted areas. The product is intended to offer a dependable and effective method of managing pedestrian traffic in locations like offices, train stations, airports, and other public buildings.


The optical swing barrier gate has a powerful mechanism that enables it to recognize unwanted access attempts fast and precisely. The barrier gate determines whether a person is permitted to enter a specific area by studying the flow of people and applying sophisticated software algorithms. The system can monitor a variety of environmental conditions with high degrees of accuracy thanks to the infrared-working optical sensors utilized in the gate.


One key advantage of the optical swing barrier gate is its high throughput capacity. The product can manage high levels of foot traffic without endangering the building's security. Many individuals can be quickly and accurately detected by the gate's optical sensors, enabling smooth and effective traffic flow.


The versatility and adaptability of the optical swing barrier gate is another important quality. The product can be tailored to match the user's unique demands and is made to function in a range of settings. Several operating modes, such as single direction, bi-directional, or restricted access, can be programmed for the gate.


The optical swing barrier gate is made to last in terms of structure. The motor and control system are built to withstand extensive use and resist wear and tear, while the gate is constructed from premium materials like stainless steel.


All things considered, the optical swing barrier gate is a highly effective and dependable access control system that offers great levels of convenience and security. Since preventing unwanted access is important, the device is best used in airports, train stations, office buildings, and other locations.

Bi Directional Optical Turnstile Access Control White Lobby Security Turnstiles 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)


Bi Directional Optical Turnstile Access Control White Lobby Security Turnstiles 1



1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.


2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.


3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.


4, The gate has a high-luminance LED accessibility indicator.


5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is on when the gate is in standby mode.


6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Bi Directional Optical Turnstile Access Control White Lobby Security Turnstiles 2


Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
