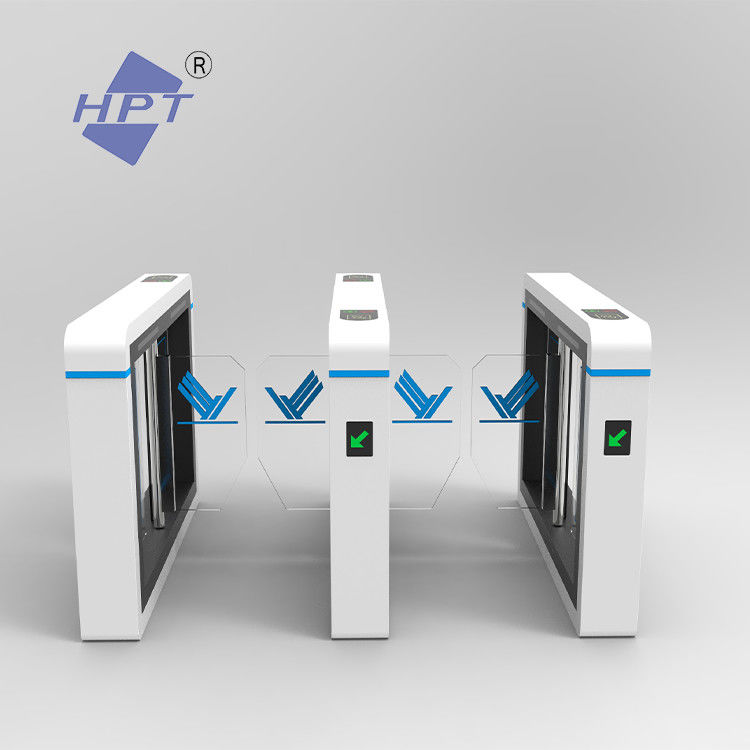

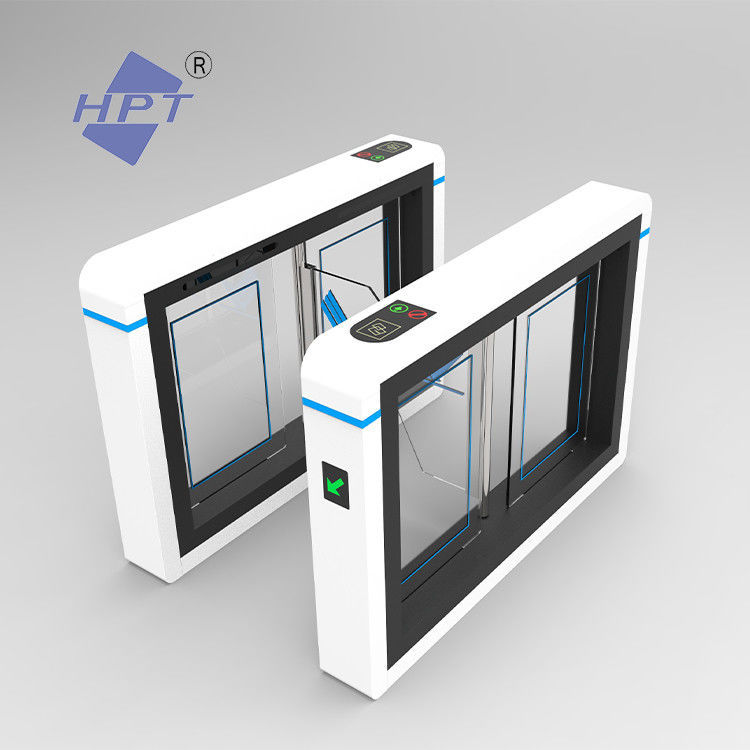

AG-HX35141802 High-End Pedestrian Turnstile Swing Barrier Gate Works With Card Reader
Product Description
High-end pedestrian turnstile is a state-of-the-art security system that provides superior pedestrian control and access management. Designed using cutting-edge technology and premium materials, these turnstiles are ideal for high-security areas such as government buildings, airports, train stations, large corporate offices, and financial institutions.
Specification
| Specification | |
| Product Size | 1400*180*1000mm |
| Material | SPCC |
| Thickness | 1.2mm |
| Passage Direction | single directional/Bi-directional |
| Passage Width | 600mm (≤800mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Features
• Secure and Reliable - The pedestrian turnstiles are compatible with advanced security features such as biometric authentication, card access control, and facial recognition technology to ensure the safety and security of the premises.
• Customizable Design - These turnstiles are designed to meet various architectural requirements and can be customized to blend in with the surrounding environment.
• Durability - The high-grade materials such as paint coated SPCC and plexiglass are used to construct these turnstiles, making them durable and long-lasting.
• Smooth and Efficient Operation - The turnstiles operate smoothly, with minimal noise and reduced waiting times for pedestrians.
• Easy Integration - They can be easily integrated with other security systems such as fire alarms, and access control systems for enhanced security.
Functionality
1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Customization Available
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
