Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
AG-HX35141802
Contact Us

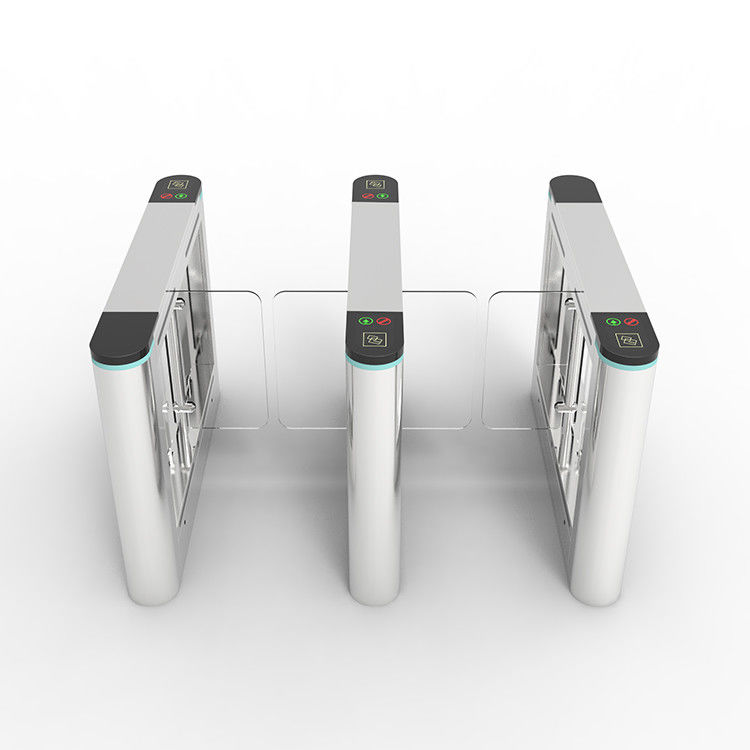

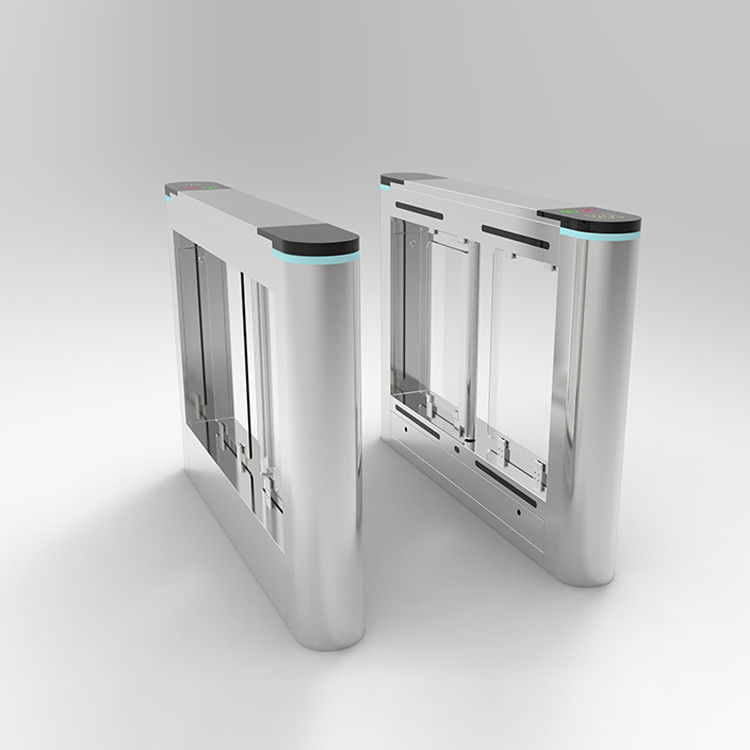

AG-HX35141802 Swing Barrier Gate Pedestrian Turnstile For Pedestrian Access Control
Product Description
AG-HX35141802 high-end pedestrian turnstile is a reliable security solution that provides effective access control for high-security areas. With its secure and reliable features, customizable design, and easy integration with other security systems, it is an ideal solution for anyone looking to enhance the safety and security of their premises.
Specification
| Specification | |
| Product Size | 1400*180*1000mm |
| Material | SPCC |
| Thickness | 1.2mm |
| Passage Direction | single directional/Bi-directional |
| Passage Width | 600mm (≤800mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Why do we need access control turnstile?
• Provides enhanced security and access control
• Prevents unauthorized entry and exit
• Reduces the need for security personnel
• Increases efficiency and reduces wait times for pedestrians
• Customizable design that blends in with the surrounding environment
Functionality
1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Customization Available
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
