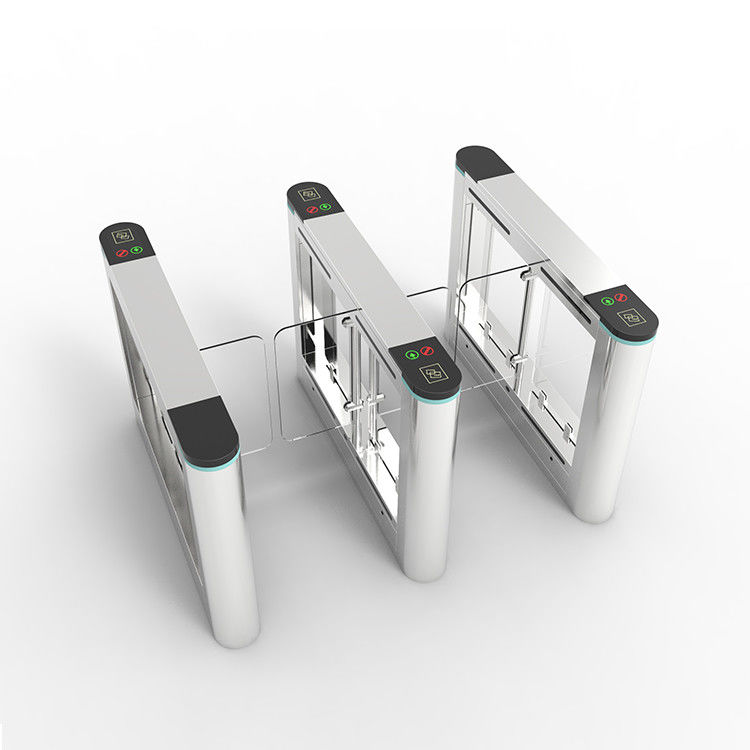

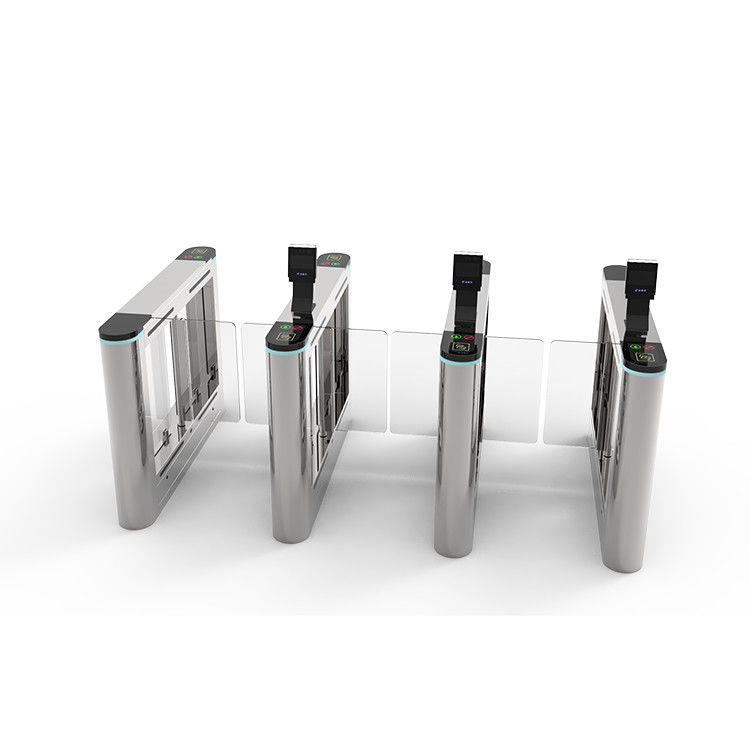

Outdoor Indoor Half Height Turnstile Security Doors For Biometric Access Control System
Product Description
AG-HX36141802 High-end pedestrian turnstile is a state-of-the-art security system that provides superior pedestrian control and access management. Designed using cutting-edge technology and premium materials, the turnstile is ideal for high-security areas such as government buildings, airports, train stations, large corporate offices, and financial institutions.
Specification
| Specification | |
| Product Size | 1400*185*1020mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.5mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm (≤900mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
• Secure and Reliable - High-end pedestrian turnstiles are equipped with advanced security features such as biometric authentication, card access control, and facial recognition technology to ensure the safety and security of the premises.
• Customizable Design - These turnstiles are designed to meet various architectural requirements and can be customized to blend in with the surrounding environment.
• Durability - High-grade materials such as stainless steel and tempered glass are used to construct these turnstiles, making them durable and long-lasting.
• Smooth and Efficient Operation - The turnstiles operate smoothly, with minimal noise and reduced waiting times for pedestrians.
• Easy Integration - They can be easily integrated with other security systems such as CCTV, fire alarms, and access control systems for enhanced security.
Functionality
1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.
2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.
3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.
4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.
5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.
6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.
7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.
Customization Avaible
To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.
