Modern Biometric Glass Turnstile Gate With Face Recognition

Modern Biometric Glass Turnstile Gate With Face Recognition

Biometric Glass Turnstile Gate

Modern Face Recognition Turnstile

Turnstile Gate With Face Recognition

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Throughput Rate:
40~60 P/M
Reaction Time:
Working Temperature:
Payment & Shipping Terms
Minimum Order Quantity
Product Description

SUS 304 Stainless Steel Automatic Turnstile Gates Compatible with Face Recognition Biometric System


Product Description

Modern security technology known as high-end pedestrian turnstiles offers enhanced pedestrian control and access management. These turnstiles are perfect for high-security locations including governmental buildings, airports, railway stations, sizable corporate offices, and financial institutions because they were created utilizing cutting-edge technology and high-end materials.

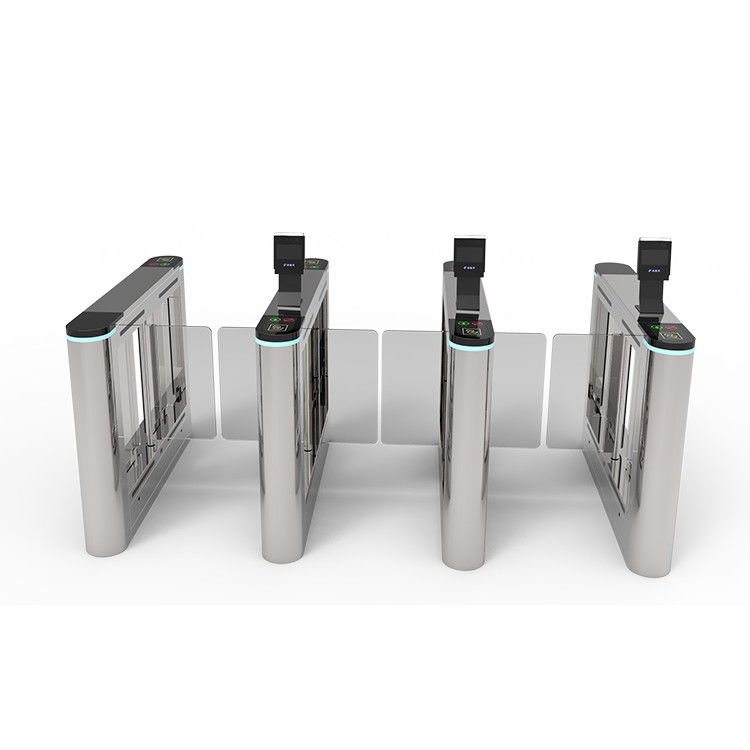

Modern Biometric Glass Turnstile Gate With Face Recognition 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED


• Safe and Reliable - To maintain the security of the location, high-end pedestrian turnstiles are outfitted with cutting-edge security technologies including biometric authentication, card access control, and facial recognition technology.


• Modifiable Design - These turnstiles can be altered to match specific architectural specifications and to blend in with the surroundings.


• Longevity - These turnstiles are built to last thanks to the use of premium materials including stainless steel and tempered glass.


• Quiet and Efficient Operation - The pedestrian wait times are decreased and the turnstiles run quietly and efficiently.


• Simple Integration - For increased security, they may be simply integrated with other security systems like CCTV, fire alarms, and access control systems.




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.

Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

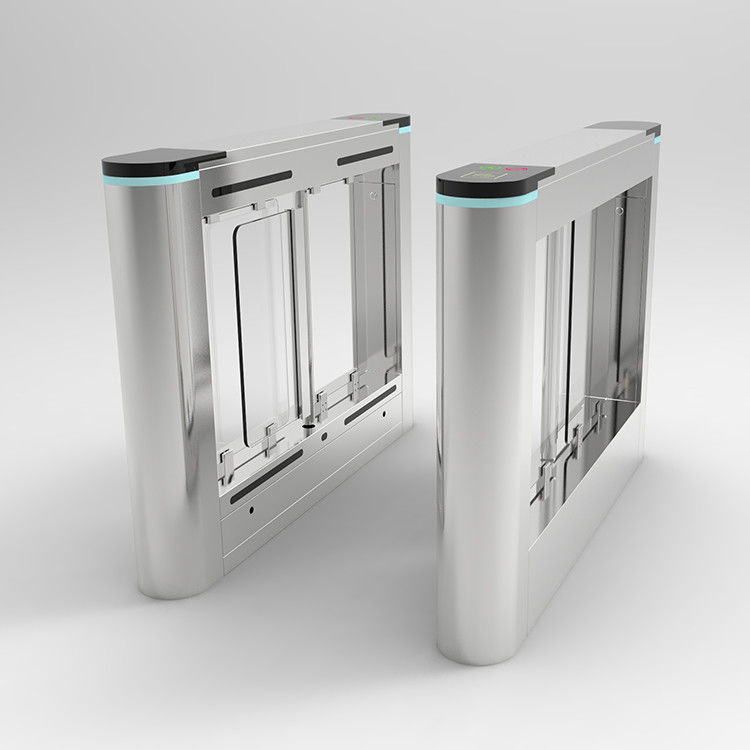

Modern Biometric Glass Turnstile Gate With Face Recognition 1
