Pedestrian Swing Barrier Turnstile 600mm Channel Width Waterproof Lobby Turnstiles

Pedestrian Swing Barrier Turnstile 600mm Channel Width Waterproof Lobby Turnstiles

Pedestrian Swing Barrier Turnstile

Swing Barrier Turnstile 600mm

Waterproof Lobby Turnstiles

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Turnstile Entrance Gates
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
SUS 304 Stainless Steel
Brushless DC Motor
Power Supply:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Waterproof Swing Barrier Gate Security Barrier Gate for Office Building

Product Description

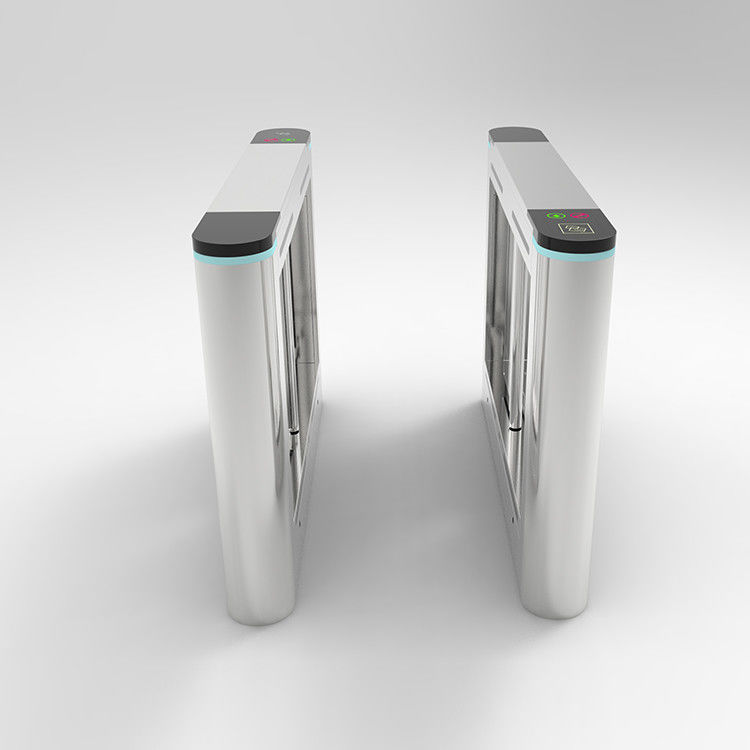

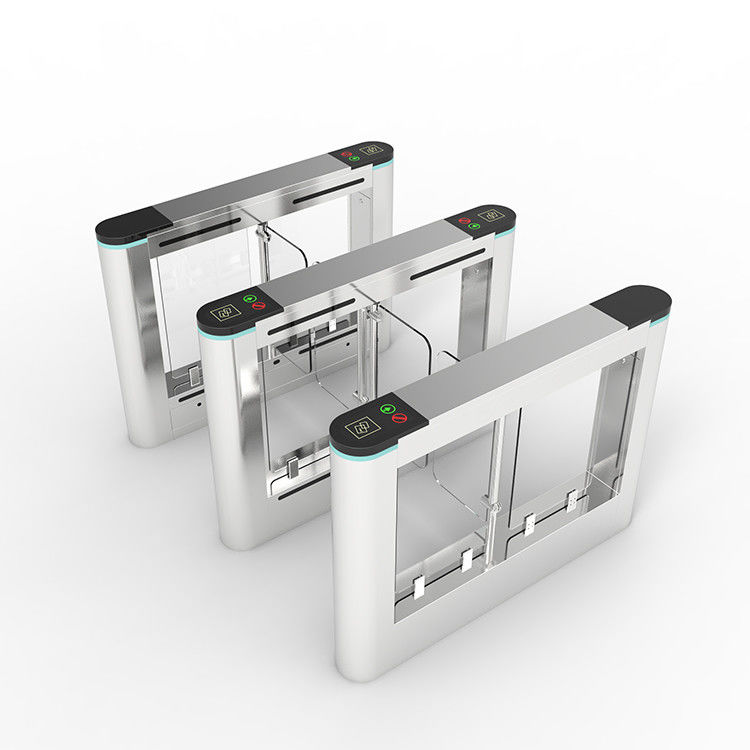

AG-HX36141802 Waterproof pedestrian turnstile is an essential part of any high traffic public area to regulate and control pedestrian flow. It is ideal for outdoor installations and can be placed in various settings such as parks, stadiums, and train stations. The turnstile is designed to withstand harsh weather conditions and has a robust construction to ensure durability and longevity of the product.


The outdoor indoor pedestrian turnstiles AG-HX36141802 is suitable for low to medium security areas. The turnstile has various control methods such as RFID cards, fingerprint recognition, and facial recognition. With these control methods, the turnstile can be configured to allow only authorized personnel to pass through.


One of the primary advantages of the outdoor pedestrian turnstile is that it helps to manage people flow efficiently. By installing the turnstiles in areas with high pedestrian traffic, organizations can reduce congestion and prevent overcrowding. Additionally, the turnstiles help to prevent unauthorized access into restricted areas, thereby enhancing security in the area.


Another benefit of the outdoor pedestrian turnstiles is their ease of use. They are designed to have simple and easy-to-use interfaces that allow people to pass through easily. This feature is particularly useful in settings where people with different abilities use the turnstiles.


In conclusion, the outdoor pedestrian turnstiles is an essential part of public spaces that require effective management of pedestrian flow and enhanced security. They are easy to use, durable, and weather-resistant, making them an excellent investment for any organization seeking to improve security while managing people flow.


Pedestrian Swing Barrier Turnstile 600mm Channel Width Waterproof Lobby Turnstiles 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.


Pedestrian Swing Barrier Turnstile 600mm Channel Width Waterproof Lobby Turnstiles 1
