Waterproof Turnstile Barrier Gate Sus 304 Stainless Steel Turnstile Barrier Swing

Waterproof Turnstile Barrier Gate Sus 304 Stainless Steel Turnstile Barrier Swing

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Standard Channel Width:
Dry Contact
Product Name:
Waterproof Swing Barrier Gate
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Access Rate 30P/M Optical Turnstile Swing Turnstile Gate

Product Description

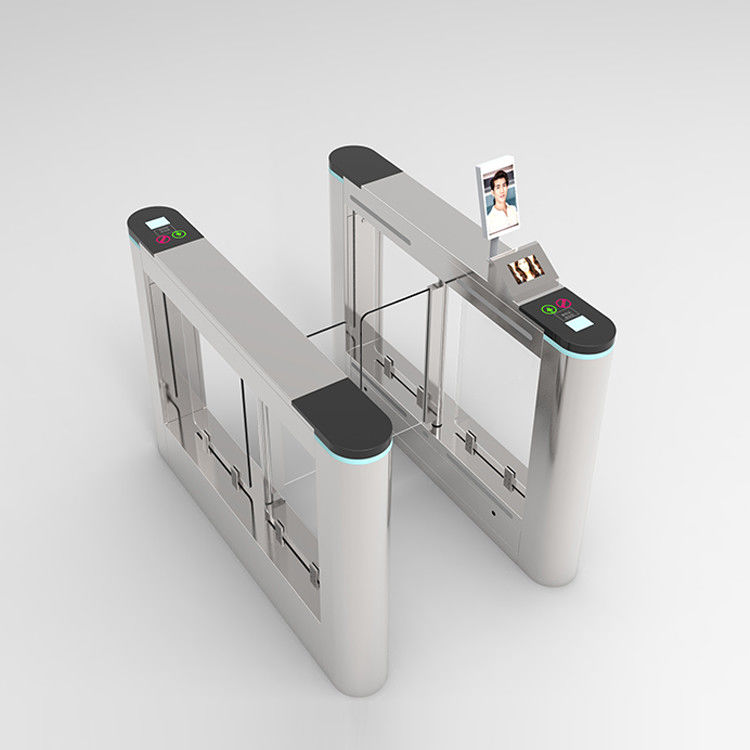

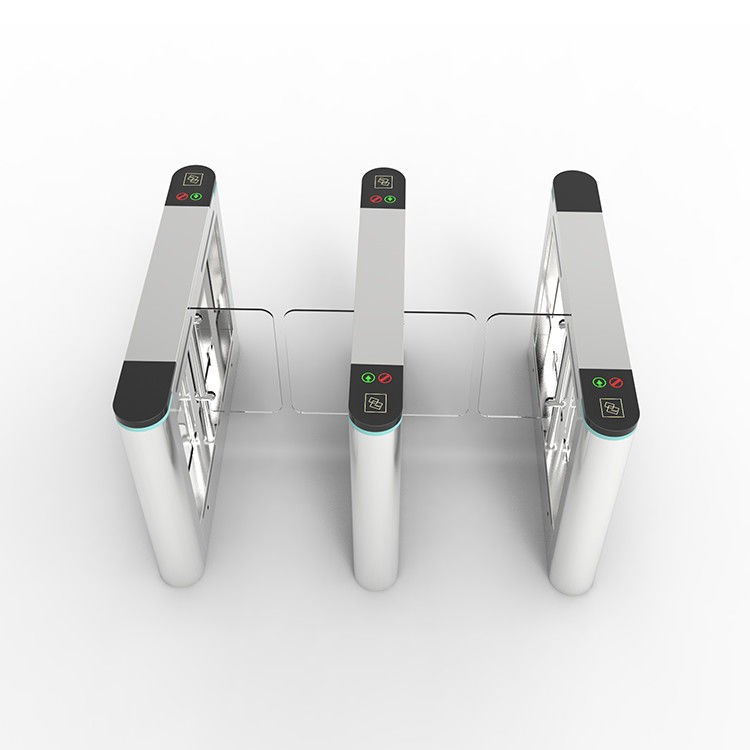

AG-HX36141802 swing barrier gate is an crucial tool for ensuring the security and safety of foot traffic in both indoor and outdoor settings is the waterproof pedestrian turnstile. It is intended to give limited areas with controlled access and to stop illegal guests from entering. The turnstile's waterproof characteristic makes it perfect for usage in outdoor environments including shool, sporting venues, and football playground.


The turnstile gate structure is made of high-quality stainless steel, with a waterproof grade of IP64, which guarantees its resistance to water, dust, and extreme weather conditions. This feature ensures that the turnstile can continue to function effectively without being damaged or degraded by water over time.


The turnstile provides several control modes such as push button, card reader or fingerprint recognition which makes it easy to operate the turnstile gate without the need for physical contact, thereby reducing the spread of germs and viruses. This feature makes the turnstile suitable for use in public areas where hygiene and sanitation are of utmost importance.


In addition, the turnstile gate is equipped with a self-recovery mechanism, which ensures that the turnstile gate returns to its default position after entry or exit. The turnstile also has an anti-tailgating feature that prevents two or more people from passing through the turnstile gate at the same time, ensuring only one person at a time can access the restricted area.


In conclusion, the waterproof pedestrian turnstile is an important tool for the management of pedestrian traffic in areas exposed to water. Its features make it an ideal solution for public facilities. The turnstile gate provides safe and secure access control, and the waterproof rating guarantees its durability, providing efficient and reliable functionality.



Waterproof Turnstile Barrier Gate Sus 304 Stainless Steel Turnstile Barrier Swing 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.

Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.


Waterproof Turnstile Barrier Gate Sus 304 Stainless Steel Turnstile Barrier Swing 1

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.


Waterproof Turnstile Barrier Gate Sus 304 Stainless Steel Turnstile Barrier Swing 2
