Custom Swing Barrier Turnstile Security Door For Disabled People

Custom Swing Barrier Turnstile Security Door For Disabled People

Custom Swing Barrier Turnstile

Swing Barrier Turnstile Security Door

FCC Swing Gate Turnstiles

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Outdoor Indoor Wide Access Turnstiles For Disabled People Turnstile Security Doors


Product Description

AG-HX36141802 outdoor/Indoor Wide Access Turnstiles – the perfect solution for securing your access points, both for outdoor and indoor areas. With its sturdy and durable design, these turnstiles can withstand harsh environmental conditions, making them ideal for use in areas prone to extreme weather conditions.

Designed with wider access points, these turnstiles provide convenient access for wheelchairs and other mobility devices, making them fully inclusive for all users. The turnstiles can be controlled through a variety of access control systems, from card readers to biometric scanners, ensuring maximum security and control over access to your property.

The wide access turnstiles come with a range of customizable options, including various finishes and materials, to ensure that they blend seamlessly with your existing architectural design. They also come with a range of additional features, including LED lighting, user counters, and acoustic alarms, providing an extra layer of functionality and security.

With their reliable performance, ease of use, and high level of security, the outdoor/Indoor wide access turnstiles are the perfect choice for anyone looking to secure their access points without compromising on convenience. Whether you need to control access to your office building or secure a public facility, these turnstiles are the ideal solution for you.

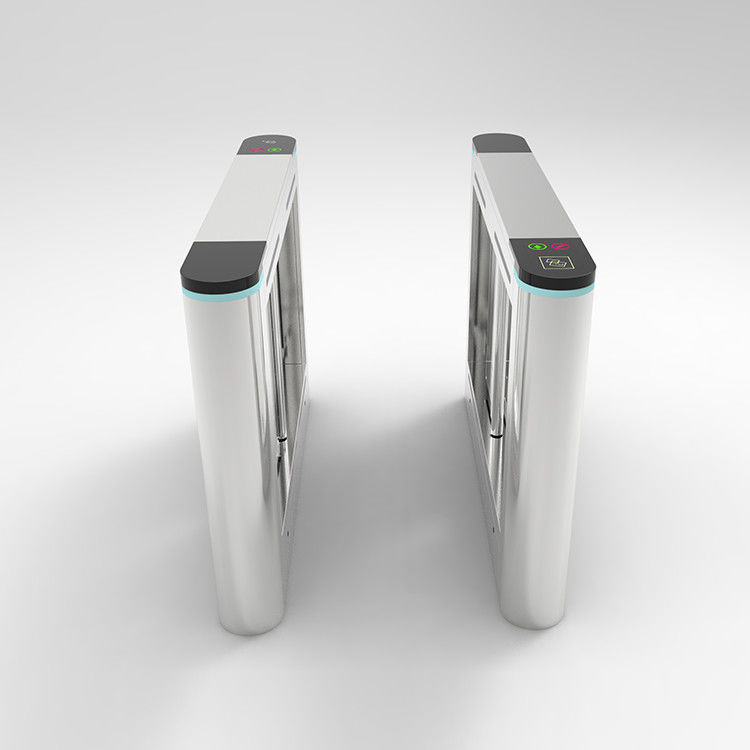

Custom Swing Barrier Turnstile Security Door For Disabled People 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

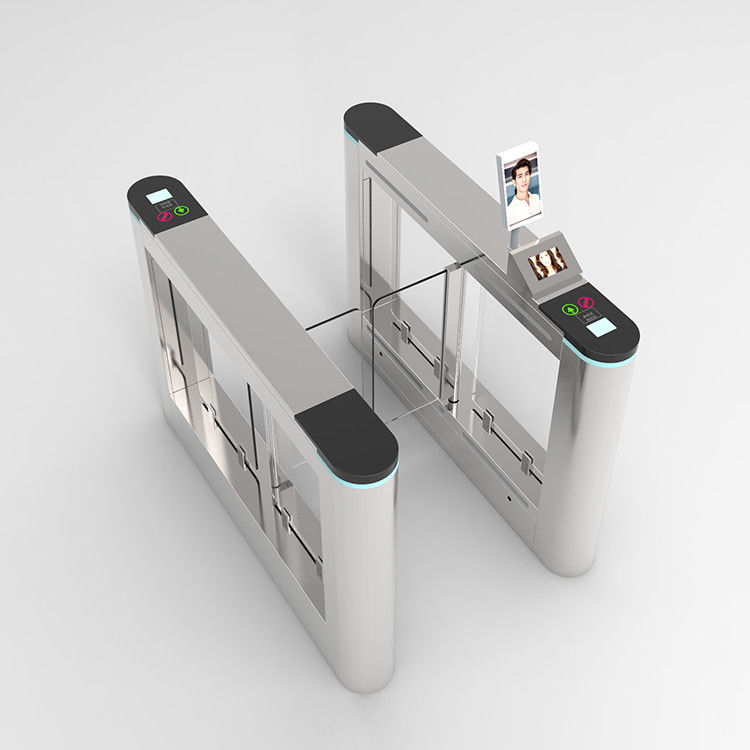

Custom Swing Barrier Turnstile Security Door For Disabled People 1

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.
