Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile

Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Product Description

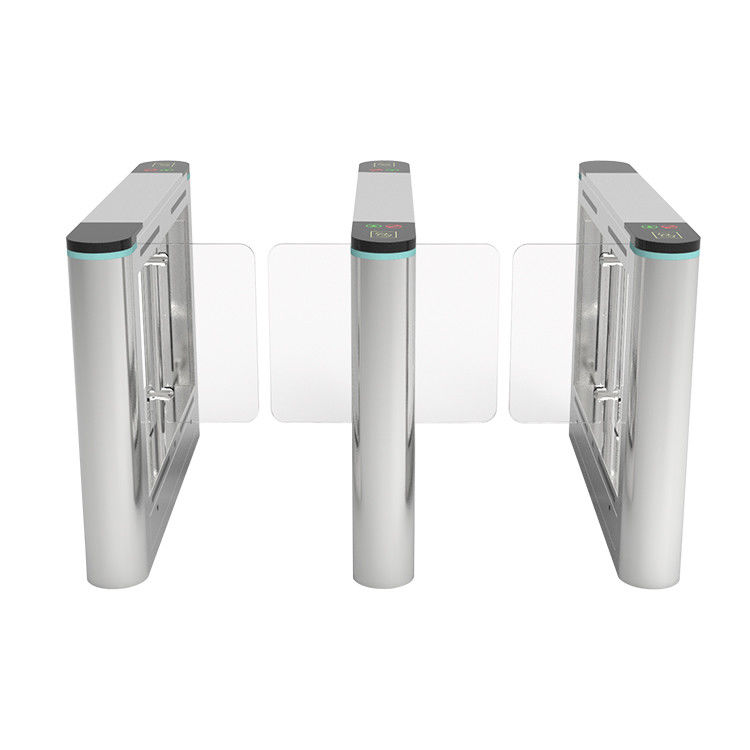

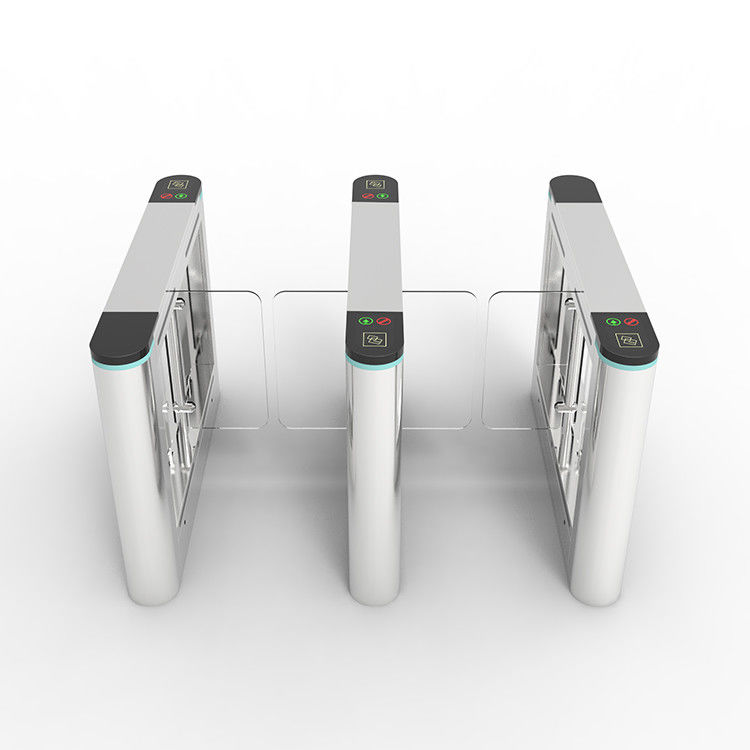

Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile

Product Description

Turnstiles for pedestrians were once used to monitor and limit access to specific locations or structures. For those with disabilities who need wheelchairs, crutches, or other mobility aids, however, this frequently presented a barrier. Thankfully, technological developments have led to the development of broader access turnstiles, which enable disabled individuals to pass through pedestrian access control zones quickly and safely.


Wide lane access turnstiles AG-HX36141802 is created with the needs of disabled people in mind. The turnstiles are wider than usual, making it simpler for those in wheelchairs and other forms of mobility impairment to pass through them. They are also more accessible for people who have trouble bending over or stepping over obstacles.


Moreover, the turnstile's control mechanism has been modified to accommodate individuals with disabilities. For instance, the system might allow for a longer window of time to pass through the gate.


AG-HX36141802 is a useful solution that raises the inclusivity and accessibility of pedestrian access control zones for individuals with disabilities. They make sure that everyone can navigate these spaces securely and easily, despite whatever mobility issues they may have. In the end, this will promote a society that values and respects everyone's rights and is more inclusive and accessible.




Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.


Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile 1

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.


Wide Lane Turnstile Automatic Security Barrier Gate System Turnstile 2
