900mm Passage WidthPedestrian Turnstile 304 Stainless Steel Security Turnstile

900mm Passage WidthPedestrian Turnstile 304 Stainless Steel Security Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
Payment & Shipping Terms
Minimum Order Quantity
Product Description

900mm Passage WidthPedestrian Turnstile 304 Stainless Steel Security Turnstile

Product Description

Pedestrian access gate is a device that controls access to a walkway or pathway. It is commonly used in various public areas such as subway stations, airports, banks, and office buildings. The pedestrian access gate AG-HX36141802 is designed to restrict unauthorized access while allowing smooth and secure pedestrian flow.


The gate is made of high-quality materials, such as steel and plesiglass, ensuring durability and longevity. It can be installed in a range of settings including indoor and outdoor environments, with weather-resistant features making it suitable for use in various weather conditions.


The pedestrian access gate also features a variety of security measures including anti-tailgating and anti-climbing features, which ensure that only authorized individuals are granted access. These security features make it ideal for high-security areas, such as airports or government buildings.


The gate is easy to use, with various access control options available, such as remote controller, card readers, and biometric scanners. It can also be customized to match specific design requirements and can be integrated with existing security systems.


In summary, the pedestrian access gate is a reliable and secure solution for controlling pedestrian traffic in a range of environments. Its flexibility, durability, and advanced security features make it an ideal choice for businesses and organizations that prioritize safety and security.

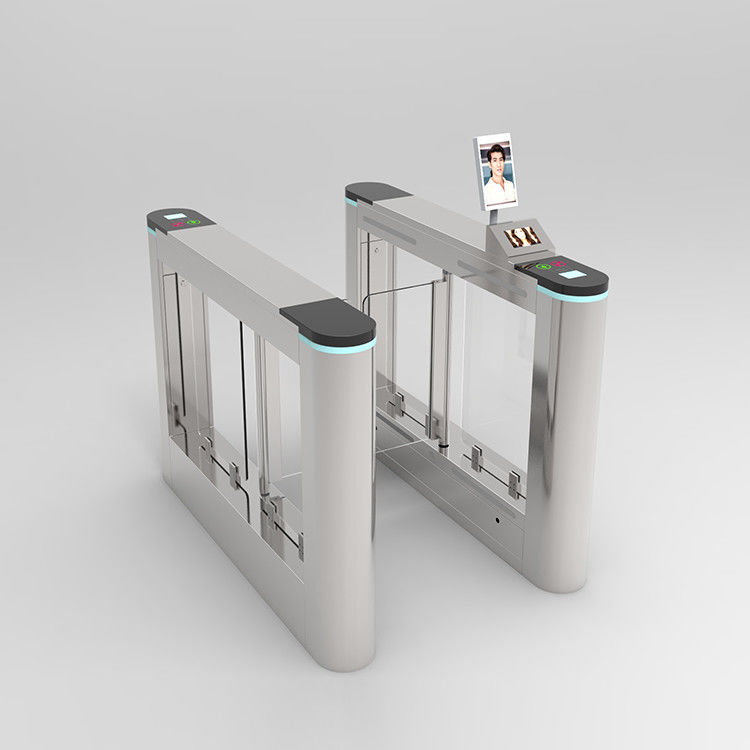

900mm Passage WidthPedestrian Turnstile 304 Stainless Steel Security Turnstile 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

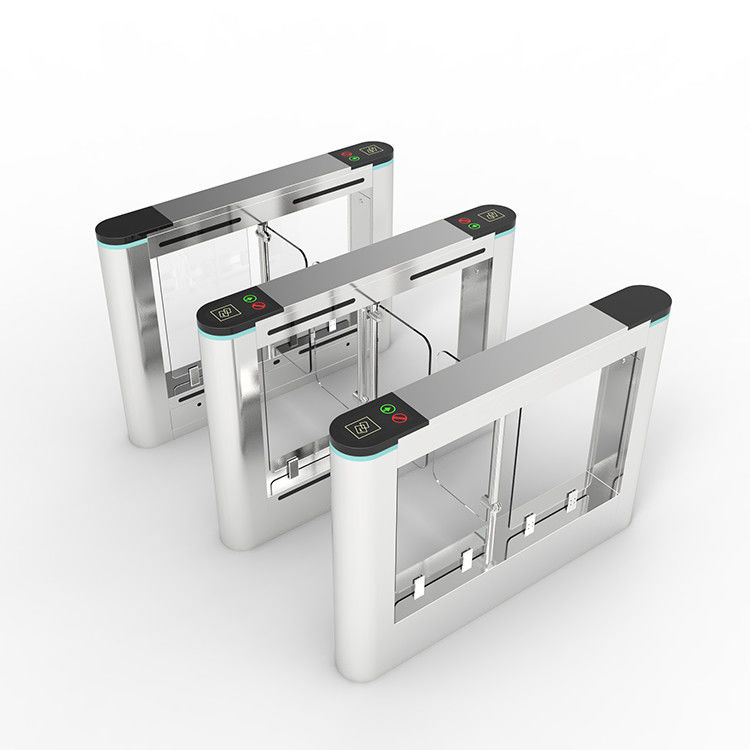

900mm Passage WidthPedestrian Turnstile 304 Stainless Steel Security Turnstile 1
