Pedestrian Swing Barrier Turnstile SUS304 Stainless Steel With RFID Reader

Pedestrian Swing Barrier Turnstile SUS304 Stainless Steel With RFID Reader

Pedestrian Swing Barrier Turnstile

Swing Barrier Turnstile SUS304

Pedestrian Swing Gate Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Swing Barrier Gate Turnstile
Brushless DC Motor
Standard Channel Width:
4 Pairs
SUS304 Stainless Steel
Power Supply:
Single Core & Double Core
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Turnstile Barrier Swing Gate Turnstile Access Control Compatible With RFID Reader

Product Description

Access to a walkway or footpath is controlled by a pedestrian access gate. It is frequently used in a variety of public places, including airports, banks, and business buildings. The pedestrian entrance gate AG-HX36141802 is made to prevent unlawful access while facilitating a safe and orderly flow of pedestrians.


High-quality materials, including steel or acrylic, were used in the gate's construction to ensure its durability and lifespan. With features that make it weather-resistant, it can be put in both indoor and outdoor settings and used in a variety of weather conditions.


The pedestrian access gate has a number of security elements, such as anti-tailgating and anti-climbing mechanisms, to make sure that only people with permission are allowed entry. It is perfect for high-security locations, such airports or government buildings, thanks to these security measures.


The gate is simple to operate and offers a number of access control options, including remote controller, card readers, and biometric scanners. It can be tailored to fit certain design specifications and integrated with current security systems.


In conclusion, the pedestrian access gate is an effective and safe way to manage pedestrian traffic in a variety of settings. For enterprises and organizations that place a high priority on safety and security, its adaptability, toughness, and cutting-edge security features make it an excellent option.

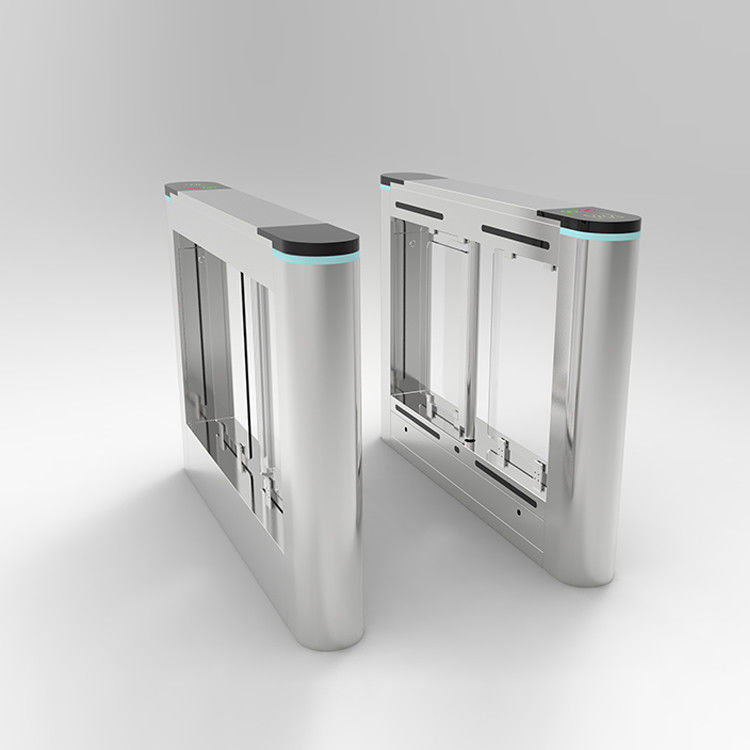

Pedestrian Swing Barrier Turnstile SUS304 Stainless Steel With RFID Reader 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

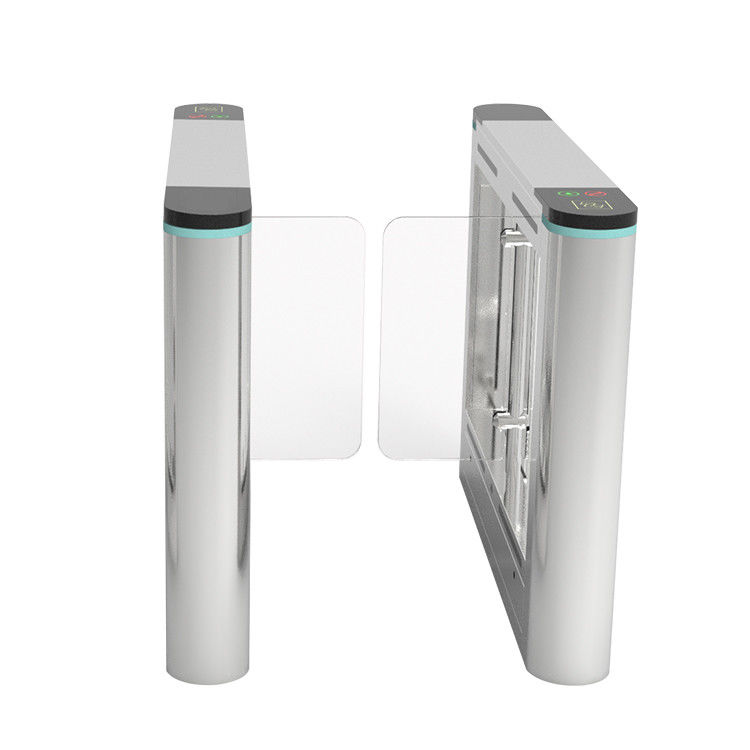

Pedestrian Swing Barrier Turnstile SUS304 Stainless Steel With RFID Reader 1
