Turnstile Gate Access Control Compatible With Biometric Access control System

Turnstile Gate Access Control Compatible With Biometric Access control System

Place of Origin:

China

Brand Name:

HPT

Certification:

CE, FCC, ISO

Model Number:

AG-HX36141802

Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
Model:
AG-HX36141802
Dimension:
1400*185*1020mm
Material:
SUS 304 Stainless Steel
Motor:
Brushless DC Motor
Thickness:
Top:1.5mm+body1.2mm
Standard Channel Width:
600~900mm
Sensor:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
AC100-240V
Motor Voltage:
DC24V
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

Turnstile Gate Access Control Compatible With Biometric Access control System

Product Description

The AG-HX36141802 pedestrian access gate is an efficient and reliable solution for controlling pedestrian access to restricted areas. It is designed to provide a high level of security, accuracy, and convenience to users. Our pedestrian access gates are available in a range of models to meet various needs and are ideal for use in a variety of settings, including government facilities, businesses, airports, sports facilities, and universities.



Our pedestrian access gates are designed for easy installation and operation. They feature a compact and durable design that is available in a variety of finishes and colors to complement any architectural style. They are also highly customizable, allowing customers to choose from a range of options such as card readers, fingerprint scanners, and keypads.



They are controlled by a microprocessor-based controller that provides reliable and accurate control of entry and exit points. They also feature high-quality sensors and actuators that ensure smooth and reliable operation even in high-traffic environments.



We take pride in our commitment to product quality, and we offer comprehensive warranty coverage on all of our pedestrian access gates. We also provide ongoing technical support and maintenance services to ensure our customers' continued satisfaction with our products.



In conclusion, our pedestrian access gates are a reliable and efficient solution for controlling pedestrian access to restricted areas. They are easy to install and operate, highly customizable, and backed by comprehensive warranty coverage and ongoing technical support services.

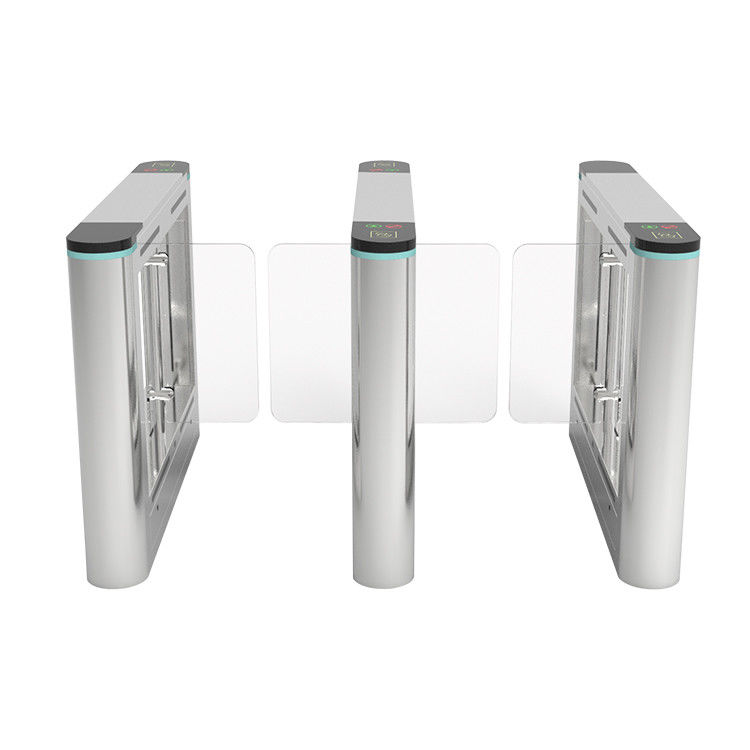

Turnstile Gate Access Control Compatible With Biometric Access control System 0



Specification

Specification
Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



Functionality



1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.



2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.



3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.



4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.



5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.



6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.



7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.



Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

Projects

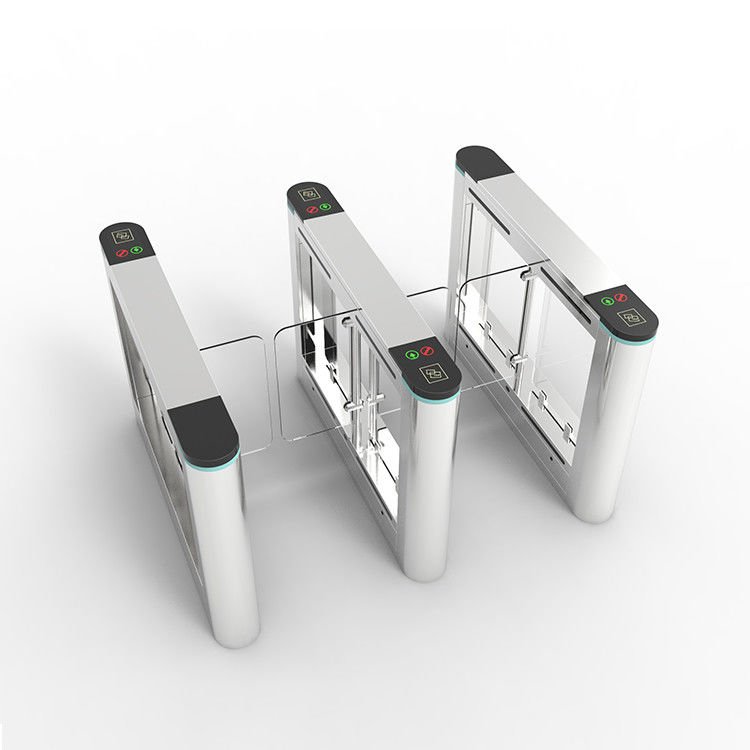

Turnstile Gate Access Control Compatible With Biometric Access control System 1
