Plexiglass Turnstile Bidirectional Turnstile Gate Access Control System

Plexiglass Turnstile Bidirectional Turnstile Gate Access Control System

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
Motor Voltage:
RS485 TCP/IP, RS232, Dry Contact
Payment & Shipping Terms
Minimum Order Quantity
Product Description

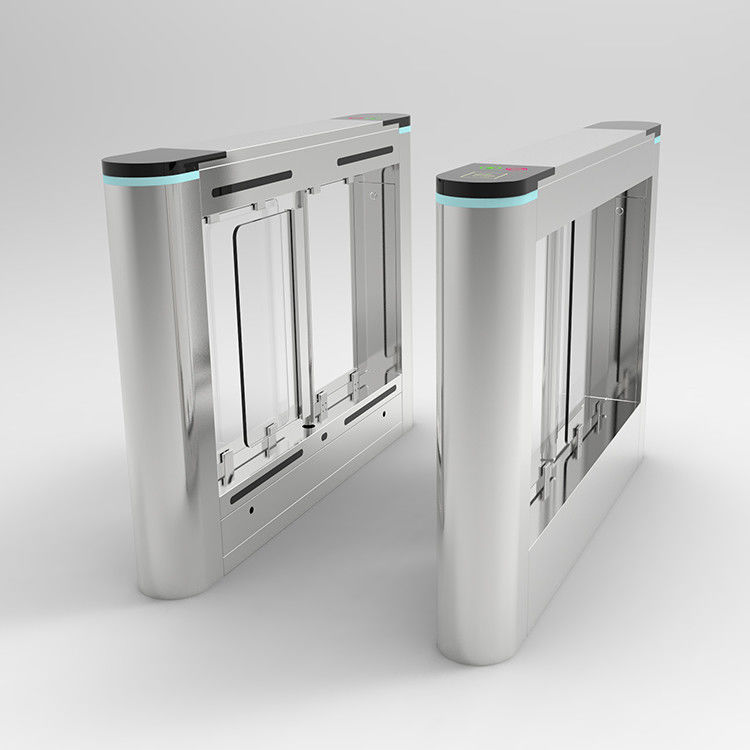

Plexiglass Turnstile Bidirectional Turnstile Gate Access Control System

Product Description

The AG-HX36141802 swing barrier gate is an effective and dependable way to manage pedestrian access to restricted locations is to use a pedestrian access gate. It is made to offer users a high level of security, precision, and convenience. Our pedestrian access gates are perfect for usage in a variety of situations, including government buildings, corporations, airports, sporting venues, and universities. They are available in a range of styles to accommodate different needs.


Our pedestrian entry gates are made to be simple to install and use. They come in a range of finishes and colors to match any architectural style, with a compact and robust construction. Additionally, they offer a wide choice of alternatives for clients to select from, including card readers, fingerprint scanners, and remote controller etc.


A microprocessor-based controller that provides dependable and accurate control of entry and exit points operates our pedestrian access gates. Additionally, they have high-quality sensors and actuators that guarantee dependable performance even in busy conditions.


All of our pedestrian access gates come with a full guarantee since we take pride in our dedication to product quality. To guarantee our customers' continued happiness with our goods, we also offer ongoing technical support and maintenance services.


The bottom line is that our pedestrian access gates are a dependable and effective way to manage pedestrian access to restricted locations. They come with a thorough warranty and continuous technical support services, are simple to install and use, and are extremely configurable.

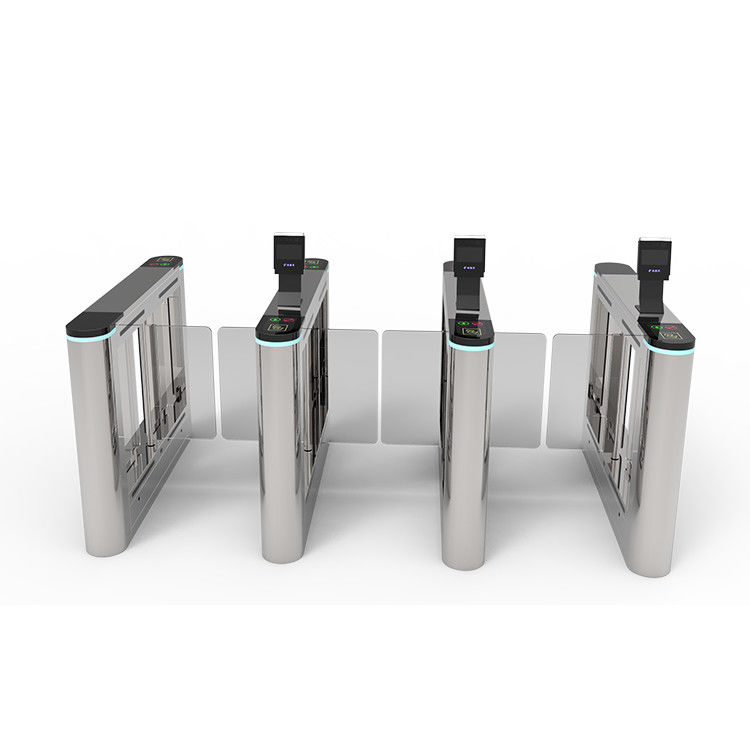

Plexiglass Turnstile Bidirectional Turnstile Gate Access Control System 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.


Plexiglass Turnstile Bidirectional Turnstile Gate Access Control System 1
