304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile

304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile

Place of Origin:

China

Brand Name:

HPT

Certification:

CE, FCC, ISO

Model Number:

AG-HX36141802

Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
Model:
AG-HX36141802
Dimension:
1400*185*1020mm
Material:
SUS 304 Stainless Steel
Motor:
Brushless DC Motor
Thickness:
Top:1.5mm+body1.2mm
Standard Channel Width:
600~900mm
Sensor:
4 Pairs Of Active Infrared Intrusion Detector
Power Supply:
AC100-240V
Communication:
RS485 TCP/IP, RS232, Dry Contact
Application:
Office\School\Airport\Subway\Outdoor, Office, Apartment Door, School Etc
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile

Product Description

The product we introduce here is the Access Control Turnstile Gate AG-HX36141802. This Access Control Turnstile Gate is a modern and advanced security solution designed to allow the restricted entry and exit of people in public areas, commercial premises, and other secure locations.



Our Access Control Turnstile Gate is an efficient and reliable safety system that assures the safety and security of your establishment. The system is made with high-quality materials, and it comes equipped with state-of-the-art technology to ensure that you have complete control over the access of people to your premises.



With the Access Control Turnstile Gate, you can easily control the flow of people entering and exiting your building or area. The turnstile gate can be customized to meet your specific security requirements, such as multiple access control modes, including RFID, biometric, barcode sensors, and more.



Our turnstile gates are designed to be versatile, user-friendly, and secure, allowing easy and quick access for authorized personnel while keeping unwanted individuals out. They are also durable, rugged, and easy to maintain, ensuring long-lasting performance and reliability for many years.



Whether you need an Access Control Turnstile Gate for your office building, school, gym, or any other facility, our products are designed to meet your security needs. Trust us for an excellent security solution that provides complete access control and keeps your employees, visitors, and assets safe from threats.

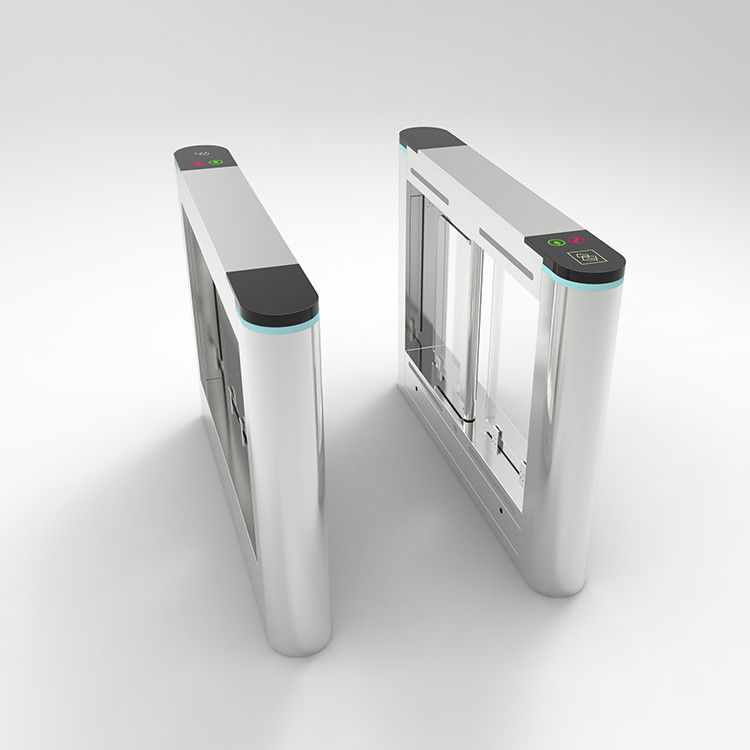

304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile 0



Specification

Specification
Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



Functionality



1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.



2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.



3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.



4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.



5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.



6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.



7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.



Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

Projects

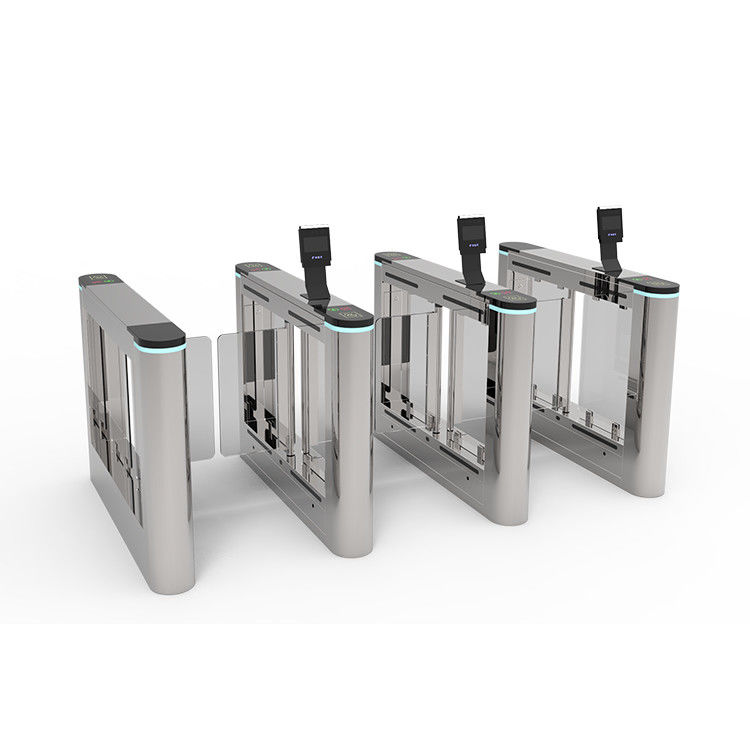

304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile 1

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.

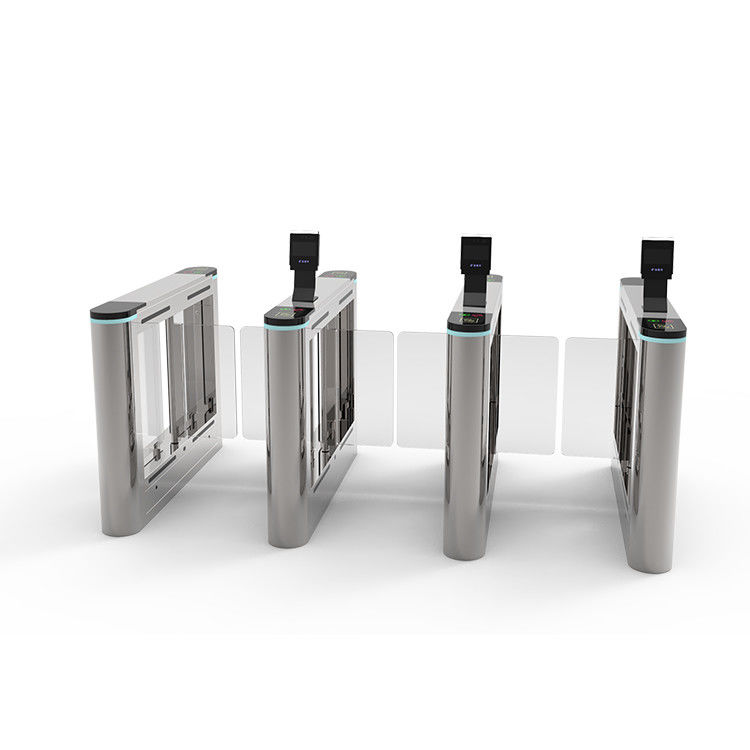

304 Stainless Steel Access Control Turnstile Speed Barriers Basic Access Control Turnstile 2
