Access Control Swing Turnstile Barrier Compatible With Push Release Button

Access Control Swing Turnstile Barrier Compatible With Push Release Button

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Office\School\Airport\Subway\Outdoor, Office, Apartment Door, School Etc
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Access Control Swing Turnstile Barrier Compatible With Push Release Button

Product Description

The access control turnstile gate AG-HX36141802 is the product that we are introducing here. This Access Control Turnstile Gate is a cutting-edge security system created to provide the constrained admission and exit of individuals in public spaces, business establishments, and other secure sites.


We use the effective and dependable turnstile gate security system ensures the safety and security of your organization. High-quality components are used in the system's construction, and cutting-edge technology is included to guarantee that you have total control over who has access to your property.


You can easily manage the flow of persons entering and leaving your building or area with the Access Control Turnstile Gate. The turnstile gate can be modified to match your unique security needs, including the addition of various access control methods such as RFID, biometric, barcode sensors, and others.


Our turnstile gates are made to be adaptable, simple to operate, and secure, allowing authorized staff to enter quickly and easily while keeping unauthorized people out. Also, they are strong, tough, and simple to maintain, guaranteeing years of dependable performance.


Our solutions are made to suit your security requirements, whether you require an Entry Control Turnstile Gate for your office building, school, gym, or any other facility. Count on us for a great security system that offers total access control and protects your staff, guests, and assets from dangers.

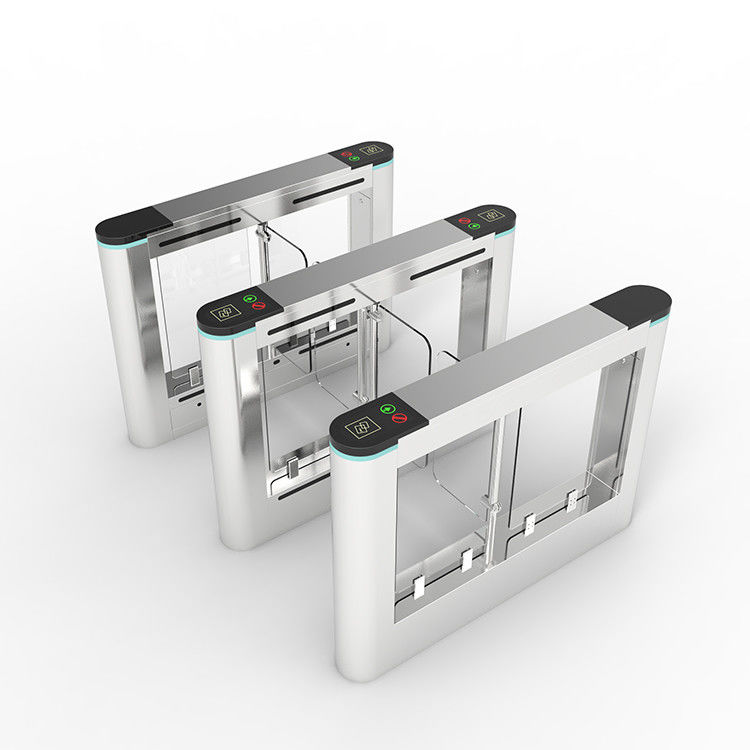

Access Control Swing Turnstile Barrier  Compatible With Push Release Button 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

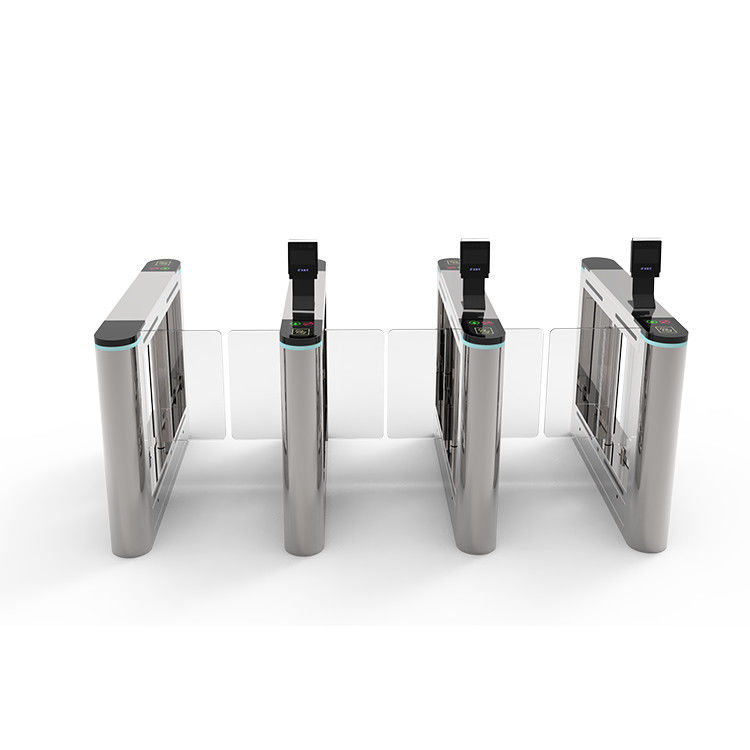

Access Control Swing Turnstile Barrier  Compatible With Push Release Button 1
