Speedstile Swing Gate Turnstile , RFID Card Turnstile For Office / School

Speedstile Swing Gate Turnstile , RFID Card Turnstile For Office / School

Speedstile Swing Gate Turnstile

School Speedstile Swing Gate

RFID Card Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Half Height Turnstile
SUS 304 Stainless Steel
Brushless DC Motor
Standard Channel Width:
4 Pairs Of Active Infrared Intrusion Detector
Office\School\Airport\Subway\Outdoor, Office, Apartment Door, School Etc
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Entrance Turnstile Lane Turnstile Siwng Barrier Compatible With Biometric And Rfid Card Reader

Product Description

The pedestrian turnstile gate AG-HX36141802 is a type of access control system that restricts people from entering or exiting a specific area. It is widely used in office buildings, banks, airports, subways, and other public places to ensure security and safety.

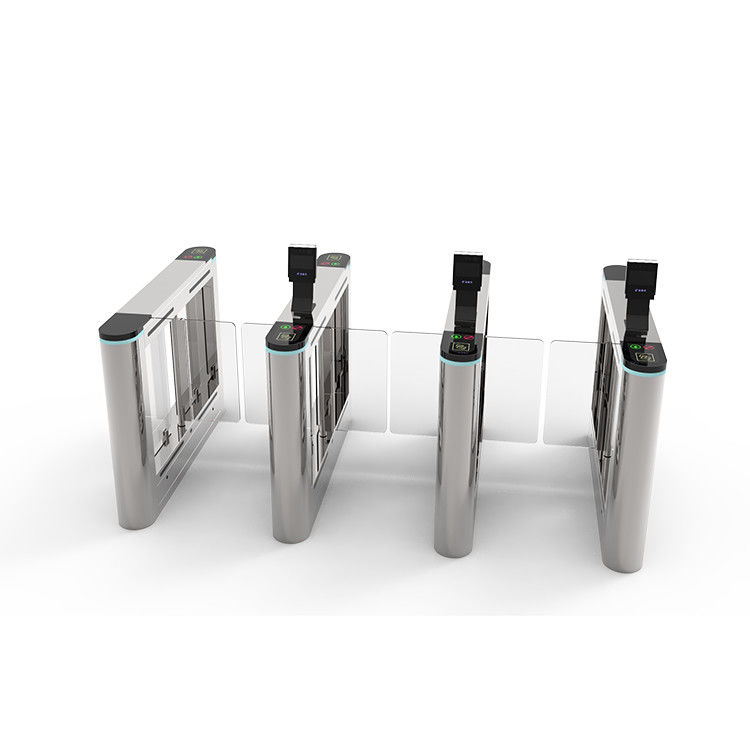

Speedstile Swing Gate Turnstile , RFID Card Turnstile For Office / School 0



Product Size 1400*185*1020mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED


1. Stable and reliable performance: The pedestrian turnstile gate is made of high-quality materials and has a strong structure, making it durable and long-lasting.


2. Efficient access control: The gate provides a fast and efficient way to control pedestrian traffic, allowing only authorized individuals to enter or exit the restricted area.


3. User-friendly design: The gate is designed with user convenience and safety in mind, featuring smooth and silent operation, anti-pinch sensors, and automatic alarm systems.


4. Flexible customization: The gate can be customized to fit different requirements, including different sizes, colors, and materials.




1. AG-HX36141802 swing barrier gate arms opening speed can be set to meet various scenes requirements.


2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.


3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.


4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.


5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.


6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.


7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.

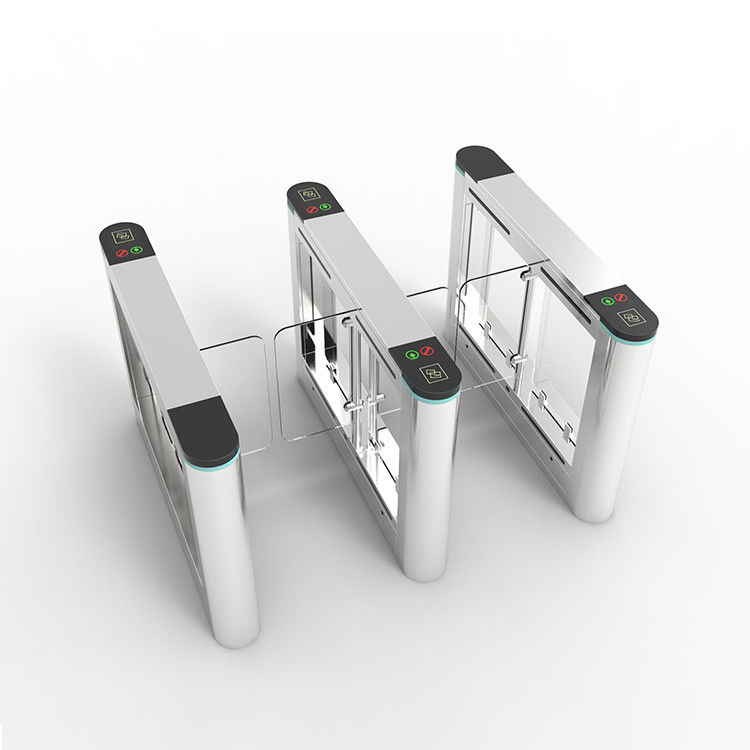

Speedstile Swing Gate Turnstile , RFID Card Turnstile For Office / School 1

About Us

Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.


Speedstile Swing Gate Turnstile , RFID Card Turnstile For Office / School 2
