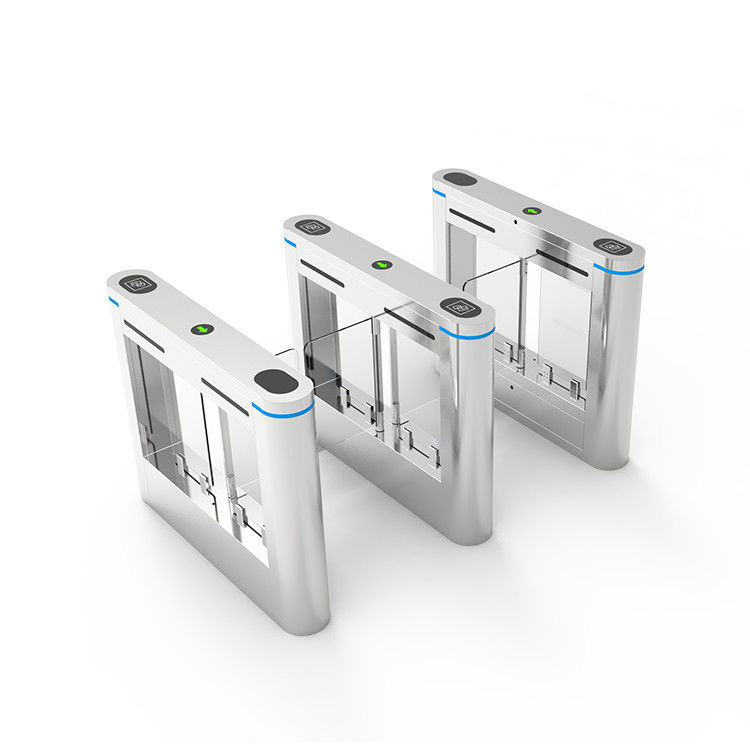

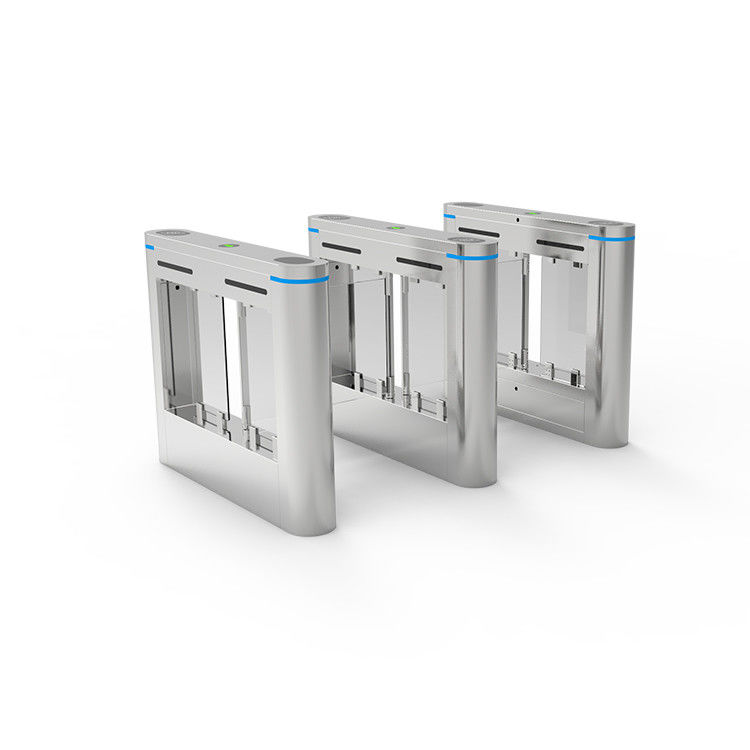

AG-PX36121802 Community Turnstile Security Systems Turnstile Access Control For Gym
Our Small Swing Barrier Gate AG-PX36121802, the perfect solution for those who require controlled access in small and narrow spaces. Designed with durability and reliability in mind, this security gate is crafted using high-quality materials to ensure years of trouble-free use.
This compact barrier gate features a swing arm that can open up to 90 degrees, allowing for quick and easy access control. It is also equipped with adjustable speed control, ensuring smooth and consistent operation every time. The gate is compatible with a variety of access control systems, including keypads, card readers, and remotes for added convenience.
Installation is a breeze with our simple and straightforward instructions. The lightweight and compact design of the gate also makes it easy to relocate if needed.
Whether you're securing a parking lot, controlling access to a building, or simply need to restrict access to a specific area, the Small Swing Barrier Gate is the cost-effective solution you need. Contact us today to learn more!
Please find product video in youtube link: https://youtu.be/mouvibNBcUM
Specification
| Specification | |
| Product Size | 1200*185*980mm |
| Material | SUS 304 stainless steel |
| Thickness | 1.2/1.5mm+1.0mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1, When this swing barrier gate is turned on, it performs a fault self-check and sounds a warning siren if it finds any problems. When the electricity is turned off and on, the turnstile will automatically open and close.
2, Control signal or button or remote control of the peripherals is available to achieve control accessing in single direction/bi direction.
3, Pass Authorization Rule: After visitor passes through the swing turnstile gate, the turstile arm automatically returns to its original position. If no access is made within the specified time, the system will cancel the passing authority.
4, The gate is equipped with high brightness LED accessing indicator
5, This swing barrier gate turnstile has audible and visual alarm. When the gate is in the standby state, the LED is blue; when people pass through the gate, it is green; and when people try to enter the gate passage without permission, the LED turns red and the buzzer in the gate beeps to alert people to the authorization violation.
6, The turnstile gate has a "Anti-Collision" feature that prevents damage from collisions by stopping the driving motor if something strikes the gate too hard.
7, The swing barrier gate system can be connected with It can be connected to many readers, including facial recognition, RFID, and fingerprint scanners etc. Its motherbroad has a fire protection port that can receive signals from the fire protection equipment, and when a fire alarm or blackout is detected, the gate barrier will automatically open.
Project
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
