AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors

AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Optical Swing Barrier Gate
Optical Gate
Net Weight:
Single Core 38kg/dual Core 44 Kg
Power Supply:
1 Year
Payment & Shipping Terms
Product Description

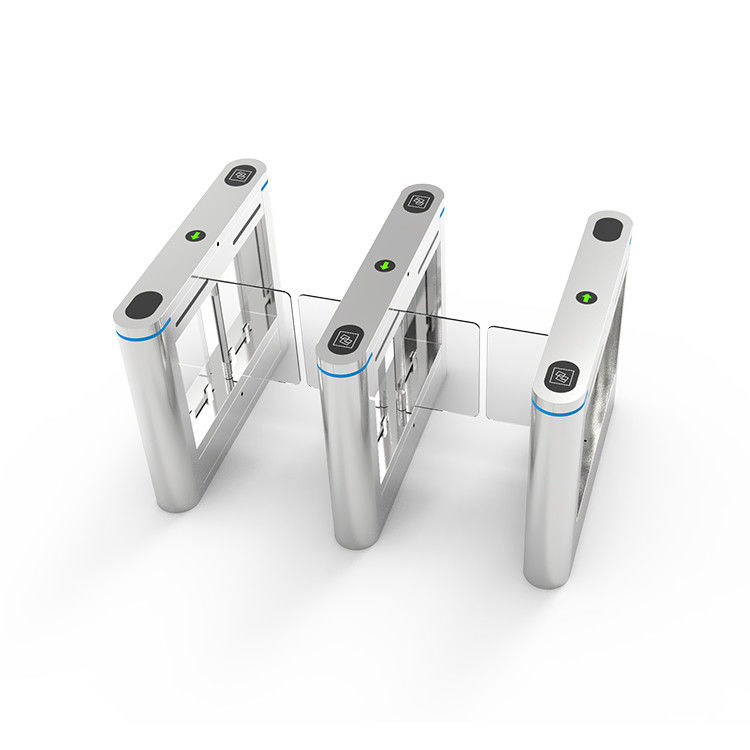

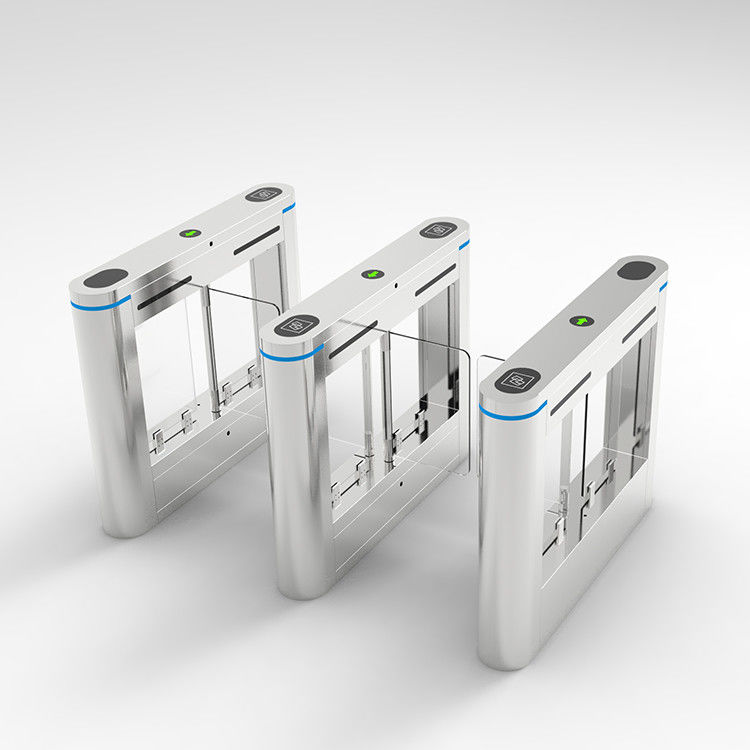

AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors

Our small swing barrier optical turnstile AG-PX36121802 - the perfect solution for controlling pedestrian access in small and medium-sized areas.

Our turnstile offers a sleek and modern design that seamlessly integrates with any interior, making it the ideal choice for high-end facilities.

Our optical turnstile is designed to provide reliable and secure access control in a variety of settings, including offices, schools, libraries, and other public spaces. It features a tamper-resistant casing and safety sensors that prevent unauthorized access, ensuring the safety and security of your premises.

The turnstile also boasts advanced optical detection technology that accurately detects the direction of pedestrian traffic, which ensures that only authorized personnel can enter your facility. Additionally, our small swing barrier is easy to operate, making it ideal for busy environments where people need to move through quickly.

The turnstile is constructed using high-quality materials, ensuring it can withstand regular use and harsh environmental conditions. It also offers multiple access methods, including RFID, fingerprint recognition, and facial recognition, making it perfect for facilities with high-security requirements.

In summary, our Small Swing Barrier Optical Turnstile is a versatile, secure, and stylish solution for controlling pedestrian access in small and medium-sized areas. It provides reliable access control and boasts advanced security features, ensuring your facility remains safe and secure. Contact us now to learn more about our Small Swing Barrier Optical Turnstile and how it can benefit your business.

AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors 0

Please find product video in youtube link:


Product Size 1200*185*980mm
Material SUS 304 stainless steel
Thickness 1.2/1.5mm+1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors 1


1, When this swing barrier gate is turned on, it performs a fault self-check and sounds a warning siren if it finds any problems. When the electricity is turned off and on, the turnstile will automatically open and close.

2, Control signal or button or remote control of the peripherals is available to achieve control accessing in single direction/bi direction.

3, Pass Authorization Rule: After visitor passes through the swing turnstile gate, the turstile arm automatically returns to its original position. If no access is made within the specified time, the system will cancel the passing authority.

4, The gate is equipped with high brightness LED accessing indicator

5, This swing barrier gate turnstile has audible and visual alarm. When the gate is in the standby state, the LED is blue; when people pass through the gate, it is green; and when people try to enter the gate passage without permission, the LED turns red and the buzzer in the gate beeps to alert people to the authorization violation.

6, The turnstile gate has a "Anti-Collision" feature that prevents damage from collisions by stopping the driving motor if something strikes the gate too hard.

7, The swing barrier gate system can be connected with It can be connected to many readers, including facial recognition, RFID, and fingerprint scanners etc. Its motherbroad has a fire protection port that can receive signals from the fire protection equipment, and when a fire alarm or blackout is detected, the gate barrier will automatically open.



AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors 2

AG-PX36121802 Pedestrian Turnstile Turnstile Security Doors 3

Customization Available


In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
