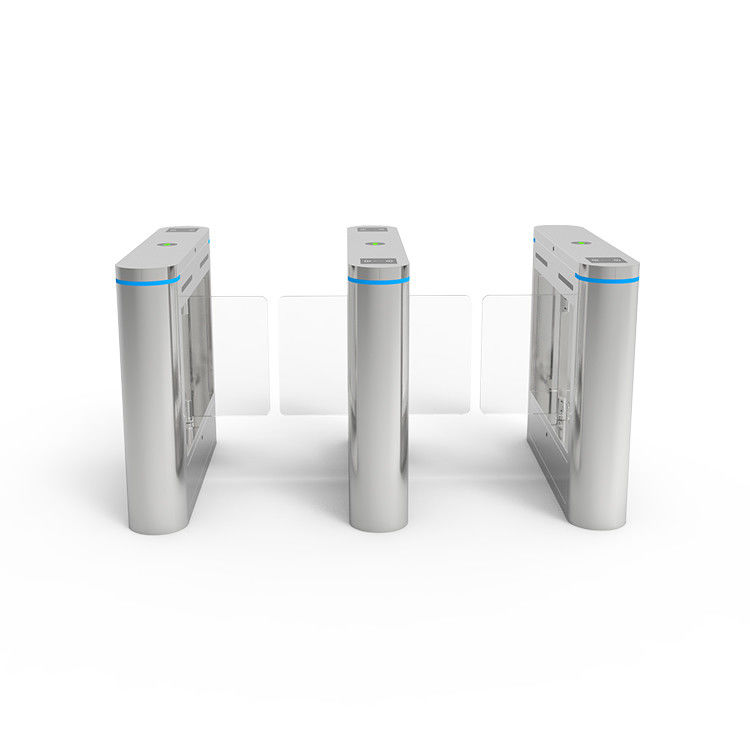

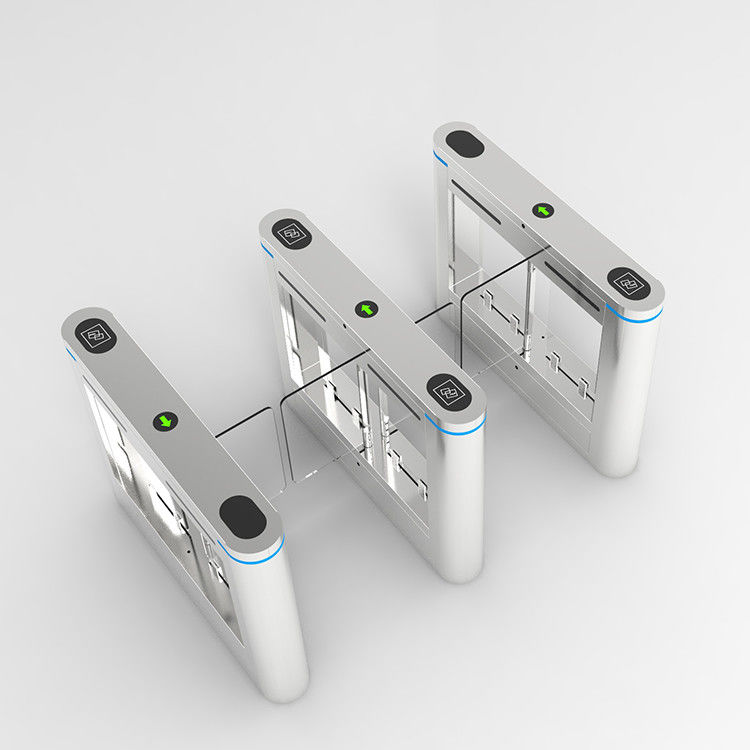

AG-PX36121802 Swing Gate Turnstile With Indication Led
AG-PX36121802 is a sophisticated access control system designed to regulate the flow of people through secured areas such as airports, subway stations, banks, and government buildings. It is an effective tool for preventing unauthorized access, reducing the risk of theft, and enhancing overall security measures. Unlike traditional mechanical turnstiles, optical turnstiles use non-contact sensors to detect and authenticate the identity of individuals. They are capable of recognizing ID cards, biometric data such as fingerprints or facial recognition, and barcodes, allowing only authorized personnel to gain access. With improved accuracy, speed, and convenience, optical turnstiles provide an advanced access control solution that has become increasingly popular in modern security management.
Please find product video in youtube link: https://youtu.be/mouvibNBcUM
Specification
| Specification | |
| Product Size | 1200*185*980mm |
| Material | SUS 304 stainless steel |
| Thickness | 1.2/1.5mm+1.0mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1, When this swing barrier gate is turned on, it performs a fault self-check and sounds a warning siren if it finds any problems. When the electricity is turned off and on, the turnstile will automatically open and close.
2, Control signal or button or remote control of the peripherals is available to achieve control accessing in single direction/bi direction.
3, Pass Authorization Rule: After visitor passes through the swing turnstile gate, the turstile arm automatically returns to its original position. If no access is made within the specified time, the system will cancel the passing authority.
4, The gate is equipped with high brightness LED accessing indicator
5, This swing barrier gate turnstile has audible and visual alarm. When the gate is in the standby state, the LED is blue; when people pass through the gate, it is green; and when people try to enter the gate passage without permission, the LED turns red and the buzzer in the gate beeps to alert people to the authorization violation.
6, The turnstile gate has a "Anti-Collision" feature that prevents damage from collisions by stopping the driving motor if something strikes the gate too hard.
7, The swing barrier gate system can be connected with It can be connected to many readers, including facial recognition, RFID, and fingerprint scanners etc. Its motherbroad has a fire protection port that can receive signals from the fire protection equipment, and when a fire alarm or blackout is detected, the gate barrier will automatically open.
Project
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
