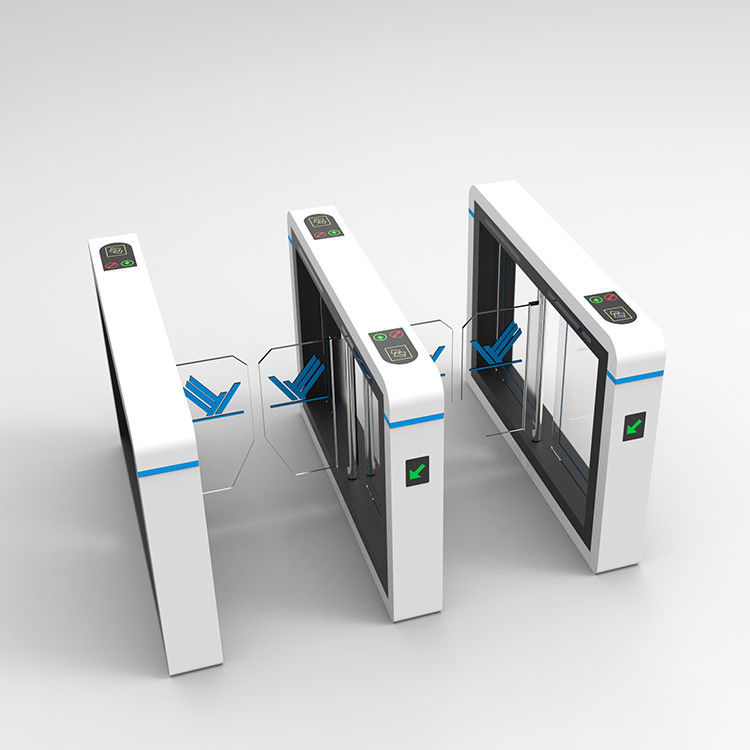

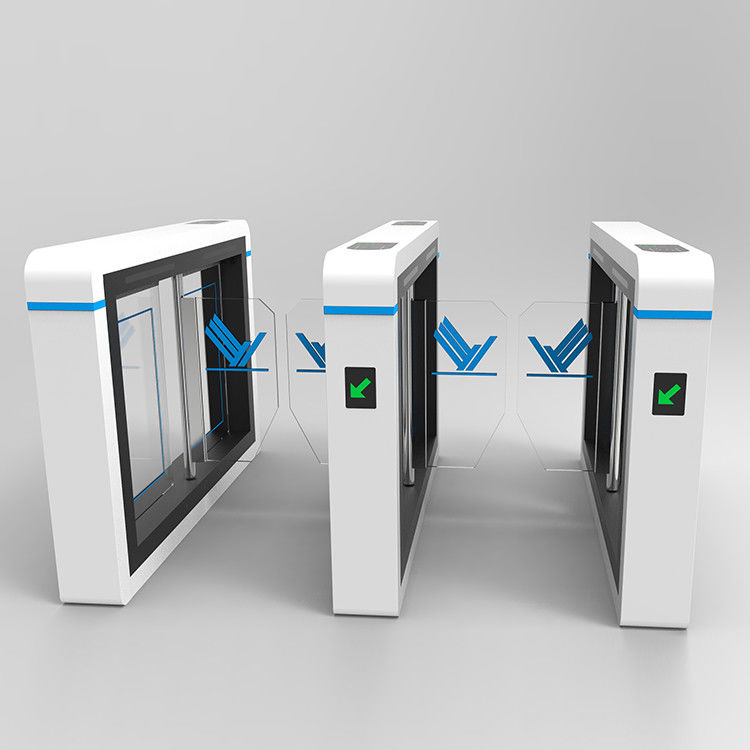

Office Barrier Gate Turnstile 25p/M-30p/m Card Access Turnstile

Office Barrier Gate Turnstile 25p/M-30p/m Card Access Turnstile

Office Barrier Gate Turnstile

25p/M Card Access Turnstile

30p/M Card Access Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Swing Barrier Gate Turstile
Swing Barrier
Single Core 38kg/dual Core 48 Kg
Driving Voltage:
DC24V 6.25A
Brushless DC Motor
Payment & Shipping Terms
Product Description

AG-HX35141802 Ticketing Turnstile For Amusement Park Access Control Turnstile

AG-HX35141802 Ticketing Turnstile Access Control - the ideal solution for managing crowds and securing access in commercial and public spaces. This turnstile offers a reliable and efficient way to control the flow of people in high-traffic areas.

The ticketing turnstile features a sleek and modern design that enhances the aesthetics of any environment. Its robust structure is made of high-quality materials that ensure it can withstand heavy usage, making it an ideal solution for busy areas such as stadiums, amusement parks, and transportation hubs.

This turnstile access control system offers multiple ticketing options, including smart cards, QR codes, and RFID wristbands, providing a flexible and convenient way to control access. It also allows event organizers to monitor the number of people entering and exiting an area in real-time, thus promoting safety and security.

Beyond its efficiency in crowd management, the turnstile access control system comes with various customizable features, including audio-visual alarms that trigger upon unauthorized entry, and optional biometric face recognition technology.

The turnstile access control not only provides for a secure and organized passage, but it also enhances customer experience by making entry and exit at events more efficient and convenient. Make an informed choice today and invest in the turnstile access control for an improved crowd management solution for your business or public space.


Office Barrier Gate Turnstile 25p/M-30p/m Card Access Turnstile 0



Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




Office Barrier Gate Turnstile 25p/M-30p/m Card Access Turnstile 1


1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

Office Barrier Gate Turnstile 25p/M-30p/m Card Access Turnstile 2



Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
