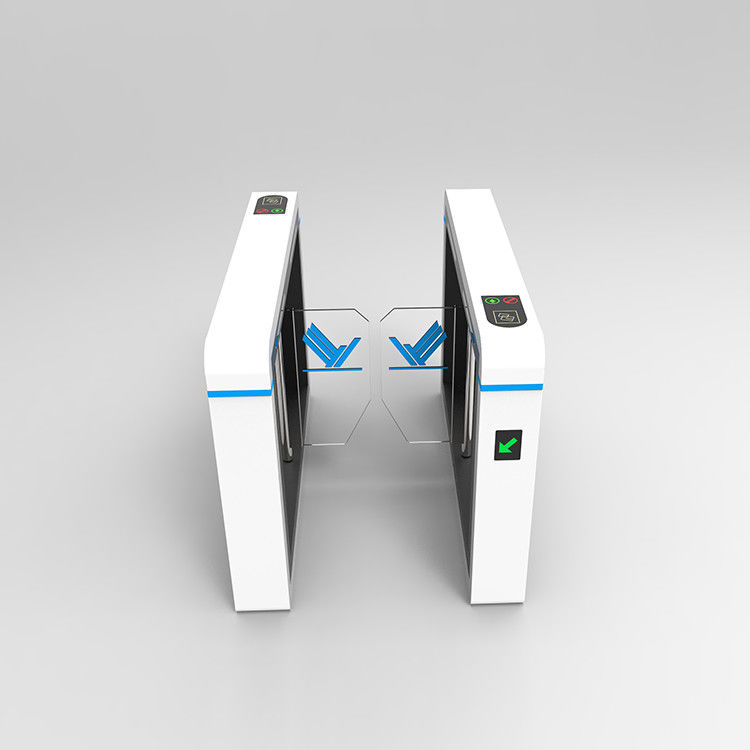

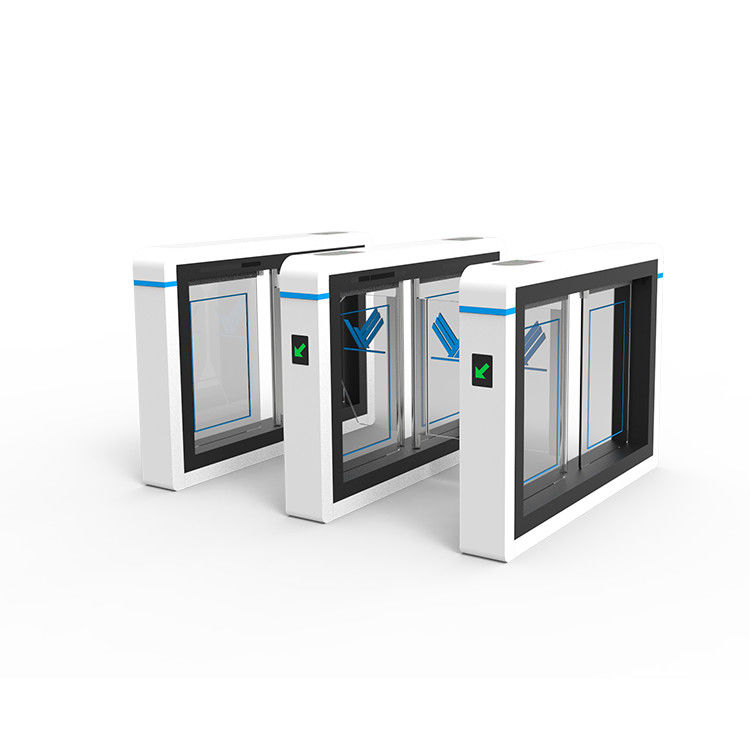

AG-HX35141802 Turnstile Works with Rfid Reader SPCC Turnstile Gate For School
HPT AG-HX35141802 turnsitle- Turnstile Gate for School, the perfect solution for efficiently and safely managing student traffic flow in your school. Designed with a sturdy and durable stainless steel frame, this turnstile gate is built to last and withstand heavy use.
Equipped with bi-directional control and automatic locking features, the Turnstile Gate ensures consistent traffic flow and prevents unauthorized access from entering the school premises. The gate's smooth and silent operation also minimizes the noise disruption and distractions for students and staff.
This turnstile gate is incredibly easy to install and operate, making it ideal for schools of all sizes. Its compact size and sleek design also ensure that it does not take up a lot of space in busy areas, providing ample room for students to move freely.
Overall, the Turnstile Gate for School is an excellent investment that delivers reliability, safety, and convenience for busy school administrators, teachers, and students. Invest in this turnstile gate today and experience secure and efficient traffic flow management in your school.
Specification
| Specification | |
| Product Size | 1400*180*1000mm |
| Material | SPCC |
| Thickness | 1.2mm |
| Passage Direction | single directional/Bi-directional |
| Passage Width | 600mm (≤800mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Customization Available
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
