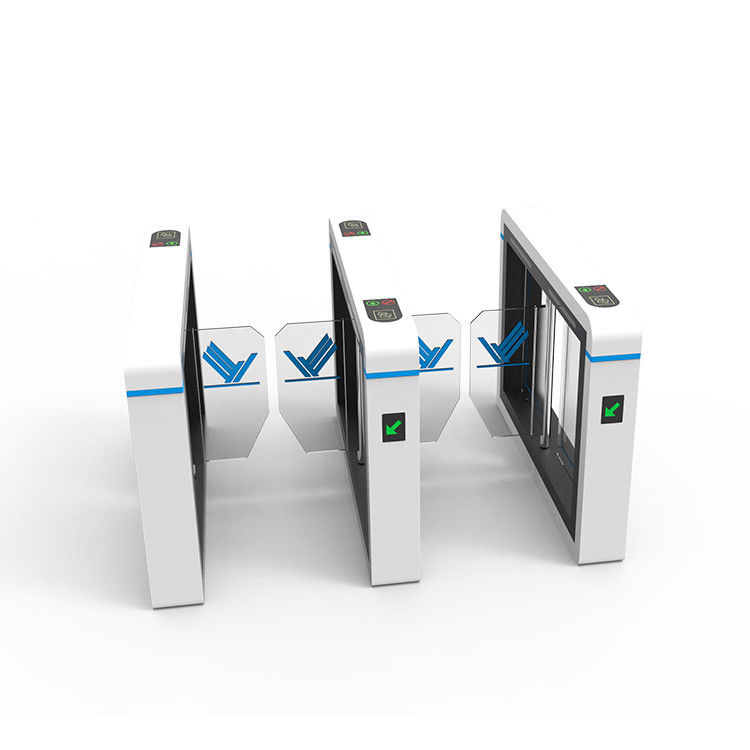

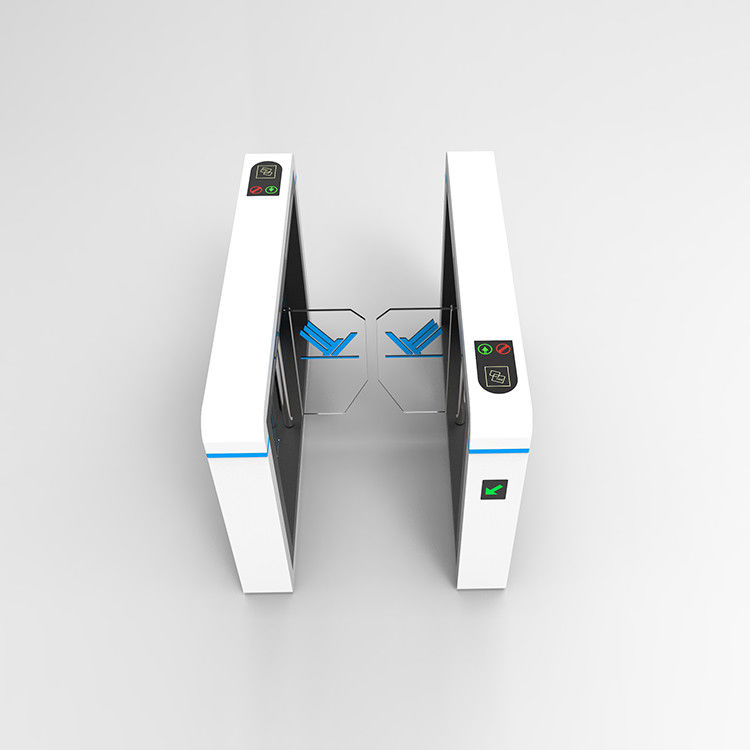

AG-HX35141802 Turnstile Equipment Compatible With QR Readers Plexiglass Turnstile
HPT AG-HX35141802 turnstile is an innovative security solution that provides reliable access control while maintaining a sleek and modern design. This turnstile is constructed using high-quality plexiglass materials, which allows for enhanced visibility and increased aesthetic appeal.
Designed to prevent unauthorized access or entry, the swing barrier turnstile provides a robust security solution suitable for various environments, including corporate offices, government buildings, airports, and sports venues. Its robust design ensures durability while effectively controlling pedestrian traffic.
Equipped with advanced electronic access control systems, this turnstile allows for efficient and secure access control. It is easy to integrate with various security systems, including card readers, facial recognition systems, and biometric systems.
The turnstile provides seamless pedestrian flow with high throughput capacity, allowing for the smooth movement of large crowds. It is an ideal solution for areas with a high volume of foot traffic.
With its cutting-edge features, the turnstile is a cost-effective and reliable solution for your access control needs. It's the perfect combination of innovative design, high-end technology, and security features, suitable for modern security requirements.
Specification
| Specification | |
| Product Size | 1400*180*1000mm |
| Material | SPCC |
| Thickness | 1.2mm |
| Passage Direction | single directional/Bi-directional |
| Passage Width | 600mm (≤800mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Customization Available
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
