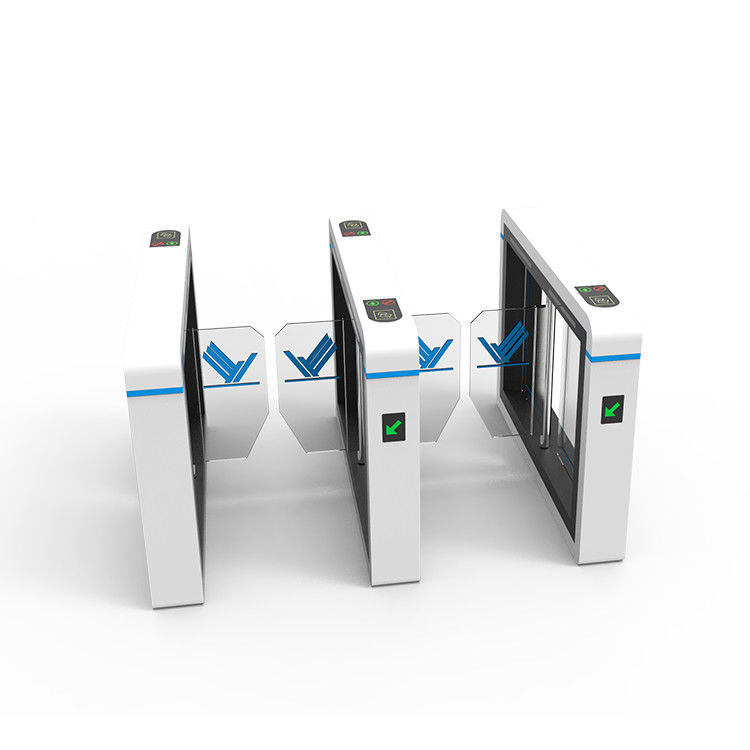

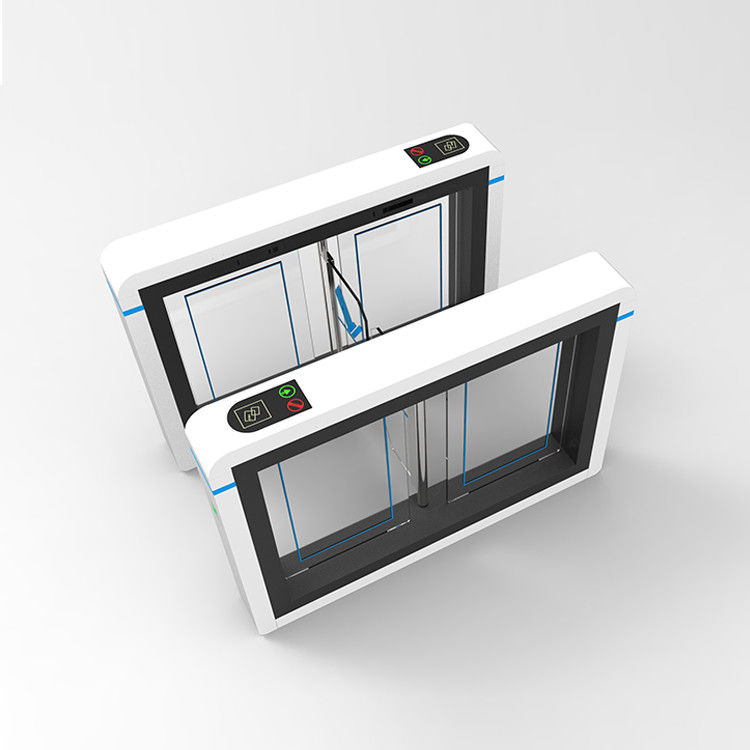

AG-HX35141802 Electronic Turnstile Gates SPECC Optical Barrier Turnstiles
HPT AG-HX35141802 electronic turnstile is the perfect solution for efficient access control in high-traffic areas such as public transit stations, stadiums, and theme parks. This sleek and durable unit offers a reliable and secure way to regulate pedestrian flow and prevent unauthorized access.
Featuring advanced biometric identification technology, the turnstile offers a variety of access control options including fingerprint scanning, facial recognition, and RFID card reading. Once authorized, the turnstile smoothly and quickly rotates, allowing users to proceed through.
The unit is made of high-quality stainless steel and features a user-friendly and intuitive interface. It is also equipped with a customizable sound and light system that alerts users when the turnstile is locked or unlocked.
The turnstile gate is easy to maintain and can be customized to fit any aesthetic with a variety of color options available. It is also energy-efficient, with low power consumption and an automatic power-saving mode when not in use.
Overall, the turnstile offers a reliable and secure entrance control solution designed to enhance the overall safety and convenience of any high-traffic area.
Specification
| Specification | |
| Product Size | 1400*180*1000mm |
| Material | SPCC |
| Thickness | 1.2mm |
| Passage Direction | single directional/Bi-directional |
| Passage Width | 600mm (≤800mm optional) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Customization Available
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
