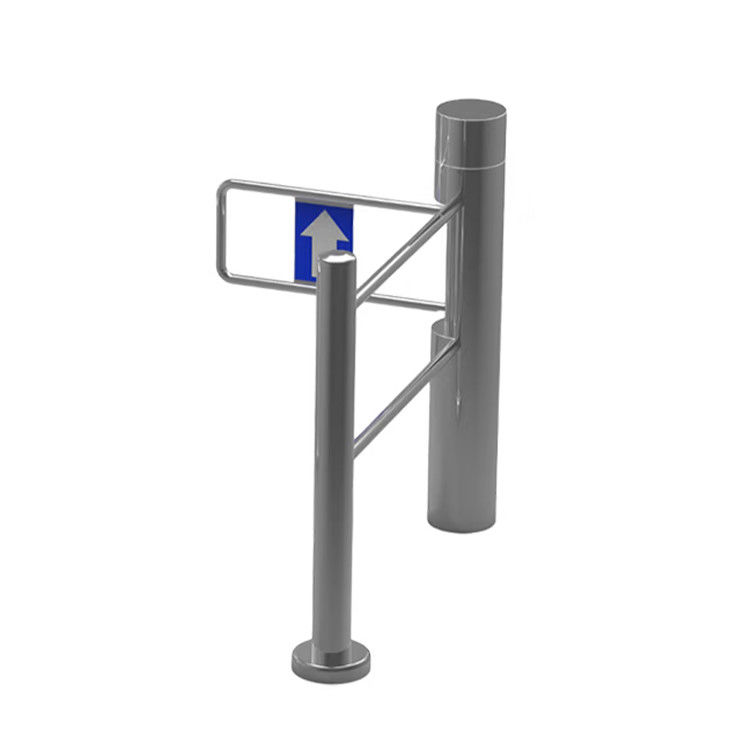

SPCC Supermarket Entrance Gate Single Directional / Bi-Directional

SPCC Supermarket Entrance Gate Single Directional / Bi-Directional

SPCC Supermarket Entrance Gate

ISO Supermarket Entry Gates

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Swing Barrier Gate Turstile
Swing Barrier
Single Core 38kg/dual Core 48 Kg
Back Up Power:
Payment & Shipping Terms
Product Description

AG-HX35141802 Stadium Turnstile Gate Optical Barrier Turnstiles


HPT AG-HX35141802 Optical Barrier Turnstile is a high-tech security solution that is designed to control access to buildings and other restricted sites. It consists of two turnstile arms that rotate in opposite directions, which enables the entry of only one person at a time. The turnstile arms are made of acrylic or tempered glass, which is aesthetically pleasing and easy to clean.

The Optical Barrier Turnstile gate employs advanced optical sensors that are capable of detecting the passage of people accurately. The sensors are integrated with a microprocessor that controls the operation of the turnstile, ensuring a smooth and secure passage. In case of unauthorized access, the turnstile will sound an alarm, and the arms will remain locked until the security staff arrives.

This state-of-the-art security solution is ideal for use in banks, airports, corporate buildings, and other high-security areas. It provides reliable access control, reduces the risk of tailgating, and helps to prevent unauthorized access. Additionally, the optical barrier turnstile is modular, which means it can be customized to meet the specific needs of different facilities.

This product is easy to install, operate, and maintain, making it an excellent investment for any organization that values security and safety. It is built to last and is designed to withstand harsh weather and heavy usage. With its sleek and modern design, the turnsitle adds a touch of sophistication to any facility while providing exceptional security.

SPCC Supermarket Entrance Gate Single Directional / Bi-Directional 0

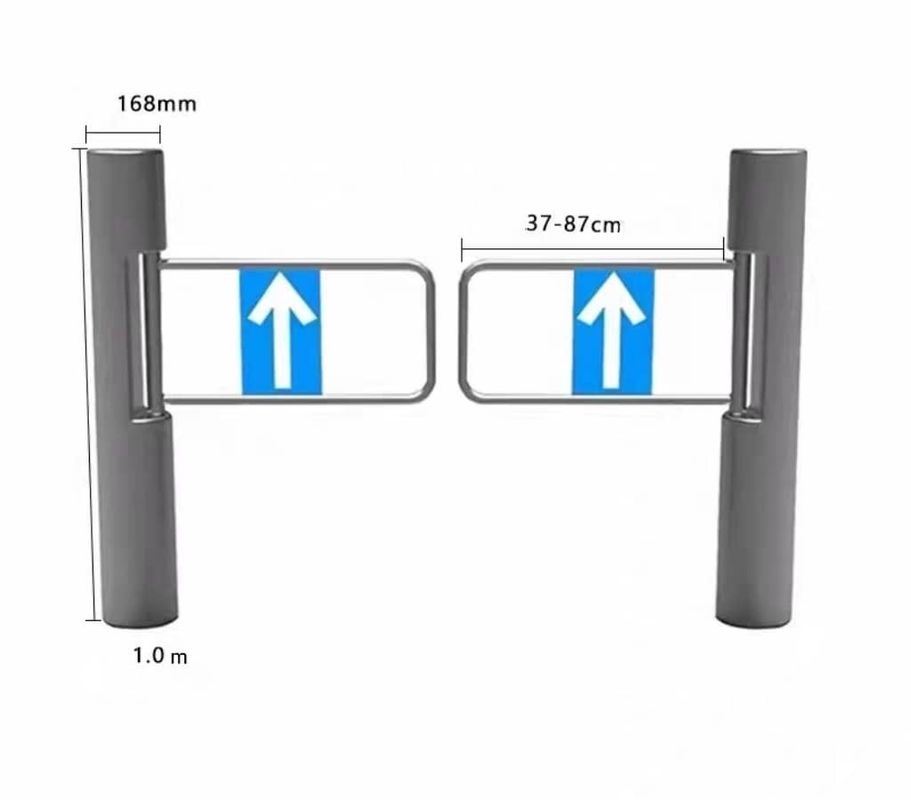

Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




SPCC Supermarket Entrance Gate Single Directional / Bi-Directional 1


1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

SPCC Supermarket Entrance Gate Single Directional / Bi-Directional 2



Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
