AG-PX78241802 Swing Barrier Turnstile Compact Design RS485/TCP/IP Communication Interface

AG-PX78241802 Swing Barrier Turnstile Compact Design RS485/TCP/IP Communication Interface

TCP Swing Barrier Turnstile

RS485 Swing Barrier Turnstile

Compact Swing Turnstile Gate

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Access Control System:
Arm Material:
Stainless Steel
Communication Interface:
Stainless Steel
Passage Width:
<1640 Mm
Swing Barrier Turnstile
Working Temperature:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton and Woode Case
Delivery Time
5-8 working days
Product Description

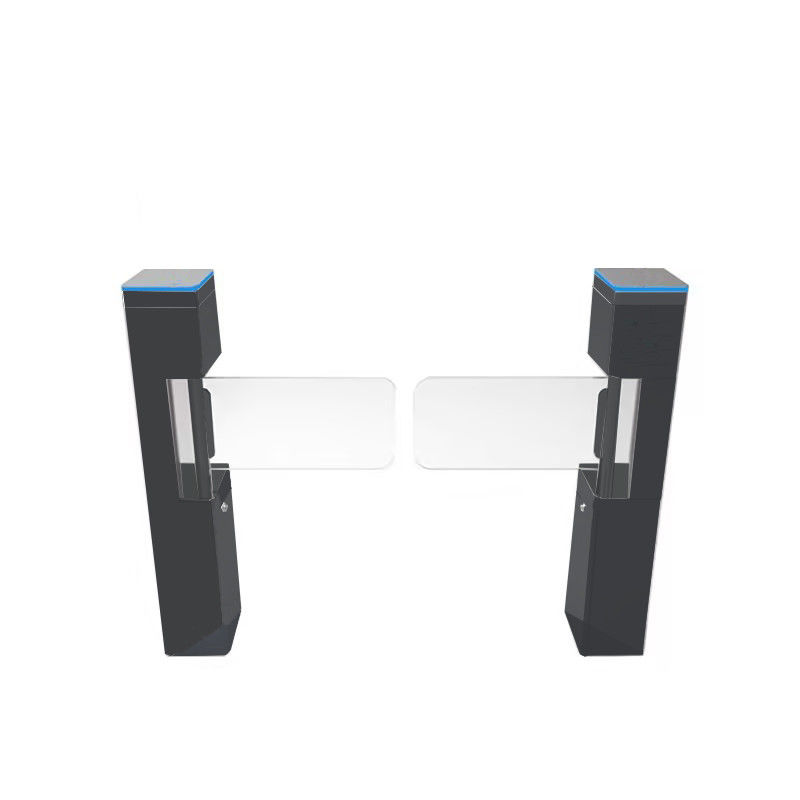

AG-PX78241802 Swing Barrier Gate: Compact Design, Smooth Swing Motion, Easy Integration

Product Description

HPT AG-PX78241802 supermarket swing barriers are physical barriers used to control the flow of foot traffic in a retail space. Designed specifically for supermarkets, these swing barriers are typically made of durable materials, such as stainless steel or aluminum, and are able to withstand daily wear and tear. They are operated by a spring-loaded mechanism that allows the barriers to swing in one direction while preventing them from swinging in the opposite direction. This ensures that shoppers can move smoothly through the supermarke aisles while also preventing them from accidentally backing into other customers or bumping into displays. Supermarket swing barriers come in various sizes and configurations to suit different store layouts and requirements. They are an essential component of crowd control and safety in busy supermarkets, providing an effective way to manage traffic and ensure a pleasant shopping experience for all.


AG-PX78241802 Swing Barrier Turnstile Compact Design RS485/TCP/IP Communication Interface 0


Product Size 240*180*1020
Material SPCC
Lane Width <1640mm
Passage Direction Single directional/Bi-directional
Power Input AC110~220V±10%
Throughput Rate 25~40 p/m
Open to close




1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.


2, The control panel of the swing barrier gate allows you to configure its operating mode.


3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.


4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.


5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated


6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.


7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.


8, There are two types of flow controls -- single direction access and dual direction access can be applied


9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.


10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.



AG-PX78241802 Swing Barrier Turnstile Compact Design RS485/TCP/IP Communication Interface 1


Customizing is welcomed

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
