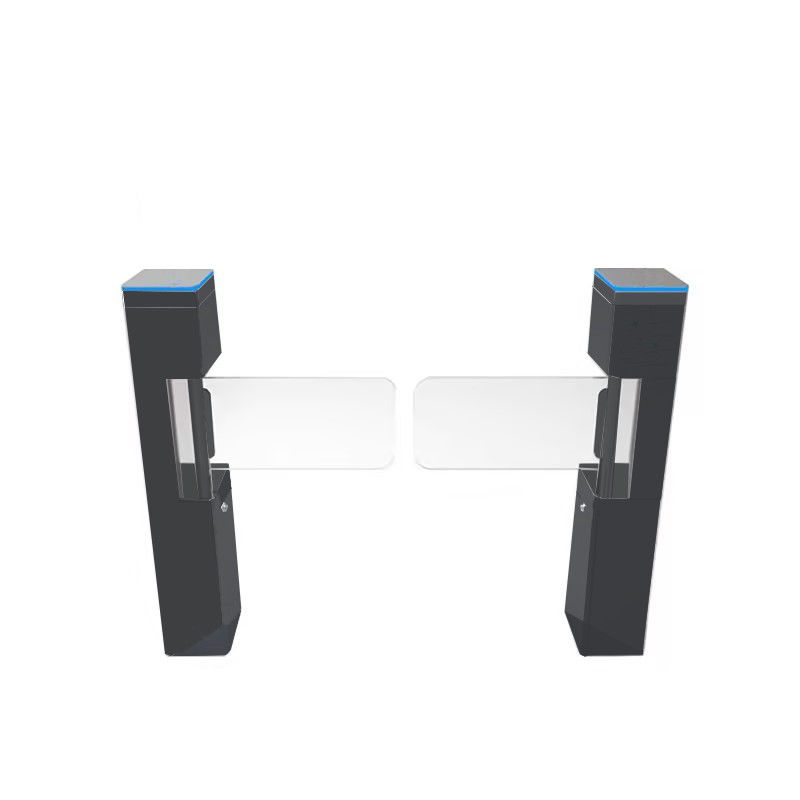

AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile

AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile

600mm Swing Barrier Gate

Durable Swing Barrier Turnstile

Outdoor Swing Barrier Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Size:
SUS 304 Stainless Steel
Top: 1.2mm + Body 1.0mm
Pass Width:
Passage Direction:
Single Directional/Bi-directional
4 Pairs Of Active Infrared Intrusion Detector
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Payment Terms
Western Union, T/T, MoneyGram
Product Description

AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile


AG-PX78453302-B  Vertical Swing Barrier Gate - the ultimate access control solution for your property. With its sleek and sophisticated design, the Vertical Swing Barrier Gate offers reliable and secure access control for pedestrian traffic while ensuring a smooth flow of people.

The simple yet advanced technology employed in the barrier gate ensures durability and a long lifespan, while the sleek design blends seamlessly with the aesthetics of any property.

The vertical swing barrier gate is perfect for a wide variety of applications, including office buildings, government facilities, shopping malls, residential areas, industrial parks, hospitals, and many more. It offers efficient access control and security and is easy to operate, making it a top choice for property owners and managers.

Our barrier gate is manufactured using top-of-the-line materials and complies with all necessary safety standards, ensuring the ultimate protection of both users and property. It is easily installed and comes with a variety of access control options, including RFID card readers, fingerprint scanners, and automatic number plate recognition systems.

With the Vertical Swing Barrier Gate, you can experience the highest level of security and reliability while enjoying the convenience and ease of use that comes with modern technology. Choose our barrier gate today and experience a safer and more efficient way of controlling access to your property.

AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile 0



Product Size 450*330*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Pass Width 600mm
Passage Direction Single directional/Bi-directional
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.


2, The control panel of the swing barrier gate allows you to configure its operating mode.


3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.


4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.


5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).


6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.


7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.


8, There are two types of flow controls -- single direction access and dual direction access can be applied


9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.


10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.



AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile 1

Customizing is welcomed

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
