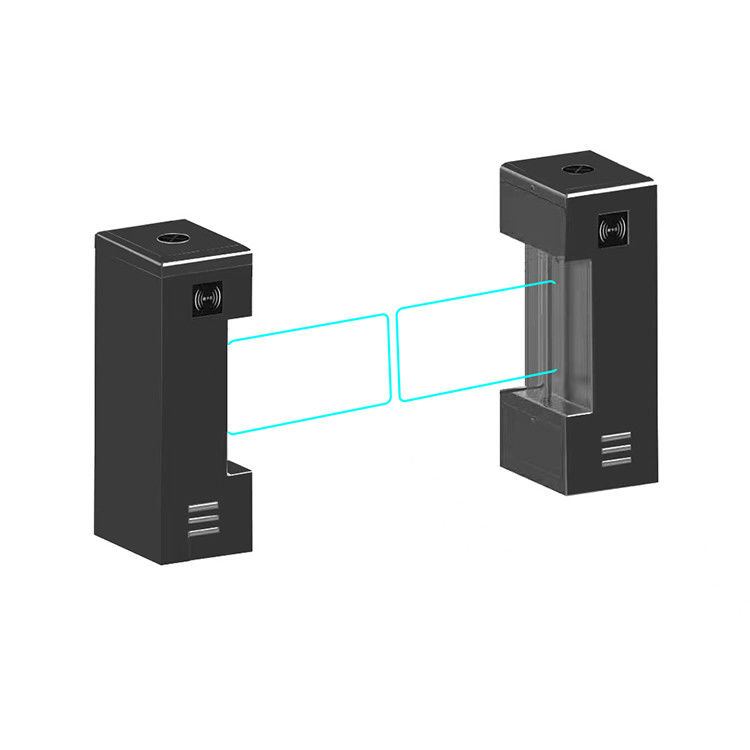

AG-PX78453302-B Swing Turnstile Gate Durable SUS 304 Stainless Steel 600mm Width

AG-PX78453302-B Swing Turnstile Gate Durable SUS 304 Stainless Steel 600mm Width

Stainless Steel Swing Turnstile Gate

SUS 304 Swing Turnstile Gate

600mm Width Swing Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Size:
SUS 304 Stainless Steel
Top: 1.2mm + Body 1.0mm
Pass Width:
Passage Direction:
Single Directional/Bi-directional
4 Pairs Of Active Infrared Intrusion Detector
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Payment Terms
Western Union, T/T, MoneyGram
Product Description

AG-PX78453302-B Vertical Swing Barrier Gate Durable Outdoor Swing Barrier Turnstile

AG-PX78453302-B sleek and durable vertical swing barrier, designed to provide reliable access control for any facility. With its robust construction and sleek design, this barrier is ideal for managing high-traffic areas such as parking lots, office buildings, and public venues.
Featuring a unique vertical swing arm mechanism, this barrier offers a fast and responsive barrier operation, ensuring efficient entry and exit of vehicles. The arm is made of high-quality materials, which makes it resistant to all types of environmental factors, including heavy wind, rain, and heat.
Designed with safety in mind, this barrier is equipped with safety sensors that detect any obstructions and prevent the arm from lowering accidentally. The barrier also features a fail-safe mechanism that activates in case of a power outage, ensuring uninterrupted operation.
The vertical swing barrier is easy to install and can be customized to fit your specific requirements. It is available in a range of colors and finishes to match your site's aesthetic.
Trust this advanced access control solution to ensure your facility is safe, secure, and efficient.
AG-PX78453302-B Swing Turnstile Gate Durable SUS 304 Stainless Steel 600mm Width 0

Product Size 450*330*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Pass Width 600mm
Passage Direction Single directional/Bi-directional
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.
2, The control panel of the swing barrier gate allows you to configure its operating mode.
3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.
4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.
5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).
6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.
7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.
8, There are two types of flow controls -- single direction access and dual direction access can be applied
9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.
10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.
AG-PX78453302-B Swing Turnstile Gate Durable SUS 304 Stainless Steel 600mm Width 1
Customizing is welcomed
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
