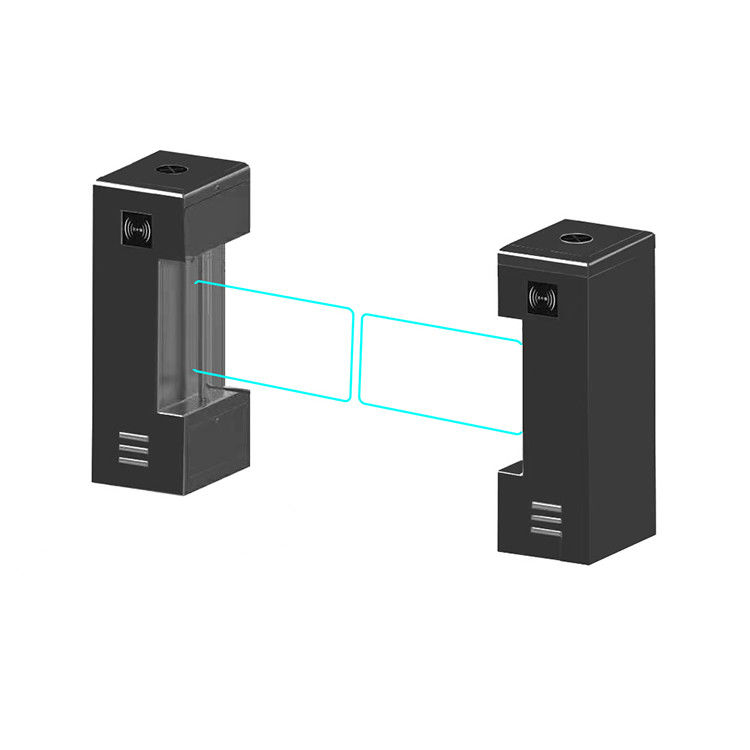

Vertical Swing Turnstile Gate Single Directional / Bi Directional For Controlling Access

Vertical Swing Turnstile Gate Single Directional / Bi Directional For Controlling Access

Bi Directional Swing Turnstile Gate

Single Directional Swing Turnstile Gate

Controlling Access Swing Turnstile Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Size:
SUS 304 Stainless Steel
Top: 1.2mm + Body 1.0mm
Pass Width:
Passage Direction:
Single Directional/Bi-directional
4 Pairs Of Active Infrared Intrusion Detector
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Payment Terms
Western Union, T/T, MoneyGram
Product Description

AG-PX78453302-B Access Control Vertical Swing Barrier Turnstile For Small Entrance
AG-PX78453302-B Small Vertical Swing Barrier – an innovative solution for controlling pedestrian access in restricted areas. This state-of-the-art barrier is designed to provide secure access control in areas that require high levels of security and access management.
Unlike conventional barriers, the Small Vertical Swing Barrier is compact and efficient, occupying minimal space while still providing robust security measures. The sleek design of the barrier provides a modern and sophisticated touch while effectively managing pedestrian traffic flow.
With its durable construction and advanced mechanism, the Small Vertical Swing Barrier guarantees smooth and reliable operation, ensuring hassle-free management of pedestrian access in high-security areas. The barrier is also equipped with advanced sensors, which detect and respond to unauthorized access attempts, further enhancing overall security.
Installation of this innovative barrier is simple, making it an ideal choice for a wide range of environments such as banks, airports, government buildings, and other high-security areas. The Small Vertical Swing Barrier offers the perfect solution for those who prioritize style, practicality, and security.
Experience a superior level of access control with the Small Vertical Swing Barrier – a reliable and effective solution for securing pedestrian traffic in restricted areas.

Vertical Swing Turnstile Gate Single Directional / Bi Directional For Controlling Access 0

Product Size450*330*980mm
MaterialSUS 304 stainless steel
Pass Width600mm
Passage DirectionSingle directional/Bi-directional
Sensor4 pairs of active infrared intrusion detector
Throughput Rate30p/m
Reaction Time0.2S
Driving VoltageDC24V 6.25A
Working Temperature·-20~+70
MotorBrushless DC Motor
MechanismBrushless Anti-collision Integrated Mechanism
Back up powerSupercapacitor(12V/3A)
IndicationLED direction indication
Acoustic AlarmBuzzer Alarm
LEDTriple Color LED

1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.
2, The control panel of the swing barrier gate allows you to configure its operating mode.
3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.
4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.
5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).
6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.
7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.
8, There are two types of flow controls -- single direction access and dual direction access can be applied
9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.
10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.
Vertical Swing Turnstile Gate Single Directional / Bi Directional For Controlling Access 1
Customizing is welcomed
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
