Optical Swing Turnstile Gate RS232 / Dry Contact For Automated Access Control

Optical Swing Turnstile Gate RS232 / Dry Contact For Automated Access Control

Optical Swing Turnstile Gate

Dry Contact Swing Turnstile gate

RS232 Swing Turnstile gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Optical Swing Barrier Gate
1 Year
Swing Barrier
Power Supply:
RS232,Dry Contact
Passing Speed:
35 Person /min
Payment & Shipping Terms
Product Description

SPCC Swing Barrier Turnstile For Automated Access Control

AG-TX38152502 swing barrier gate – a modern and efficient solution for pedestrian access control! This product is perfect for commercial and industrial settings where security is a top priority. The swing barrier gate offers a sleek and stylish design that seamlessly integrates with any building’s aesthetic.

Not only does the swing barrier gate provide a physical barrier to prevent unauthorized access, but it also includes features that enhance its functionality. These features include integrated sensors that detect the presence of individuals and provide automatic opening and closing, ensuring smooth and efficient pedestrian flow. Furthermore, the swing barrier gate can be integrated with access control systems such as key cards or biometric scanners to provide an additional layer of security.

Installation is quick and easy, requiring minimal disruption to pre-existing structures. The swing barrier gate is also low maintenance, with durable materials that require little upkeep.

With the swing barrier gate, you can ensure the safety and security of your premises while providing an effortless and seamless experience for your visitors and employees. Choose the swing barrier gate for your access control needs, and enjoy the peace of mind that comes with investing in a reliable, high-quality product.

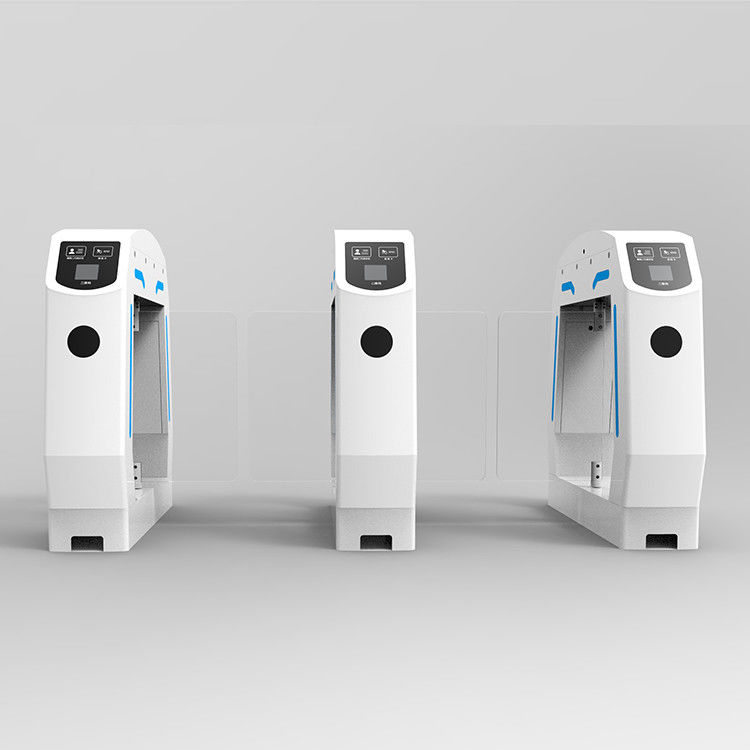

Optical Swing Turnstile Gate RS232 / Dry Contact For Automated Access Control 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



1. This swing barrier gate performs a fault self-check as soon as it is activated, and if any problems are found, a warning siren sounds. When the electricity is turned on and off, the turnstile opens and closes on its own.
2, Peripherals have control signals like buttons, remote controllers or readers which permit control access can work with the gate.
3, Turnstile Arm Return to Initial Position: After a visitor passes through the swing turnstile gate, the turnstile arm automatically returns to its initial position. If no access is made within the specified period, the passing authority will be removed by the system.
4, A high-luminance LED accessibility indicator is present on the gate.

5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is blue when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with  a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Optical Swing Turnstile Gate RS232 / Dry Contact For Automated Access Control 1


Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
